072 E (116-072E100) - Cub Cadet Walk-Behind Mower Engine (1996) Carburetor And Brake Assemblies Parts Diagram

Walk-Behind Mower Engine

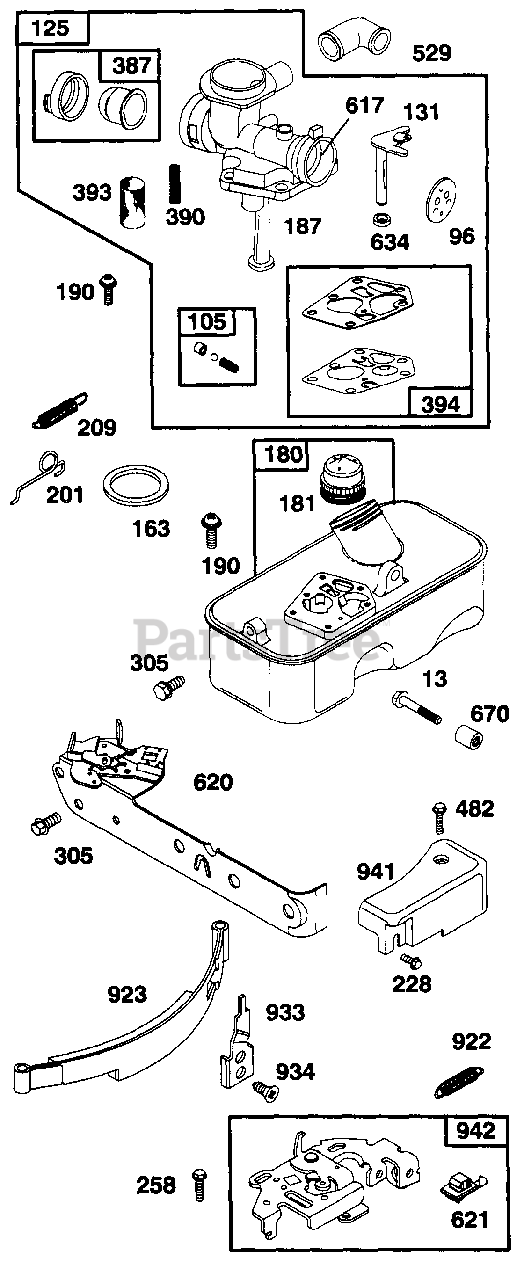

Carburetor And Brake Assemblies Parts Diagram

  • Title
13

Cub Cadet BS-93111

Screw-Hex. Head
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

96

Cub Cadet BS-224412

Valve-Throttle
(Superseded to BS-691190)

$7.49

$

Usually ships in 2-12 days

0

105

Cub Cadet BS-494409

Seat-Needle Valve

$

$

Not available

125

Cub Cadet BS-494775

Carburetor

$52.99

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-281047

Shaft-Throttle

$

$

Not available

163

Cub Cadet BS-271139

Gasket-Air Cleaner

Note: Included in Gasket Set - P/N BS-298989

$

$

Not available

180

$79.99

$

In Stock, only 4 left!

0

181

Cub Cadet BS-493982

Cap-Fuel Tank

$

$

Not available

187

Cub Cadet BS-496046

Pipe-Fuel
(Superseded to BS-496046S)

$8.99

$

In Stock, only 1 left!

0

190

Cub Cadet BS-93440

Screw-Sem

$

$

Not available

201

Cub Cadet BS-262753

Link-Governor

$

$

Not available

209

Cub Cadet BS-262760

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

228

Cub Cadet BS-94515

Screw-Sem

$

$

Not available

258

Cub Cadet BS-94018

Screw-Sem
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

305

Cub Cadet BS-94153

Screw-Hex. Hd.

$

$

Not available

387

Cub Cadet BS-494408

Primer Bulb Assy.
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 12

0

390

Cub Cadet BS-262764

Spring-Diaphragm
(Superseded to BS-691839)

$5.99

$

In Stock, Qty 5

0

393

Cub Cadet BS-262734

Screen-Jet

$

$

Not available

394

Cub Cadet BS-495770

Diaphragm
(Superseded to BS-795083)

$4.49

$

In Stock, Qty 20+

0

482

Cub Cadet BS-93621

Screw-Sem
(Superseded to BS-691183)

$

$

Not available

529

Cub Cadet BS-67838

Grommet-Breather
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 11

0

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

620

Cub Cadet BS-495486

Plate-Control

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Cub Cadet BS-280566

Seal-Throttle Shaft

$

$

Not available

670

Cub Cadet BS-94038

Spacer-Fuel Tank
(Superseded to BS-691631)

$5.99

$

Usually ships in 2-12 days

0

922

Cub Cadet BS-261647

Spring-Band Brake

$

$

Not available

923

Cub Cadet BS-394867

Brake Assembly-Band

$39.99

$

Usually ships in 2-12 days

0

933

Cub Cadet BS-223448

Pivot-Band Brake

$

$

Currently unavailable

934

Cub Cadet BS-94037

Screw-Fil. Hd.

$

$

Currently unavailable

941

Cub Cadet BS-281285

Cover-Linkage

$

$

Not available

942

Cub Cadet BS-493248

Bracket Assy.-Lever

$10.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

Note: Includes item 163

$21.99

$

Usually ships in 2-12 days

0
