072 E (114-072E100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 3.75 HP Carburetor & Fuel Tank Parts Diagram

Walk-Behind Mower Engine

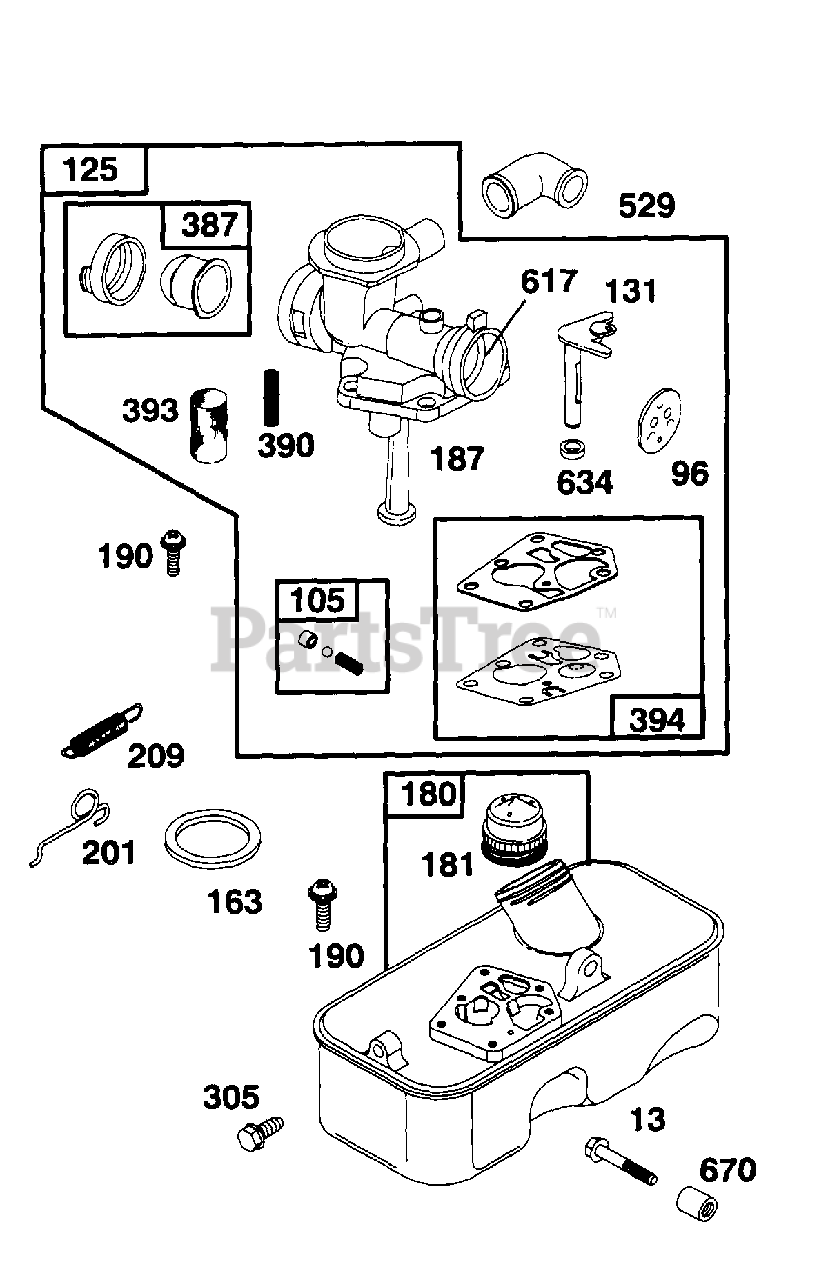

B&S 3.75 HP Carburetor & Fuel Tank Parts Diagram

  • Title
13

Cub Cadet BS-93111

Screw-Hex. Head
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

96

Cub Cadet BS-224412

Valve-Throttle
(Superseded to BS-691190)

$7.49

$

Usually ships in 2-12 days

0

105

Cub Cadet BS-494409

Seat-Needle Valve

$

$

Not available

125

Cub Cadet BS-494775

Carburetor

$52.99

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-281047

Shaft-Throttle

$

$

Not available

163

Cub Cadet BS-271139

Gasket-Air Cleaner

$

$

Not available

180

$79.99

$

In Stock, only 4 left!

0

181

Cub Cadet BS-493982

Cap-Fuel Tank

$

$

Not available

187

Cub Cadet BS-496046

Pipe-Fuel
(Superseded to BS-496046S)

$8.99

$

In Stock, only 1 left!

0

190

Cub Cadet BS-93440

Screw-Sem

$

$

Not available

201

Cub Cadet BS-262753

Link-Governor

$

$

Not available

209

Cub Cadet BS-262760

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

305

Cub Cadet BS-94153

Screw-Hex. Hd.

$

$

Not available

387

Cub Cadet BS-494408

Primer Bulb Assy.
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 12

0

390

Cub Cadet BS-262764

Spring-Diaphragm
(Superseded to BS-691839)

$5.99

$

In Stock, Qty 5

0

393

Cub Cadet BS-262734

Screen-Jet

$

$

Not available

394

Cub Cadet BS-495770

Diaphragm
(Superseded to BS-795083)

$4.49

$

In Stock, Qty 20+

0

529

Cub Cadet BS-67838

Grommet-Breather
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 13

0

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

634

Cub Cadet BS-280566

Seal-Throttle Shaft

$

$

Not available

670

Cub Cadet BS-94038

Spacer-Fuel Tank
(Superseded to BS-691631)

$5.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

Note: Includes Ref. 163

$21.99

$

Usually ships in 2-12 days

0
