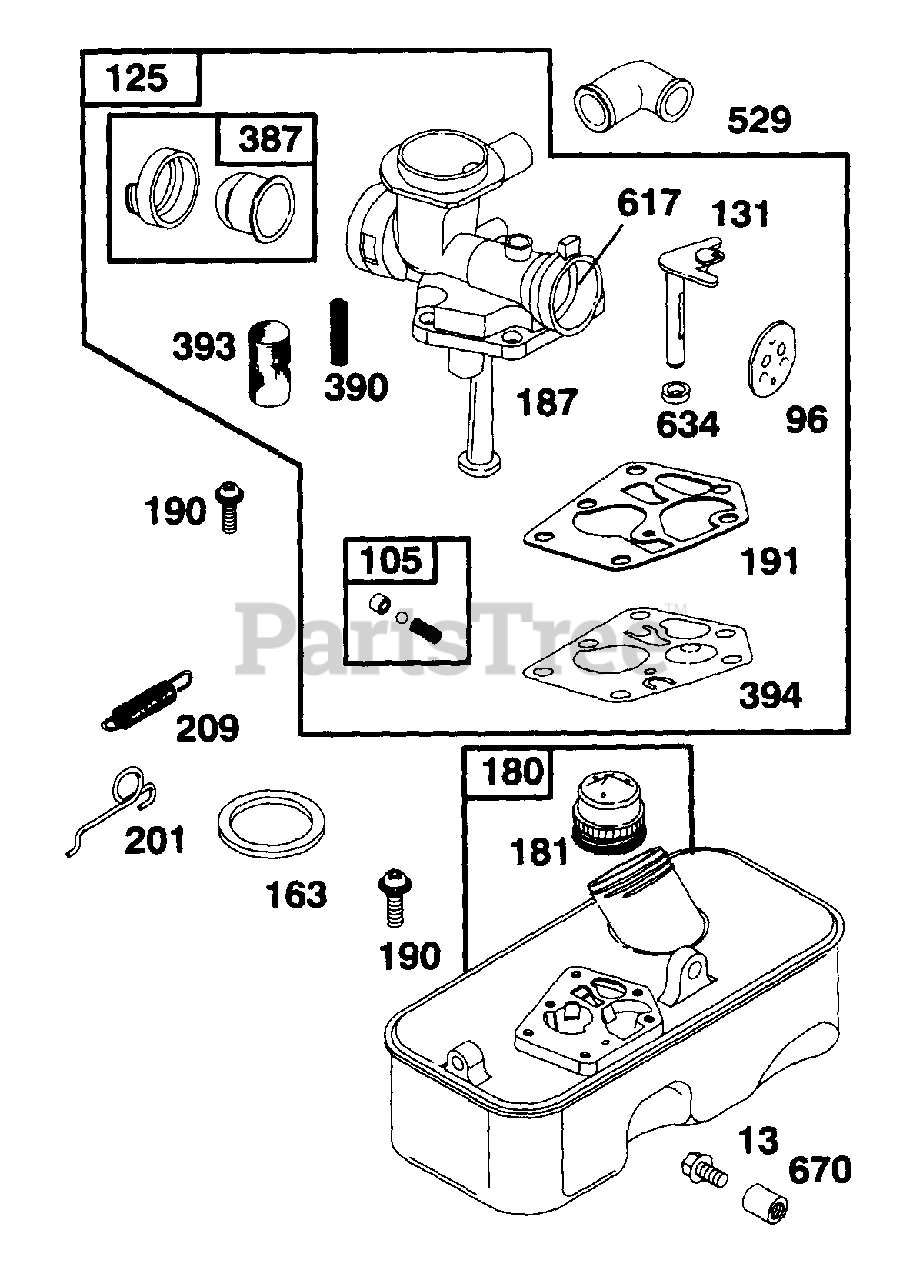

072 A (113-072A100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 3.75 HP Carburetor & Fuel Tank Ass'y Parts Diagram

Walk-Behind Mower Engine

B&S 3.75 HP Carburetor & Fuel Tank Ass'y Parts Diagram

  • Title
13

Cub Cadet BS-93111

Screw--Hex Head
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

96

Cub Cadet BS-224412

Valve--Throttle
(Superseded to BS-691190)

$7.49

$

Usually ships in 2-12 days

0

105

Cub Cadet BS-494409

Seat--Needle Valve

$

$

Not available

125

Cub Cadet BS-494775

Carburetor Assembly

$52.99

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-281047

Shaft and Lever--Throttle

$

$

Not available

163

Cub Cadet BS-271139

Gasket--Air Cleaner Mounting

$

$

Not available

180

Cub Cadet BS-494406

Tank Assembly--Fuel

$79.99

$

In Stock, only 4 left!

0

181

Cub Cadet BS-493982

Cap--Fuel Tank

$

$

Not available

187

Cub Cadet BS-493981

Pipe Assy.--Fuel Pick-up

$

$

Not available

190

Cub Cadet BS-93440

Screw--Sem

$

$

Not available

191

Cub Cadet BS-272372

Gasket--Pump
(Superseded to BS-795083)

$4.49

$

In Stock, Qty 20+

0

201

Cub Cadet BS-262753

Link--Governor

$

$

Not available

209

Cub Cadet BS-262760

Spring--Governor

$7.49

$

Usually ships in 2-12 days

0

387

Cub Cadet BS-494408

Primer Bulb Ass'y.
(Superseded to BS-694394)

$4.49

$

In Stock, Qty 12

0

390

Cub Cadet BS-262764

Spring--Diaphragm
(Superseded to BS-691839)

$5.99

$

In Stock, Qty 5

0

393

Cub Cadet BS-262734

Screen--Jet

$

$

Not available

394

Cub Cadet BS-495770

Diaphragm--Carburetor
(Superseded to BS-795083)

$4.49

$

In Stock, Qty 20+

0

529

Cub Cadet BS-67838

Grommet--Breather
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 11

0

617

Cub Cadet BS-270344

Seal--Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

634

Cub Cadet BS-280566

Seal--Throttle Shaft

$

$

Not available

670

Cub Cadet BS-94038

Spacer--Fuel Tank
(Superseded to BS-691631)

$5.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

$21.99

$

Usually ships in 2-12 days

0
