072 (117-072-100) - Cub Cadet Walk-Behind Mower (1987) Rotary Mower Parts Diagram

Walk-Behind Mower

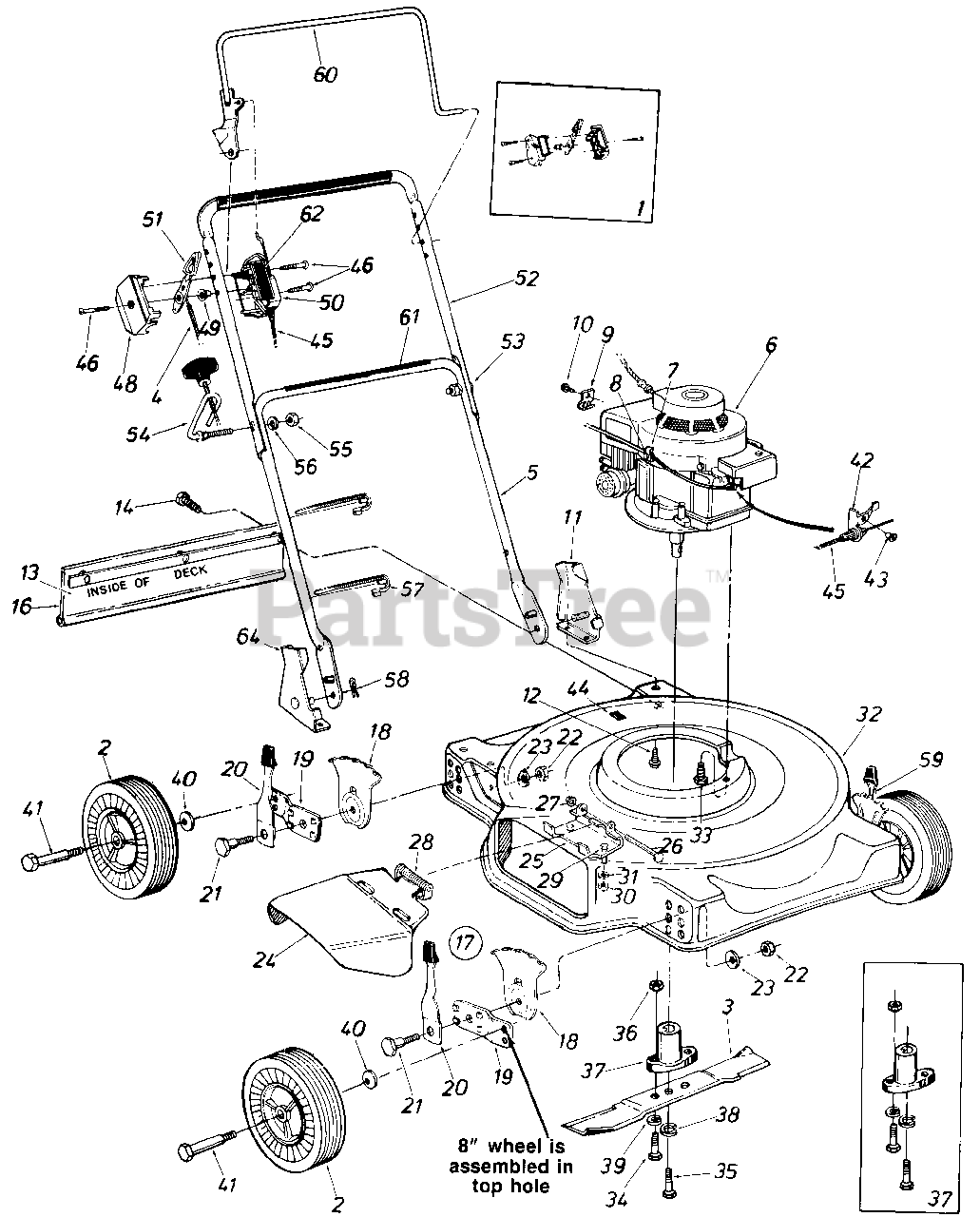

Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 753-0430

KIT-THROTTLE CONTROL

$

$

Not available

2

Cub Cadet 734-1162

WHEEL ASSY W/TIRE

$

$

Not available

3

Cub Cadet 742-0123

BLADE-20IN

$

$

Not available

4

Cub Cadet 746-0630

CABLE-THROTTLE
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 749-0373

LOWER HANDLE
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

6

Note: Engine

$

$

Not available

7

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

8

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 751-0369

CLAMP-CONDUIT

$

$

Not available

10

Cub Cadet 710-0227

SCREW-HEX WASH HD AB-TAPP #8 X .38

$4.49

$

In Stock, Qty 15

0

11

Cub Cadet 12935

BRACKET ASSY-HDLE

$

$

Not available

12

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 14846

STRIP-RETAINING

$

$

Not available

14

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0271

NUT-SEMS 1/4-20

$4.49

$

In Stock, Qty 10

0

16

Cub Cadet 731-0575

FLAP-RR
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 14578

ADJUSTER ASSY-HGT-RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

18

Cub Cadet 15261

PLATE-HGT ADJ
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

19

Cub Cadet 15262

BAR-PIVOT
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

20

Cub Cadet 14832

LEVER & KNOB ASSY
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

21

Cub Cadet 738-0507

SCREW-SHLD
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 736-0331

WASHER-BELL

$3.99

$

In Stock, Qty 16

0

24

Cub Cadet 14944

DEFLECTOR ASSY-CHUTE
(Superseded to 931-1034B)

Note: Color Code 499

$72.99

$

In Stock, Qty 6

0

25

Cub Cadet 11130

PLATE-ADAPTER

$

$

Not available

26

Cub Cadet 711-0555

PIN-PIVOT

$

$

Not available

27

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0253

SPRING-TORSION

$

$

Not available

29

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

30

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

Cub Cadet 14995

DECK ASSEMBLY-20IN

Note: Color Code 499

Variations

Cub Cadet 14995-0483

DECK ASSEM - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14995-0629

DECK ASSEM - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 14995-0638

DECK ASSEM - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14995-0662

DECK ASSEM - OYSTER GRAY (0662)

$

$

Not available

$

$

33

Cub Cadet 710-0654

SCREW-HEX
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

34

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

Note: (Grade 8)

$4.49

$

In Stock, Qty 5

0

35

Cub Cadet 710-0331

SCREW-HEX 3/8-24 X 2.25

Note: (Grade 5)

$6.99

$

In Stock, Qty 7

0

36

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

37

Cub Cadet 753-0348

KIT-BLADE ADAPTER

$

$

Currently unavailable

38

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 9

0

39

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 738-0102

SCREW-SHLD .498 DIA X 1.450

$9.99

$

In Stock, Qty 10

0

42

Cub Cadet 14924

BRACKET-CABLE

$

$

Not available

43

Cub Cadet 728-0171

RIVET

$

$

Not available

44

Cub Cadet 731-0564

PLUG

$

$

Not available

45

Cub Cadet 746-0478

CABLE-CONTROL
(Superseded to 946-0478A)

$

$

Not available

46

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

48

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

49

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

50

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

51

Cub Cadet 731-0528

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

52

Cub Cadet 749-0536

HANDLE-UPPER
(Superseded to 749-0538E-0637)

$

$

Not available

53

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

54

Cub Cadet 710-0842

SCREW-RECOIL HANDLE GUIDE

$

$

Not available

55

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

Cub Cadet 726-0240

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

58

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 14579

ADJUSTER ASSY-HGT-LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

60

Cub Cadet 14320

HANDLE ASSY-CONTROL-RH

$

$

Not available

61

Cub Cadet 777-5776

LABEL

$

$

Currently unavailable

62

Cub Cadet 777-5773

LABEL

$

$

Currently unavailable

64

Cub Cadet 12936

BRACKET ASSY-HDLE

$

$

Not available

Cub Cadet ~8072-100-7

Note: HARDWARE PACK

$

$

Currently unavailable
