071247-00 - Briggs & Stratton 100 Amp Automatic Transfer Switch Transfer Switch - Hingeless Enclosure Parts Diagram

100 Amp Automatic Transfer Switch

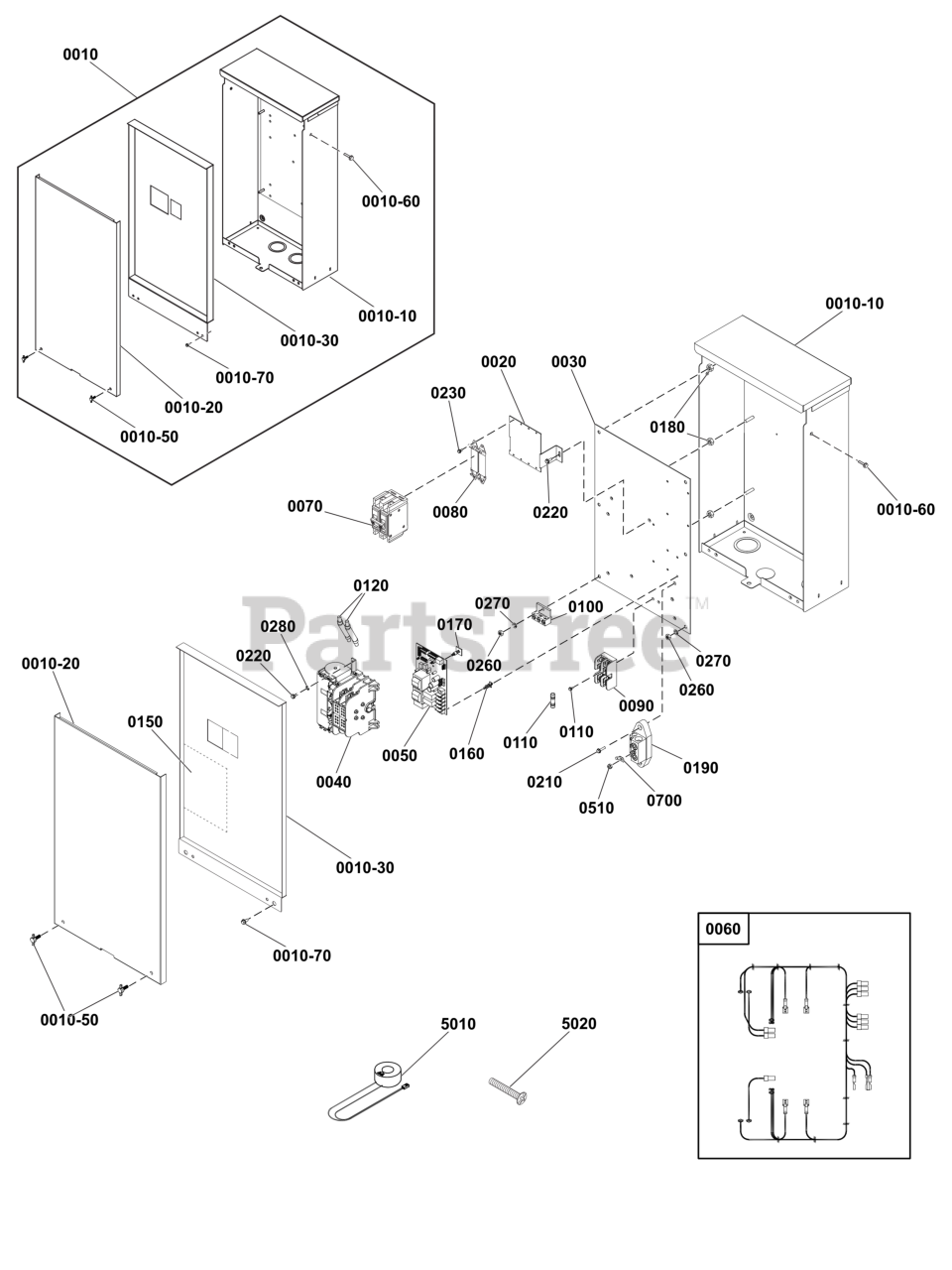

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

0010

ASSEMBLY, Enclosure

$

$

Not available

0010-10

ENCLOSURE

$

$

Not available

0010-20

DOOR, Enclosure

$

$

Not available

0010-30

PANEL, Deadfront

$

$

Not available

0010-50

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0010-60

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0010-70

Briggs & Stratton B5763GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 198129GS

BRACKET, Crct Brkr Mntng

$24.99

$

Usually ships in 2-12 days

0

0030

PANEL, Back

$

$

Not available

0040

Briggs & Stratton 314867GS

CONTACTOR, 100A

$614.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 771701

BOARD-CONTROL

$394.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 201285GS

HARNESS, Wiring, ATS

$

$

Not available

0070

Briggs & Stratton 311318GS

BREAKER, Circuit, 100A

$178.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 192770GS

BRACKET, Mounting / Breaker

$54.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 196094GS

LUG, Ground
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 193689GS

WIRE, Copper

$10.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2"

$5.49

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 202841GS

SUPPORT, Locking, Crct Brd

$5.49

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton 22241GS

NUT, Hex, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 192696GS

TERMINAL, Neutral

Note: (Incl. Ref. Nos. 0210, 5020)

$31.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 24679GS

TRILOBULAR, #10-32 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 24911GS

TRILOBLAR, 8-32 x 3/8

$3.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0260

Briggs & Stratton 22127GS

NUT, Hex, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 22097GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

0510

NUT, Nylock #10-32

Note: (*See footnote)

$

$

Not available

0700

Briggs & Stratton 74138GS

ADAPTER, Male Disconnect

$17.99

$

Usually ships in 2-12 days

0

5010

Briggs & Stratton 208106GS

KIT, CURRENT TRANSFOR

$32.99

$

Usually ships in 2-12 days

0

5020

Briggs & Stratton 84007447

SCREW, Bonding, 1/4-20 X 1 3/4"

$2.49

$

Usually ships in 2-12 days
