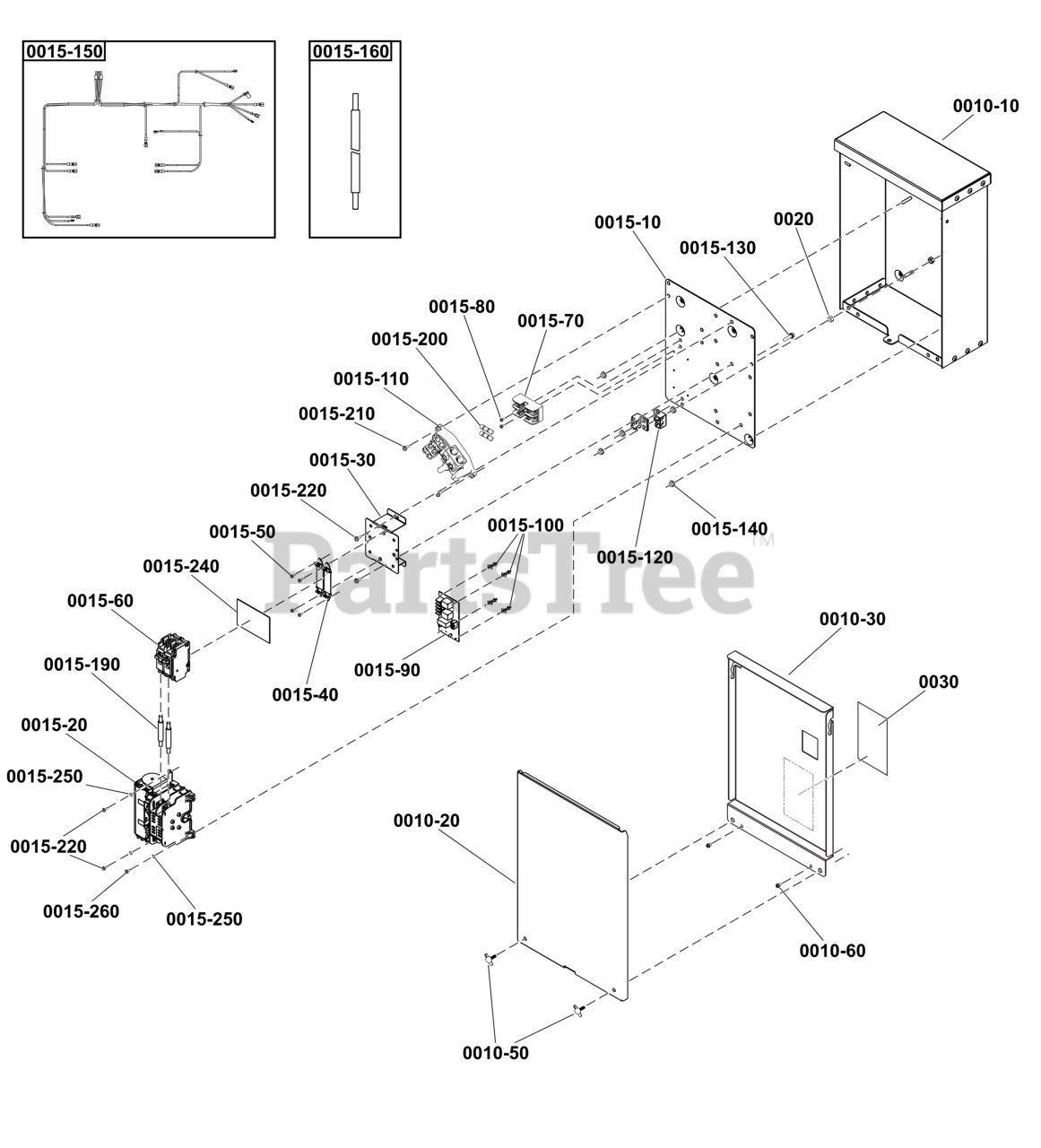

071211-00 - Briggs & Stratton 100 Amp Automatic Transfer Switch, Gateway Transfer Switch - Hingeless Enclosure Parts Diagram

100 Amp Automatic Transfer Switch, Gateway

Transfer Switch - Hingeless Enclosure Parts Diagram

  • Title

0010-10

ASSEMBLY, Enclosure

$

$

Not available

0010-20

Briggs & Stratton 84004494

DOOR, Enclosure

$

$

Currently unavailable

0010-30

Briggs & Stratton 84004682

DEADFRONT

Note: (Incl. Ref. Nos. 0010-30, 0030, 0080 Decal Sheet)

$169.99

$

Usually ships in 2-12 days

0

0010-50

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0010-60

Briggs & Stratton 703967

SCREW, #10-32 x 3/8, Torx Hex Washer Head Self-Tap, ZC/CL

$3.49

$

In Stock, Qty 20+

0

0015-10

PANEL, Back

$

$

Not available

0015-20

Briggs & Stratton 314867GS

CONTACTOR, 100A

$614.99

$

Usually ships in 2-12 days

0

0015-30

Briggs & Stratton 770433

BRACKET

$25.99

$

Usually ships in 2-12 days

0

0015-40

Briggs & Stratton 192770GS

BRACKET, Mounting / Breaker

$54.99

$

Usually ships in 2-12 days

0

0015-50

Briggs & Stratton 24911GS

TRILOBLAR, 8-32 x 3/8

$3.99

$

Usually ships in 2-12 days

0

0015-60

Briggs & Stratton 311318GS

BREAKER, Circuit, 100A

$178.99

$

Usually ships in 2-12 days

0

0015-70

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0015-80

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0015-90

Briggs & Stratton 770434

BOARD, Circuit

$87.99

$

Usually ships in 2-12 days

0

0015-100

Briggs & Stratton 707397

SPACER

$9.99

$

Usually ships in 2-12 days

0

0015-110

Briggs & Stratton 84004497

ASSEMBLY, Neutral, 100A

$

$

Currently unavailable

0015-120

Briggs & Stratton 84004498

LUG

$8.49

$

Usually ships in 2-12 days

0

0015-130

SCREW, 1/4"-20 x 1"

$

$

Not available

0015-140

Briggs & Stratton 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 13

0

0015-150

Briggs & Stratton 84004510

HARNESS, Wire

$37.99

$

Usually ships in 2-12 days

0

0015-160

Briggs & Stratton 84004514

WIRE

$6.99

$

Usually ships in 2-12 days

0

0015-190

Briggs & Stratton 84004512

WIRE

$11.99

$

Usually ships in 2-12 days

0

0015-200

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0015-210

Briggs & Stratton 32713GS

TAPTITE, #10-32 X 5/8

$3.49

$

Usually ships in 2-12 days

0

0015-220

Briggs & Stratton 194561GS

HHS, Trilobular, #10-32 x 3/8

$3.49

$

Usually ships in 2-12 days

0

0015-240

Briggs & Stratton 84004491

INSULATION, Circuit Breaker

$25.99

$

Usually ships in 2-12 days

0

0015-250

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

0015-260

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

0030

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0
