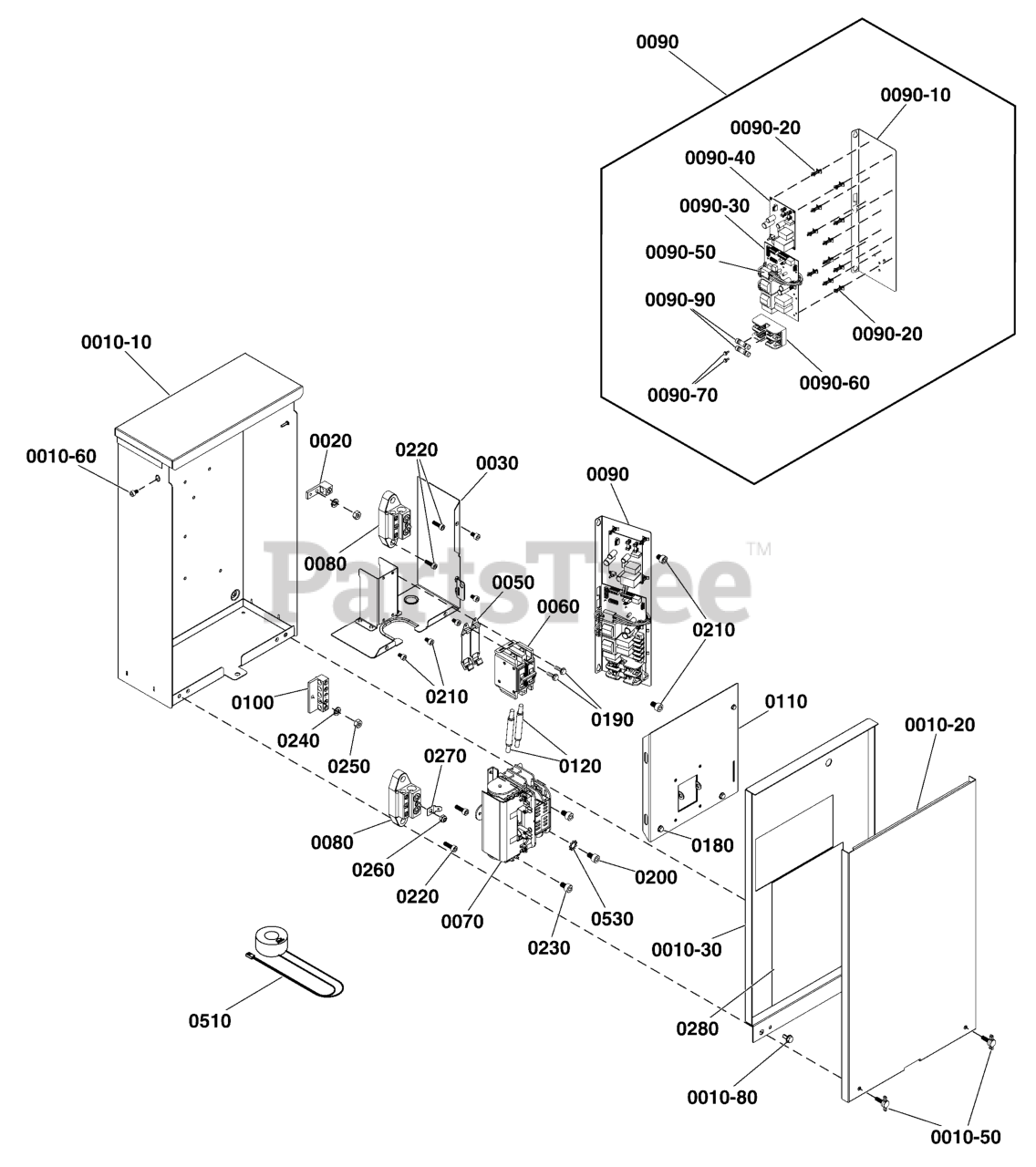

071132-01 - Briggs & Stratton 100 Amp Transfer Switch, Symphony II Transfer Switch - Enclosure Parts Diagram

100 Amp Transfer Switch, Symphony II

Transfer Switch - Enclosure Parts Diagram

  • Title

0010-10

ENCLOSURE

$

$

Not available

0010-20

Briggs & Stratton 770437

DOOR

$178.99

$

Usually ships in 2-12 days

0

0010-30

Briggs & Stratton 770597

PANEL, Deadfront

$193.99

$

Usually ships in 2-12 days

0

0010-50

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0010-60

Briggs & Stratton 200020GS

SCREW, Trilobular, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0010-80

Briggs & Stratton B5763GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 199011GS

LUG, Ground Connect

$8.49

$

Usually ships in 2-12 days

0

0030

ASSEMBLY, Barrier

$

$

Not available

0050

Briggs & Stratton 192770GS

BRACKET, Mounting / Breaker

$54.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 192882GS

BREAKER, Circuit, 100A
(Superseded to 311318GS)

$178.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 314867GS

CONTACTOR, 100A

$614.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 192696GS

TERMINAL, Neutral

$31.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 770601

CIRCUIT CARD, Sub Assembly

Note: (Includes items 0090-0010, 0090-20, 0090-30, 0090-40, 0090-50, 0090-60, 0090-70, 0090-90)

$

$

Not available

0090-10

Briggs & Stratton 771030

BRACKET, Mounting

$58.99

$

Usually ships in 2-12 days

0

0090-20

Briggs & Stratton 707397

SPACER

$9.99

$

Usually ships in 2-12 days

0

0090-30

Briggs & Stratton 771701

CONTROLLER

$394.99

$

Usually ships in 2-12 days

0

0090-40

Briggs & Stratton 310443GS

BOARD, Circuit

$506.99

$

Usually ships in 2-12 days

0

0090-50

HARNESS, Wire

$

$

Not available

0090-60

Briggs & Stratton 192151GS

FUSE HOLDER, 30 Amp 2P

$8.49

$

Usually ships in 2-12 days

0

0090-70

Briggs & Stratton 192730GS

SCREW, Hex Head, Trilobular, #6-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0090-90

Briggs & Stratton 205110GS

FUSE, 10 Amp 600v

$31.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 770600

TERMINAL, Ground 5 Position

$38.99

$

Usually ships in 2-12 days

0

0110

PANEL, Deadfront

$

$

Not available

0120

Briggs & Stratton 770624

WIRE, Breaker

$13.99

$

Usually ships in 2-12 days

0

0180

Briggs & Stratton B5763GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 24911GS

TRILOBLAR, 8-32 x 3/8

$3.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 707411

SCREW

$4.49

$

Usually ships in 2-12 days

0

0210

SCREW, M5-0.8 X 6

Note: (*See footnote)

$

$

Not available

0220

SCREW, M5-0.8 X 16

Note: (*See footnote)

$

$

Not available

0230

SCREW, M5-0.8 X 8

Note: (*See footnote)

$

$

Not available

0240

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

0260

NUT, Nylock #10-32

Note: (*See footnote)

$

$

Not available

0270

Briggs & Stratton 74138GS

ADAPTER, Male Disconnect

$17.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

0510

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$32.99

$

Usually ships in 2-12 days

0

0530

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0
