071132-00 - Briggs & Stratton 100 Amp Transfer Switch, Symphony II Transfer Switch - Enclosure (80019955) Parts Diagram

100 Amp Transfer Switch, Symphony II

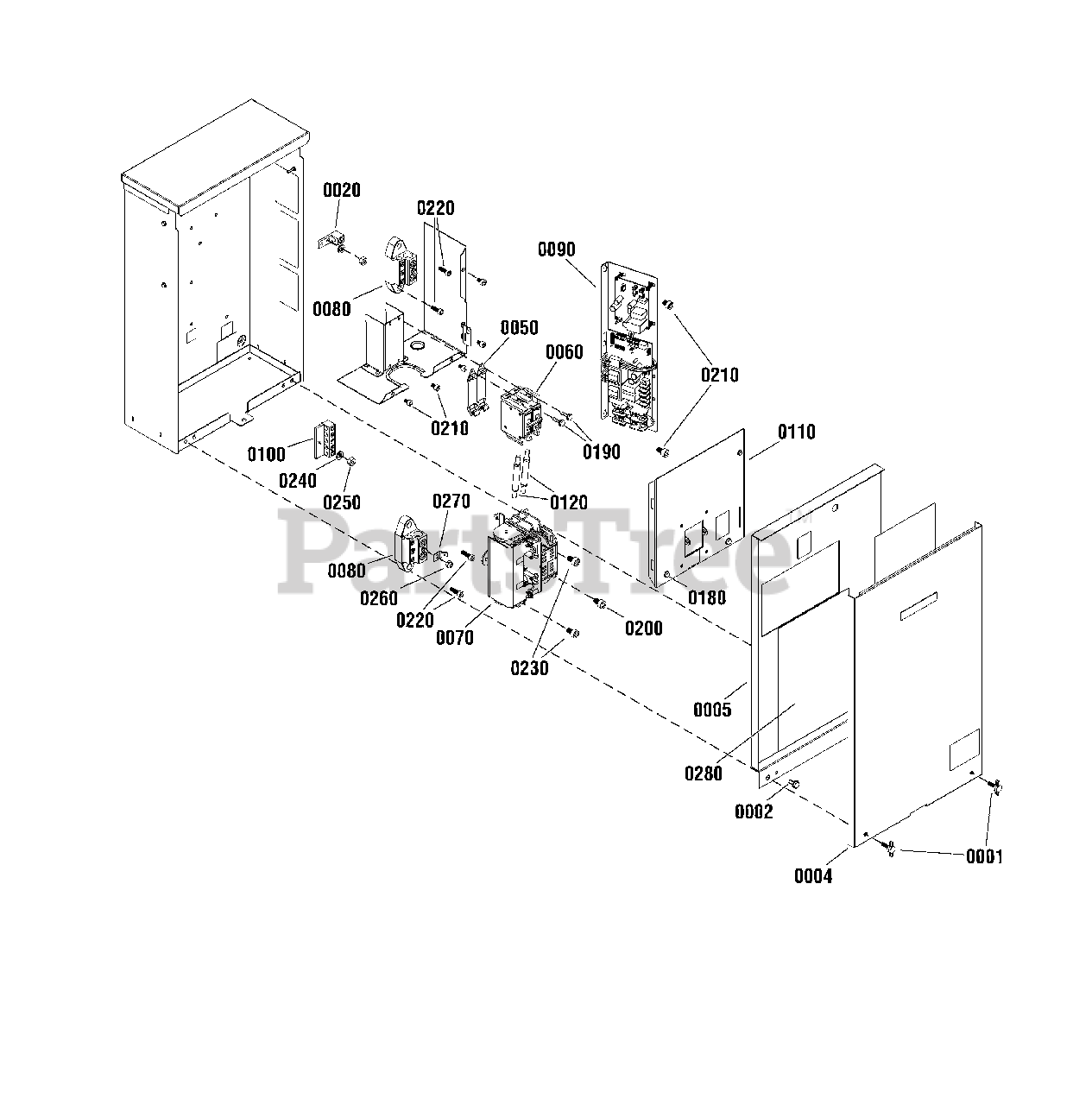

Transfer Switch - Enclosure (80019955) Parts Diagram

  • Title

0001

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

0002

Briggs & Stratton B5763GS

TRILOBULAR, #10-32 x 3/8

$3.99

$

Usually ships in 2-12 days

0

0004

Briggs & Stratton 705948

DOOR

$201.99

$

Usually ships in 2-12 days

0

0005

Briggs & Stratton 706781

DEADFRONT

$318.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 199011GS

LUG, Ground Connect

$8.49

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 192770GS

BRACKET

$54.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 192882GS

BREAKER, Circuit, 100A
(Superseded to 311318GS)

$178.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 314867GS

SWITCH, Transfer

$614.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 192696GS

TERMINAL

$31.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 770601

CIRCUIT CARD, Sub Assembly

$

$

Not available

0100

Briggs & Stratton 770600

TERMINAL, 5 Position

$38.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 770598

DEADFRONT, Sub Assembly

$88.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 770624

WIRE, Breaker

$13.99

$

Usually ships in 2-12 days

0

0180

-----

* TRILOBULAR, #10-32 x 3/8

$

$

Not available

0190

-----

* TRILOBLAR, #8-32 x 3/8

$

$

Not available

0200

-----

* CAPSCREW, Socket Head, M5 - .8 x 10

$

$

Not available

0210

-----

* CAPSCREW, Socket Head, M5 - .8 x 6

$

$

Not available

0220

-----

* CAPSCREW, Socket Head, M5 - .8 x 16

$

$

Not available

0230

-----

* CAPSCREW, Socket Head, M5 - .8 x 8

$

$

Not available

0240

-----

* LOCKWASHER, 1/4

$

$

Not available

0250

-----

* NUT, Hex, M6 x 1

$

$

Not available

0260

-----

* NUT, Nylock, 10-32

$

$

Not available

0270

Briggs & Stratton 74138GS

ADAPTER, Disconnect

$17.99

$

Usually ships in 2-12 days

0

0280

Briggs & Stratton 193664GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0
