071071-01 - Briggs & Stratton 100 Amp Automatic Transfer Switch Transfer Switch - Hingeless Enclosure (312631) Parts Diagram

100 Amp Automatic Transfer Switch

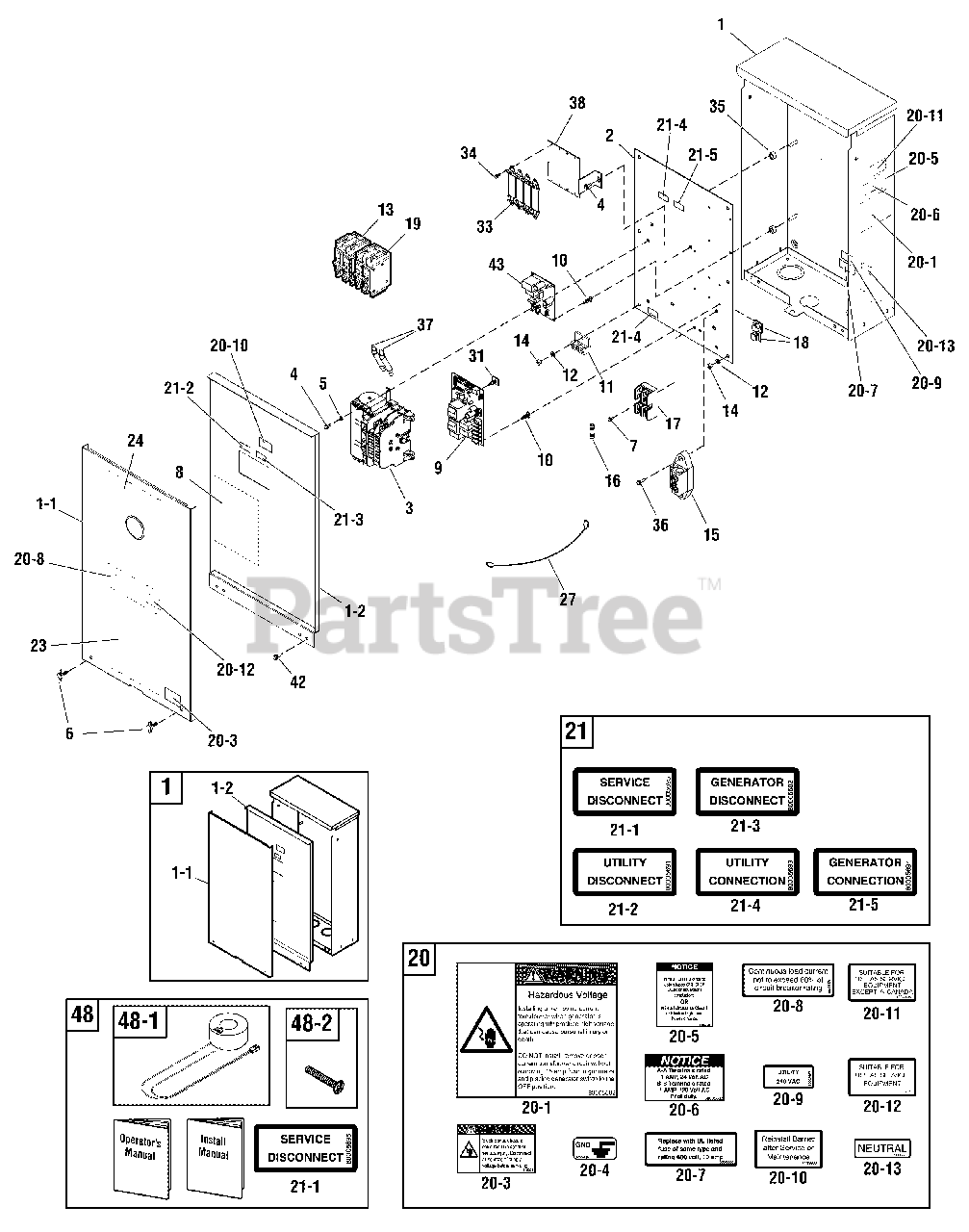

Transfer Switch - Hingeless Enclosure (312631) Parts Diagram

  • Title

1

-----

ENCLOSURE

$

$

Not available

1-1

Briggs & Stratton 705949

DOOR

$215.99

$

Usually ships in 2-12 days

0

1-2

Briggs & Stratton 705958

DEADFRONT

$207.99

$

Usually ships in 2-12 days

0

2

-----

BACK PANEL

$

$

Not available

3

Briggs & Stratton 314867GS

SWITCH, Transfer

$614.99

$

Usually ships in 2-12 days

0

4

-----

* TRILOBULAR, #10-32 x 1/2

$

$

Not available

5

-----

* WASHER, External Tooth, #10

$

$

Not available

6

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

7

-----

* SCREW, Hex Head, Trilobular, #6-32 x 3/8

$

$

Not available

8

Briggs & Stratton 193664GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 208059GS

BOARD, Circuit
(Superseded to 771701)

$394.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197979GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

-----

* WASHER, Lock, 1/4

$

$

Not available

13

Briggs & Stratton 192882GS

BREAKER, Circuit, 100A
(Superseded to 311318GS)

Note: (Connect to Utility Power)

$178.99

$

Usually ships in 2-12 days

0

14

-----

* NUT, 1/4-20

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B4857GS

FUSE
(Superseded to 205110GS)

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197355GS

CLIP

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 202593GS

BREAKER, Circuit, 100A
(Superseded to 311318GS)

Note: (Connect to Generator Power)

$178.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 704420

DECAL SHEET - WARNINGS

Note: (Includes Ref. Nos. 20-1, 20-3, 20-4, 20-5, 20-6, 20-7, 20-8, 20-9, 20-10, 20-11 & 20-12)

$16.99

$

Usually ships in 2-12 days

0

20-1

-----

DECAL, Warning Voltage

$

$

Not available

20-3

-----

DECAL, Warning Shock

$

$

Not available

20-4

-----

DECAL, Ground

$

$

Not available

20-5

-----

DECAL, Notice

$

$

Not available

20-6

-----

DECAL, Contacts Rated

$

$

Not available

20-7

-----

DECAL, Fuse, 10 Amp

$

$

Not available

20-8

-----

DECAL, Breaker, Circuit

$

$

Not available

20-9

-----

DECAL, Sensing, Utility

$

$

Not available

20-10

-----

DECAL, Reinstall After

$

$

Not available

20-11

-----

DECAL, Not Suitable

$

$

Not available

20-12

-----

DECAL, Suit. as Service Equip.

$

$

Not available

20-13

-----

DECAL, Neutral

$

$

Not available

21

Briggs & Stratton 705423

DECAL SHEET-CONNECTIONS

Note: (Includes Ref. Nos. 21-1, 21-2, 21-3, 21-4 & 21-5)

$18.99

$

Usually ships in 2-12 days

0

21-1

-----

DECAL, Service Disconnect

$

$

Not available

21-2

-----

DECAL, Disconnect Utility

$

$

Not available

21-3

-----

DECAL, Gen Disconnect

$

$

Not available

21-4

-----

DECAL, Connection, Utility

$

$

Not available

21-5

-----

DECAL, Connect Gen

$

$

Not available

23

Briggs & Stratton 200011GS

DECAL

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 311306GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 192242TGS

WIRE

$36.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 202841GS

STANDOFF

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 192770GS

BRACKET

$54.99

$

Usually ships in 2-12 days

0

34

-----

* TRILOBLAR, 8-32 x 3/8

$

$

Not available

35

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

36

-----

* TRILOBULAR, #10-32 x 3/4

$

$

Not available

37

Briggs & Stratton 193689GS

WIRE

$10.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 198129GS

BRACKET

$24.99

$

Usually ships in 2-12 days

0

42

-----

* TRILOBULAR, #10-32 x 3/8

$

$

Not available

43

Briggs & Stratton 310443GS

BOARD, Circuit

$506.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 312843GS

KIT, Manual ACC

Note: (Includes Ref. Nos. 27-1, 48-1, 48-2 & Manuals.)

$176.99

$

Usually ships in 2-12 days

0

48-1

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$32.99

$

Usually ships in 2-12 days

0

48-2

Briggs & Stratton 193306GS

SCREW, Bonding

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317609GS

DECAL, Power Delay Notice

Note: (Optional Accessory)

$

$

Currently unavailable
