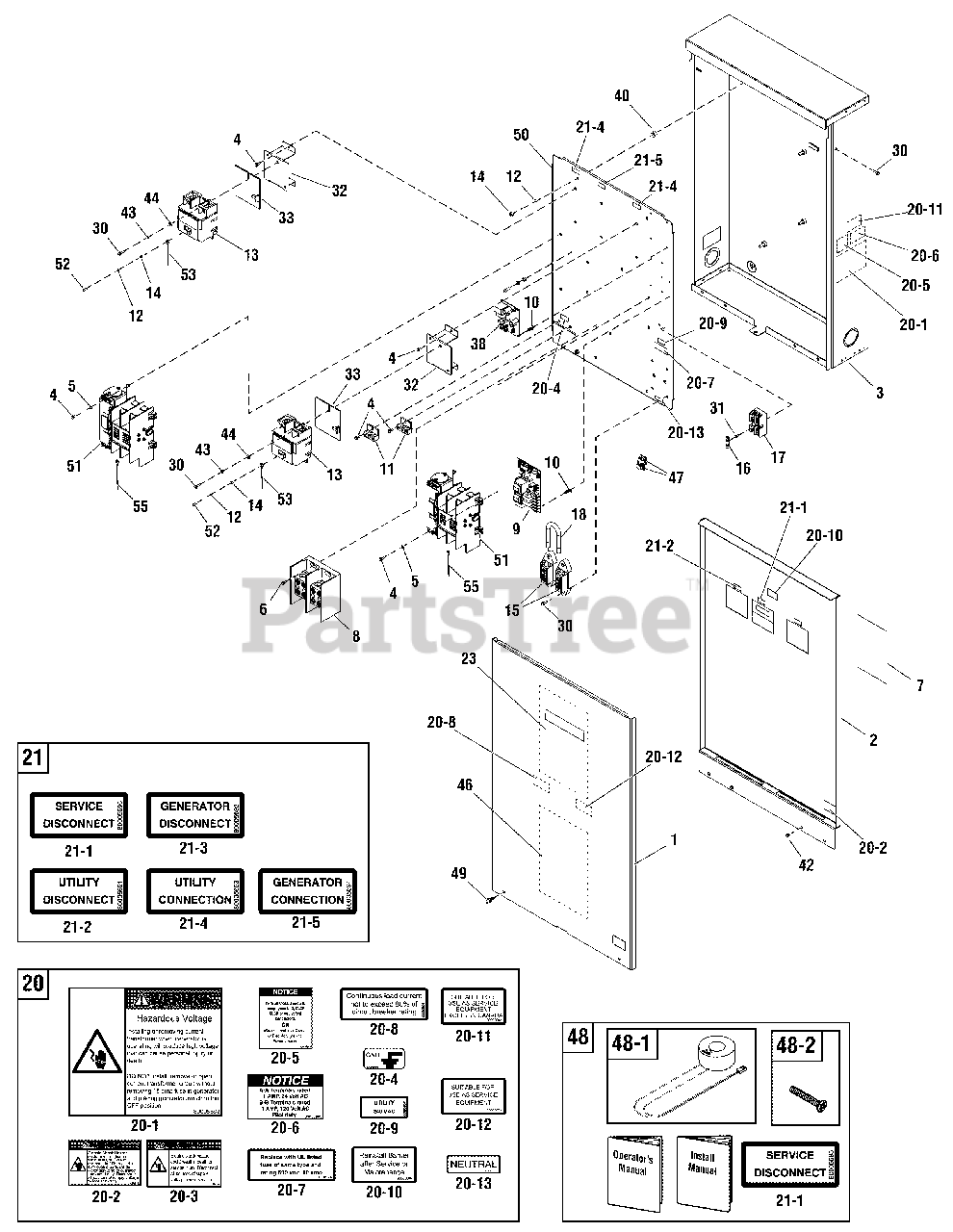

071057-01 - Briggs & Stratton 200 Amp Automatic Transfer Switch, ACCM NEMA 3R Transfer Switch (80010972) Parts Diagram

200 Amp Automatic Transfer Switch, ACCM NEMA 3R

Transfer Switch (80010972) Parts Diagram

  • Title

1

Briggs & Stratton 313347GS

DOOR

$119.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 706784

PANEL

$449.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 313251GS

ENCLOSURE

$479.99

$

Usually ships in 2-12 days

0

4

-----

* TRILOBULAR, #10-32 x 1/2

$

$

Not available

5

-----

* WASHER, Ext., #10

$

$

Not available

6

-----

* TRILOBULAR, #10-32 x 3/4

$

$

Not available

7

Briggs & Stratton 193664GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 706845

TERMINAL

$329.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 208059GS

BOARD, Circuit
(Superseded to 771701)

$394.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197979GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

-----

* WASHER, Lock, 1/4

$

$

Not available

13

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

14

-----

* NUT, 1/4-20

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205110GS

FUSE

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 314877GS

WIRE

$21.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 704420

DECAL SHEET- WARNINGS

Note: (Includes Ref. Nos. 20-1, 20-3, 20-4, 20-5, 20-6, 20-7, 20-8, 20-9, 20-10, 20-11 & 20-12)

$16.99

$

Usually ships in 2-12 days

0

20-1

-----

DECAL, Warning Voltage

$

$

Not available

20-2

-----

DECAL, Warning Shock

$

$

Not available

20-3

-----

DECAL, Warning Shock

$

$

Not available

20-4

-----

DECAL, Ground

$

$

Not available

20-5

-----

DECAL, Notice

$

$

Not available

20-6

-----

DECAL, Contacts Rated

$

$

Not available

20-7

-----

DECAL, Fuse

$

$

Not available

20-8

-----

DECAL, Circuit Breaker

$

$

Not available

20-9

-----

DECAL, Sensing, Utility

$

$

Not available

20-10

-----

DECAL, Reinstall AFter

$

$

Not available

20-11

-----

DECAL, Not Sutiable

$

$

Not available

20-12

-----

DECAL, Suit. as Service Equip.

$

$

Not available

20-13

-----

DECAL, Neutral

$

$

Not available

21

Briggs & Stratton 705423

DECAL SHEET - CONNECTIONS

Note: (Includes Ref. Nos. 21-1, 21-2, 21-3, 21-4 & 21-8)

$18.99

$

Usually ships in 2-12 days

0

21-1

-----

DECAL, Service Disconnect

$

$

Not available

21-2

-----

DECAL, Utility Disconnect

$

$

Not available

21-3

-----

DECAL, Gen Disconnect

$

$

Not available

21-4

-----

DECAL, Utility Connection

$

$

Not available

21-5

-----

DECAL, Gen Connection

$

$

Not available

23

Briggs & Stratton 314328GS

DECAL

$6.99

$

Usually ships in 2-12 days

0

30

-----

* TRILOBULAR, #10-32 x 3/4

$

$

Not available

31

-----

* TRILOBULAR, #6-32 x 3/8

$

$

Not available

32

Briggs & Stratton 314880GS

BRACKET

$17.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 192879GS

INSULATOR

$8.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 310443GS

BOARD, Circuit

$506.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

42

-----

* TRILOBULAR, #10-32 x 3/8

$

$

Not available

43

-----

* WASHER, Lock, #10

$

$

Not available

44

-----

* WASHER, Flat, #10

$

$

Not available

46

Briggs & Stratton 314329GS

DECAL

$14.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 197355GS

CLIP

$2.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 706831

KIT, Manual ACC

$209.99

$

Usually ships in 2-12 days

0

48-1

Briggs & Stratton 208106GS

CURRENT TRANSFORMER

$32.99

$

Usually ships in 2-12 days

0

48-2

Briggs & Stratton 193306GS

SCREW, Bonding

$6.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 315108GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 313885GS

BACK PANEL

$

$

Currently unavailable

51

Briggs & Stratton 314326GS

SWITCH, Transfer
(Superseded to 314866GS)

$655.99

$

Usually ships in 2-12 days

0

52

-----

* SCREW, Pan Head Phillips, 1/4-20 x 3/4

$

$

Not available

53

Briggs & Stratton 314322GS

WIRE

$23.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 314324GS

WIRE

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317609GS

DECAL, Power Delay Notice

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 6310

KIT, Circuit breaker

Note: (Optional Accessory)

$246.99

$

Usually ships in 2-12 days

0
