071054-00 - Briggs & Stratton 200 Amp Automatic Transfer Switch Transfer Switch - Hinged Enclosure (311458) Parts Diagram

200 Amp Automatic Transfer Switch

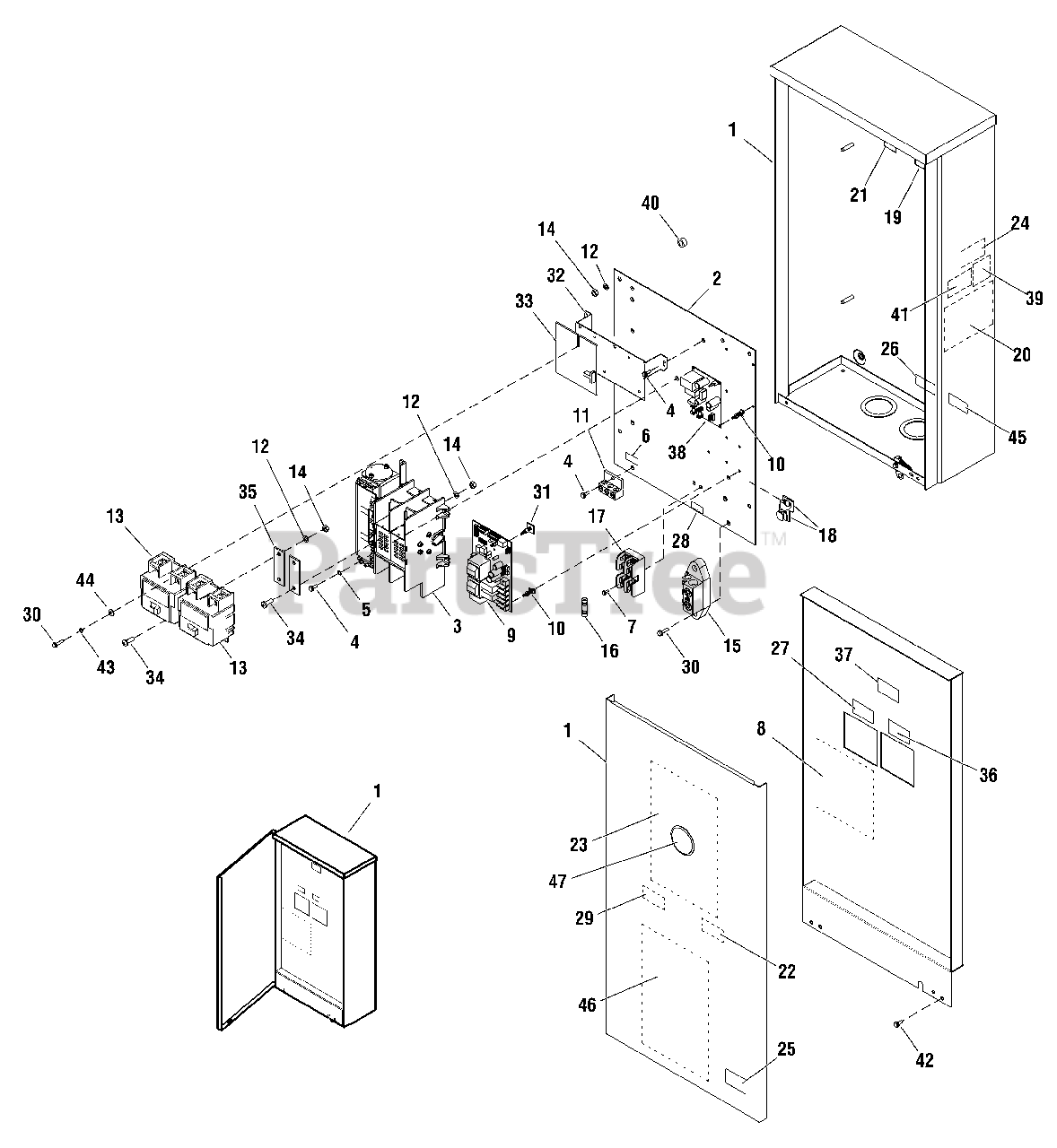

Transfer Switch - Hinged Enclosure (311458) Parts Diagram

  • Title

1

-----

ENCLOSURE

$

$

Not available

2

-----

BACK PANEL

$

$

Not available

3

Briggs & Stratton 315050GS

SWITCH, Transfer

$863.99

$

Usually ships in 2-12 days

0

4

-----

* TRILOBULAR, #10-32 x 1/2

$

$

Not available

5

-----

* WASHER, External Tooth, #10

$

$

Not available

6

Briggs & Stratton B4986AGS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

-----

* SCREW, Hex Head, Trilobular, #6-32 x 3/8

$

$

Not available

8

Briggs & Stratton 193664GS

INSULATION

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 208059GS

BOARD, Circuit
(Superseded to 771701)

$394.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197979GS

SPACER

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

-----

* WASHER, Lock, 1/4

$

$

Not available

13

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

14

-----

* NUT, 1/4-20

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205110GS

FUSE

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197355GS

CLIP

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B5107GS

DECAL

$5.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 205478GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B5106GS

DECAL

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192558GS

DECAL

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 311306GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 202760GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205395GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 205115GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 202758GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 192597GS

DECAL
(Superseded to 704418)

$22.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 193450GS

DECAL

$5.99

$

Usually ships in 2-12 days

0

30

-----

* SCREW, Hex Head, Trilobular, #10-32 x 3/4

$

$

Not available

31

Briggs & Stratton 202841GS

STANDOFF

$5.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 204428GS

BRACKET

$36.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 192879GS

INSULATOR

$8.49

$

Usually ships in 2-12 days

0

34

-----

* SCREW, Phillips Head, 1/4-20x 3/4

$

$

Not available

35

Briggs & Stratton 192881GS

BAR, Bus
(Superseded to 319267GS)

$16.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 202361GS

DECAL

$6.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 193159GS

DECAL
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 310443GS

BOARD, Circuit

$506.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 205402GS

DECAL
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 197198GS

DECAL
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

42

-----

* TRILOBULAR, #10-32 x 3/8

$

$

Not available

43

-----

* WASHER, Lock, #10

$

$

Not available

44

-----

* WASHER, Flat, #10

$

$

Not available

45

Briggs & Stratton 209048GS

DECAL
(Superseded to 705919)

$15.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 205061GS

DECAL

$20.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 209644GS

DECAL

$24.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 193306GS

SCREW, Bonding

Note: (Not Illustrated)

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 193551GS

DECAL, Service Disconnect

Note: (Not Illustrated)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315229GS

MANUAL, Operator

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315230GS

MANUAL, Install

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312843GS

KIT, Manual

Note: (Not Illustrated)

$176.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208899GS

CURRENT TRANSFORMER
(Superseded to 208106GS)

Note: (Not Illustrated)

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192242UGS

WIRE

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 192242VGS

WIRE

Note: (Not Illustrated)

$142.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317609GS

DECAL, Power Delay Notice

Note: (Optional Accessory)

$

$

Currently unavailable
