071039-0 - Briggs & Stratton 100 Amp Automatic Transfer Switch, 50/60HZ ACCM2 Transfer Switch (206621) Parts Diagram

100 Amp Automatic Transfer Switch, 50/60HZ ACCM2

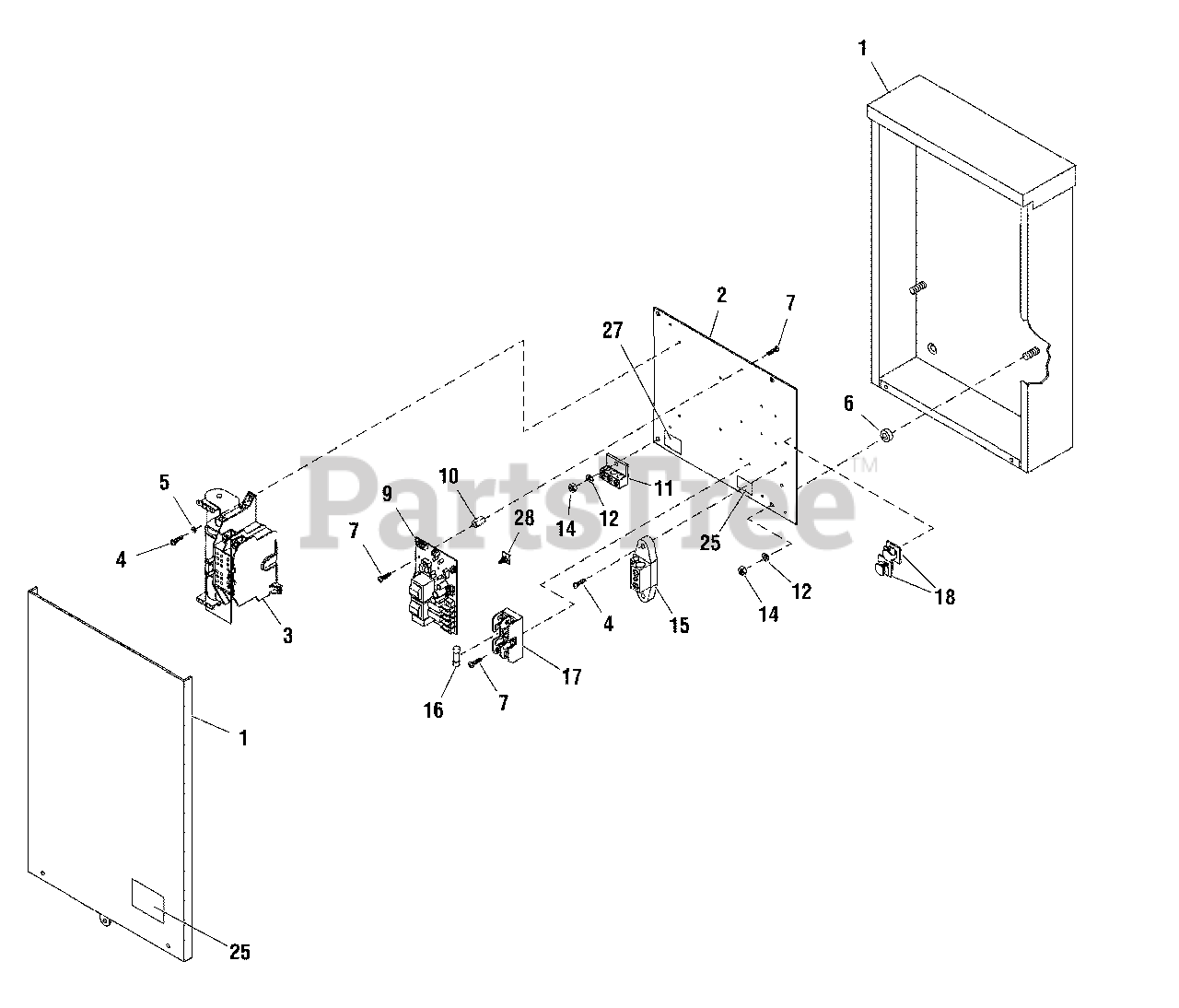

Transfer Switch (206621) Parts Diagram

  • Title

1

-----

ENCLOSURE

$

$

Not available

2

-----

PANEL, Back

$

$

Not available

3

Briggs & Stratton 314865GS

SWITCH, Transfer

$979.99

$

Usually ships in 2-12 days

0

4

-----

* SCREW, Phillips Head, #10 - 32 x 1/2

$

$

Not available

5

-----

* WASHER, Ext. Tooth, #10

$

$

Not available

6

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

7

-----

* SCREW, Phillips Head, #6-32 x 3/8

$

$

Not available

9

Briggs & Stratton 204009GS

BOARD, Circuit
(Superseded to 208059GS)

$394.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

GROUND LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

-----

* WASHER, Lock 1/4

$

$

Not available

14

-----

* NUT, 1/4-20

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205110GS

FUSE

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197355GS

CLIP

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 206991GS

DECAL

$21.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B4986AGS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 202420GS

SUPPORT

$4.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312838GS

KIT, Manual/ACC

Note: (Not Illustrated)

$178.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206620GS

MANUAL, Operator

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208899GS

CURRENT TRANSFORMER
(Superseded to 208106GS)

Note: (Not Illustrated)

$32.99

$

Usually ships in 2-12 days

0
