071036-01 - Briggs & Stratton 200 Amp Automatic Transfer Switch Transfer Switch - Hingeless Enclosure (204430) Parts Diagram

200 Amp Automatic Transfer Switch

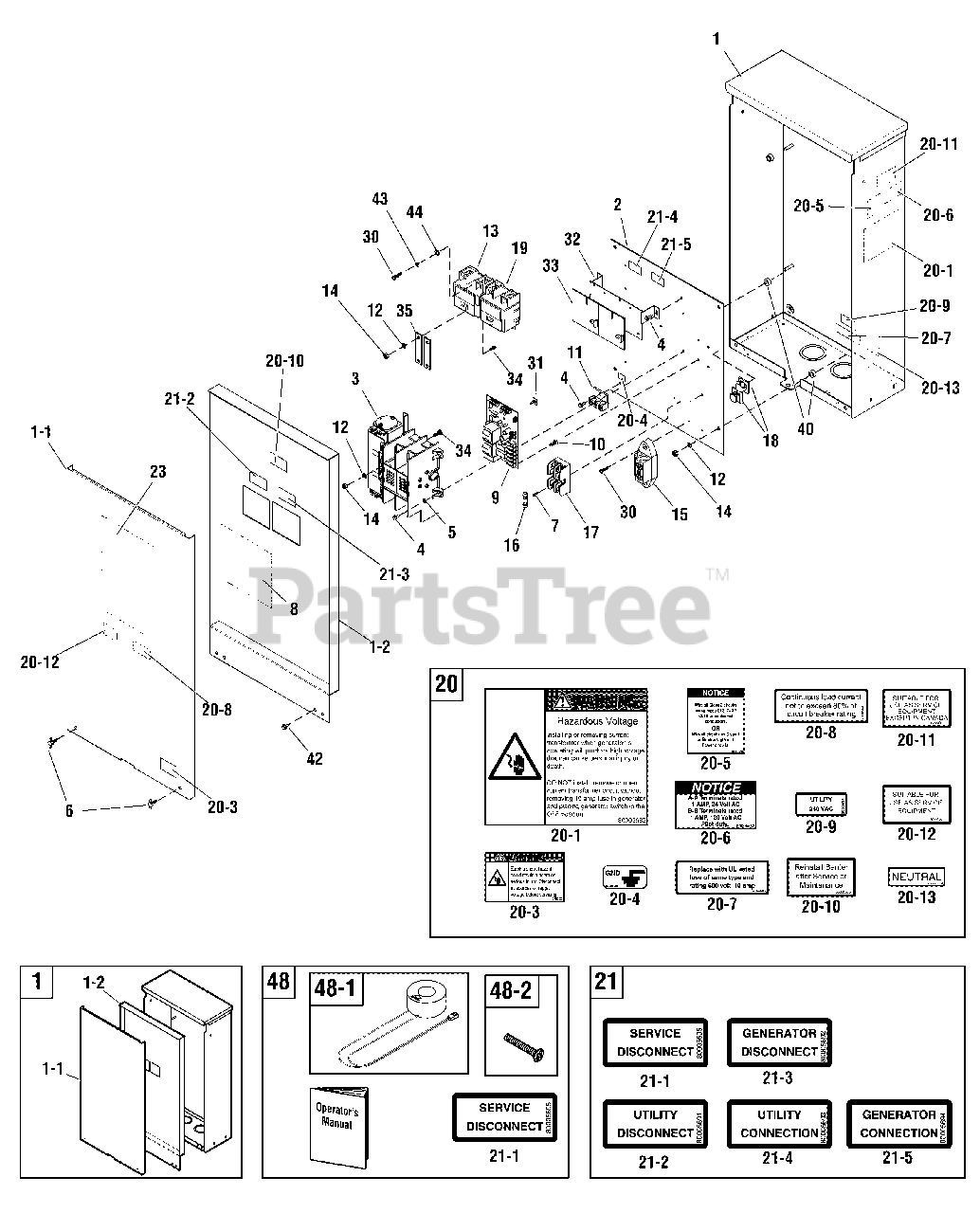

Transfer Switch - Hingeless Enclosure (204430) Parts Diagram

  • Title

1

-----

ENCLOSURE

$

$

Not available

1-1

Briggs & Stratton 705951

DOOR

$201.99

$

Usually ships in 2-12 days

0

1-2

Briggs & Stratton 705960

DEADFRONT

$390.99

$

Usually ships in 2-12 days

0

2

-----

BACK PANEL

$

$

Not available

3

Briggs & Stratton 315050GS

SWITCH, Transfer

$863.99

$

Usually ships in 2-12 days

0

4

-----

* SCREW, Hex Head, Trilobular, #10-32 x 1/2

$

$

Not available

5

-----

* WASHER, Ext. Tooth, #10

$

$

Not available

6

-----

SCREW

$

$

Not available

7

-----

* SCREW, Hex Head, Trilobular, #6- 32 x 3/8

$

$

Not available

8

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 204009GS

CONTROL, Board
(Superseded to 208059GS)

$394.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

-----

* WASHER, Lock 1/4

$

$

Not available

13

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

Note: (Connect to Utility Power)

$207.99

$

Usually ships in 2-12 days

0

14

-----

* NUT, 1/4-20

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL, Neutral

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205110GS

FUSE

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197355GS

CLIP, Latching Wire

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 318878GS

BREAKER, Circuit, 200A

Note: (Connect to Generator Power)

$183.99

$

Usually ships in 2-12 days

0

20

-----

DECAL SHEET-WARNINGS

Note: (Includes Ref. Nos. 20-1, 20-3, 20-4, 20-5, 20-6, 20-7, 20-8, 20-9, 20-10, 20-11, 20-12 & 20-13)

$

$

Not available

20-1

-----

DECAL, CT Warning

$

$

Not available

20-3

-----

DECAL, Warning Shock

$

$

Not available

20-4

-----

DECAL, Ground

$

$

Not available

20-5

-----

DECAL, Wire Circuits

$

$

Not available

20-6

-----

DECAL, Contacts Rating

$

$

Not available

20-7

-----

DECAL, Fuse

$

$

Not available

20-8

-----

DECAL, Suit. as Service Equip.

$

$

Not available

20-9

-----

DECAL, Sensing, Utility

$

$

Not available

20-10

-----

DECAL, Reinstall Barrier

$

$

Not available

20-11

-----

DECAL, Not Suitable

$

$

Not available

20-12

-----

DECAL, Breaker, Circuit

$

$

Not available

20-13

-----

DECAL

$

$

Not available

21

----

DECAL SHEET-CONNECTIONS

Note: (Includes Ref. Nos. 21-1, 21-2, 21-3, 21-4 & 21-5)

$

$

Not available

21-1

-----

DECAL, Service Disconnect

$

$

Not available

21-2

-----

DECAL, Disconnect Utility

$

$

Not available

21-3

-----

DECAL, Gen Disconnect

$

$

Not available

21-4

-----

DECAL, Connection, Utility

$

$

Not available

21-5

-----

DECAL, Connect Gen

$

$

Not available

23

Briggs & Stratton 205061GS

DECAL, 200A, ATS

$20.99

$

Usually ships in 2-12 days

0

30

-----

* SCREW, Hex Head, Trilobular, #10-32 x 3/4

$

$

Not available

31

Briggs & Stratton 202841GS

STANDOFF

$5.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 204428GS

BRACKET, Circuit Breaker Mounting

$36.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 192879GS

INSULATOR, Circuit Breaker

$8.49

$

Usually ships in 2-12 days

0

34

-----

* SCREW, Phillips Head, 1/4-20 x 3/4

$

$

Not available

35

Briggs & Stratton 319267GS

BUS BAR

$16.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

42

-----

* SCREW, Hex Head, Trilobular, #8-32 x 3/8

$

$

Not available

43

-----

* WASHER, Lock, #10

$

$

Not available

44

-----

* WASHER, Flat, #10

$

$

Not available

48

Briggs & Stratton 312837GS

KIT-MANUAL ACC

Note: (Includes Ref. Nos. 48-1, 48-2 & Manual)

$201.99

$

Usually ships in 2-12 days

0

48-1

Briggs & Stratton 208899GS

CURRENT TRANSFORMER
(Superseded to 208106GS)

$32.99

$

Usually ships in 2-12 days

0

48-2

Briggs & Stratton 193306GS

SCREW, Bonding

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192242UGS

WIRE

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 192242VGS

WIRE

Note: (Not Illustrated)

$142.99

$

Usually ships in 2-12 days

0
