071036-00 - Briggs & Stratton 200 Amp Automatic Transfer Switch Transfer Switch - Hinged Enclosure (205121) Parts Diagram

200 Amp Automatic Transfer Switch

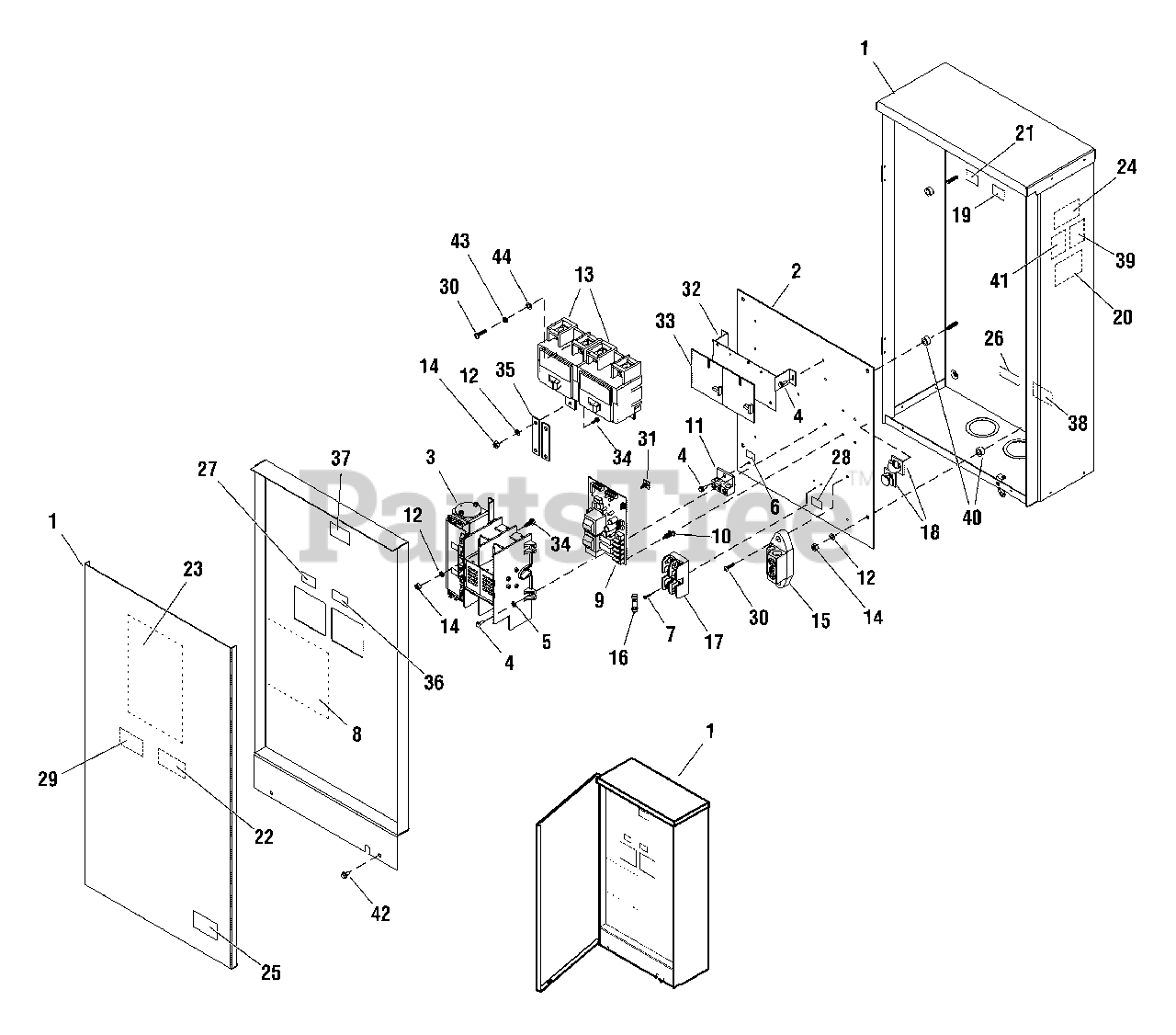

Transfer Switch - Hinged Enclosure (205121) Parts Diagram

  • Title

1

-----

ENCLOSURE

$

$

Not available

2

-----

BACK PANEL

$

$

Not available

3

Briggs & Stratton 315050GS

SWITCH, Transfer

$863.99

$

Usually ships in 2-12 days

0

4

-----

* SCREW, Hex Head, Trilobular, #10-32 x 1/2

$

$

Not available

5

-----

* WASHER, Ext. Tooth, #10

$

$

Not available

6

Briggs & Stratton B4986AGS

DECAL, Ground
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

-----

* SCREW, Hex Head, Trilobular, #6- 32 x 3/8

$

$

Not available

8

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 204009GS

CONTROL, Board
(Superseded to 208059GS)

$394.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

-----

* WASHER, Lock 1/4

$

$

Not available

13

Briggs & Stratton 192065GS

BREAKER, Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

14

-----

* NUT, 1/4-20

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL, Neutral

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205110GS

FUSE

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

HOLDER, Fuse

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 197355GS

CLIP, Latching Wire

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B5107GS

DECAL, Connect Gen

$5.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 205478GS

DECAL, CT Warning

$9.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B5106GS

DECAL, Connection, Utility

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192558GS

DECAL, Suit. as Service Equip.

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205061GS

DECAL, 200A, ATS

$20.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 202760GS

DECAL, Not Suitable

$9.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205395GS

DECAL, Warning Shock

$9.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 205115GS

DECAL, Fuse

$9.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 202758GS

DECAL, Disconnect Utility

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 192597GS

DECAL, Sensing, Utility
(Superseded to 704418)

$22.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 193450GS

DECAL, Breaker, Circuit

$5.99

$

Usually ships in 2-12 days

0

30

-----

* SCREW, Hex Head, Trilobular, #10-32 x 3/4

$

$

Not available

31

Briggs & Stratton 202841GS

STANDOFF

$5.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 204428GS

BRACKET, Circuit Breaker Mounting

$36.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 192879GS

INSULATOR, Circuit Breaker

$8.49

$

Usually ships in 2-12 days

0

34

-----

* SCREW, Phillips Head, 1/4-20 x 3/4

$

$

Not available

35

Briggs & Stratton 192881GS

BUS BAR
(Superseded to 319267GS)

$16.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 202361GS

DECAL, Gen Disconnect

$6.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 193159GS

DECAL, Reinstall Barrier
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 209048GS

DECAL
(Superseded to 705919)

$15.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 205402GS

DECAL, Contacts Rating
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 197198GS

DECAL, Wire Circuits
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

42

-----

* SCREW, Hex Head, Trilobular, #8-32 x 3/8

$

$

Not available

43

-----

* WASHER, Lock, #10

$

$

Not available

44

-----

* WASHER, Flat, #10

$

$

Not available

--

Briggs & Stratton 193306GS

SCREW, Bonding

Note: (Not Illustrated)

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 193551GS

DECAL, Service Disconnect

Note: (Not Illustrated)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312837GS

KIT, Manual

Note: (Not Illustrated)

$201.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 209951GS

MANUAL, Operator's

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208899GS

CURRENT TRANSFORMER
(Superseded to 208106GS)

Note: (Not Illustrated)

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192242UGS

WIRE

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 192242VGS

WIRE

Note: (Not Illustrated)

$142.99

$

Usually ships in 2-12 days

0
