071022-0 - Briggs & Stratton 100 Amp Automatic Transfer Switch, SED Transfer Switch Parts Diagram

100 Amp Automatic Transfer Switch, SED

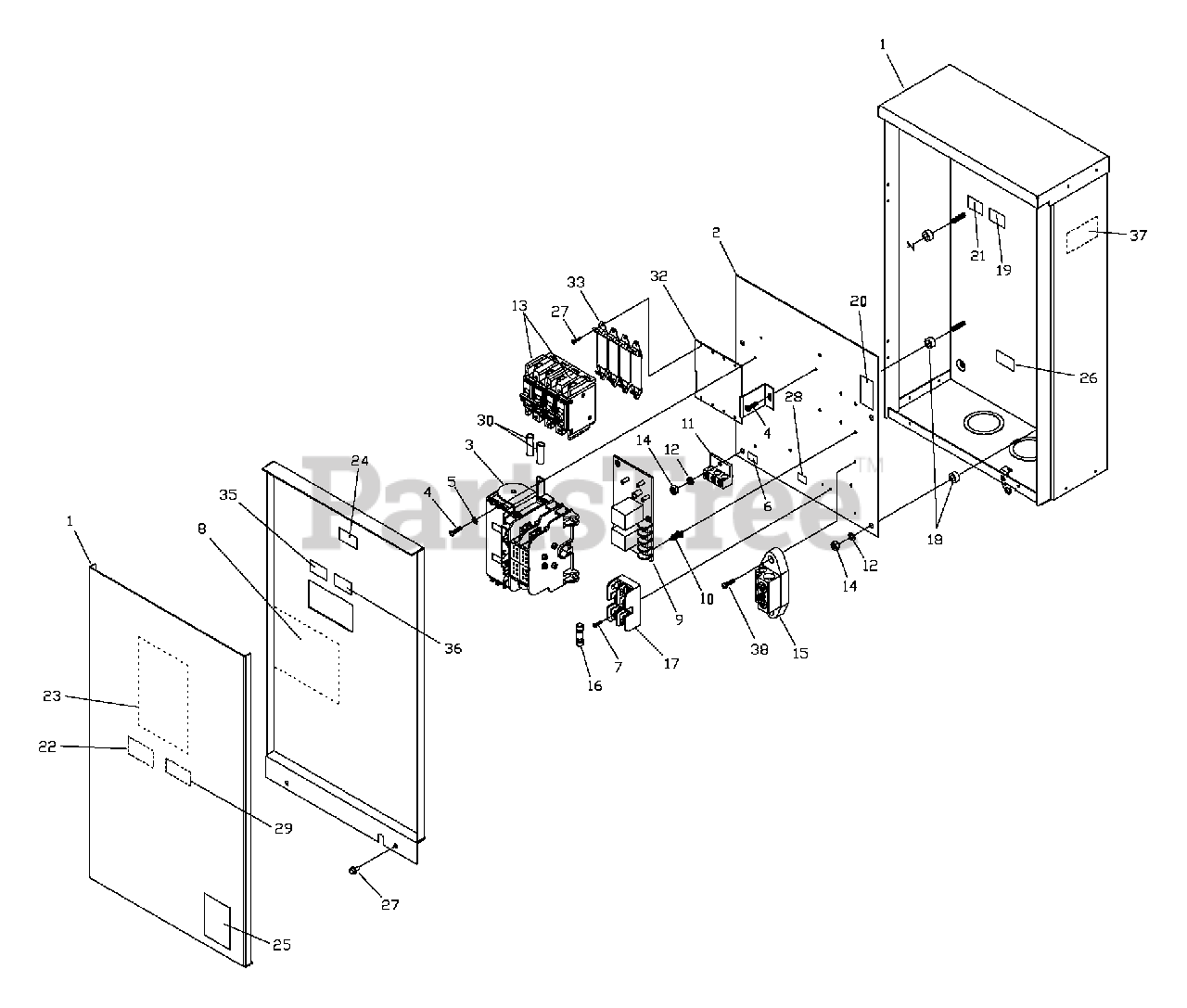

Transfer Switch Parts Diagram

  • Title

1

NSP

ASSY, Enclosure

$

$

Not available

2

NSP

BACK PANEL

$

$

Not available

3

Briggs & Stratton 195667GS

TRANSFER SWITCH, 100A, with Handle
(Superseded to 314865GS)

$979.99

$

Usually ships in 2-12 days

0

4

HHS, Trilobular, #10 - 32 x 1/2"

Note: (Purchase locally)

$

$

Not available

5

WASHER, Ext. Tooth, #10

Note: (Purchase locally)

$

$

Not available

6

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

7

HHS, Trilobular, #6- 32 x 3/8"

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 191668GS

CONTROL, Board

$261.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 197979GS

SPACER, PCB Board, 1/2"

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

GROUND LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

WASHER, Lock 1/4"

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 192882GS

BREAKER Circuit, 100A
(Superseded to 311318GS)

$178.99

$

Usually ships in 2-12 days

0

14

NUT, 1/4" - 20

Note: (Purchase locally)

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL, Neutral

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B4857GS

FUSE
(Superseded to 205110GS)

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

FUSE HOLDER

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B5107GS

DECAL, Connect Gen

$5.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 192702GS

DECAL, Term Strip

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B5106GS

DECAL, Connection, Utility

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192558GS

DECAL, Suit. as Service Equip.

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 200011GS

DECAL, 100A, ATS

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 193159GS

DECAL, Reinstall Barrier
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 190992GS

DECAL, Warning Shock

$5.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 190984GS

DECAL, Fuse

$5.99

$

Usually ships in 2-12 days

0

27

HHS, Trilobular, #8-32 x 3/8

Note: (Purchase locally)

$

$

Not available

28

Briggs & Stratton 192597GS

DECAL, Sensing, Utility
(Superseded to 704418)

$22.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 193450GS

DECAL, Breaker, Circuit

$5.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 193689GS

WIRE, Copper

$10.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 198129GS

BRACKET, Crct Brkr Mntng

$24.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 192770GS

BRACKET, Circuit Breaker

$54.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 202758GS

DECAL, Disconnect Utility

$6.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 202361GS

DECAL, Gen Disconnect

$6.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 202760GS

DECAL, Not Suitable

$9.49

$

Usually ships in 2-12 days

0

38

HHS, Trilobular, #10-32 x 3/4

Note: (Purchase locally)

$

$

Not available

Briggs & Stratton 193306GS

SCREW, 1/4-20 Bndng, w/Envlp

Note: Not Illustrated

$6.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193551GS

DECAL, Service Disconnect

Note: Not Illustrated

$5.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200009GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192242TGS

WIRE-A, 6 Gauge

Note: Not Illustrated

$36.99

$

Usually ships in 2-12 days

0
