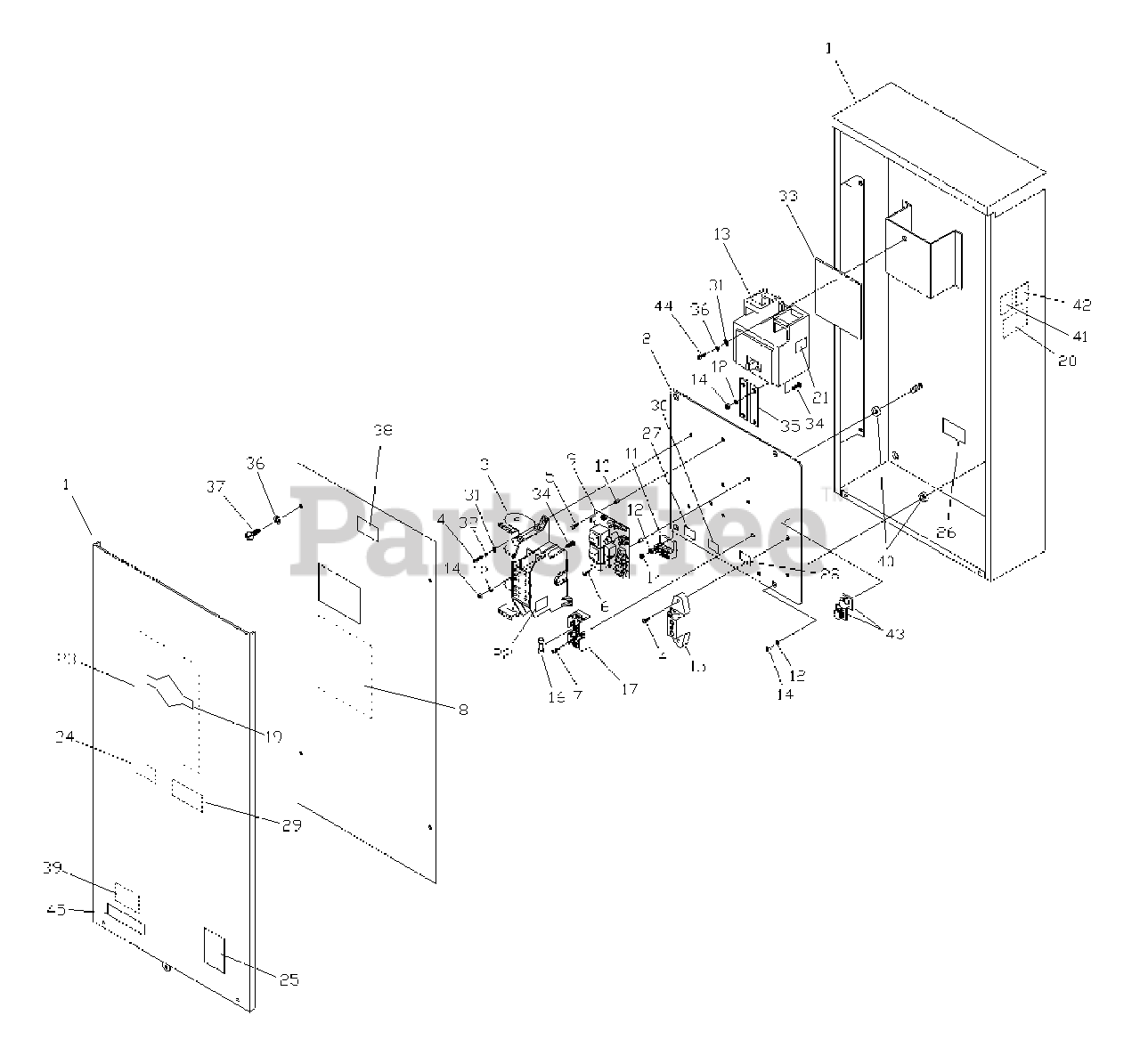

200 Amp Automatic Transfer Switch, ACCM NEMA 3R

Transfer Switch Parts Diagram

  • Title

1

NSP

ASSY, Enclosure

$

$

Not available

2

NSP

BACK PANEL

$

$

Not available

3

Briggs & Stratton 192664GS

TRANSFER SWITCH, 200A, w/Hndle

$809.99

$

Usually ships in 2-12 days

0

4

PPHMS, #10 - 32 x 1/2"

Note: (Purchase locally)

$

$

Not available

5

PPHMS, #6 - 32 x 1/4"

Note: (Purchase locally)

$

$

Not available

6

PPHMS, #6 - 32 x 1/2"

Note: (Purchase locally)

$

$

Not available

7

PPHMS, #6 - 32 x 3/8"

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 193664GS

INSULATION, Dead Front

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 195000GS

CONTROL,Board
(Superseded to 200429GS)

$336.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 196353GS

SPACER, Nylon #6 - 32

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 196094GS

GROUND LUG
(Superseded to 84006973)

$40.99

$

Usually ships in 2-12 days

0

12

WASHER, Lock 1/4"

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 192065GS

BREAKER Circuit, 200A

$207.99

$

Usually ships in 2-12 days

0

14

NUT, 1/4" - 20

Note: (Purchase locally)

$

$

Not available

15

Briggs & Stratton 192696GS

TERMINAL,Neutral

$31.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B4857GS

FUSE
(Superseded to 205110GS)

$31.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192151GS

FUSE HOLDER

$8.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 198136GS

DECAL, B & S Logo

$23.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 196355GS

DECAL, CT Warning

$7.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B5106GS

DECAL, Connection, Utility

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B5107GS

DECAL, Connection, Gnrtr

$5.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 196521GS

DECAL, 200A,ATS

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 192558GS

DECAL, Suit as Srv Equipment

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 190992GS

DECAL, Warning Shock

$5.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 190984GS

DECAL, Fuse

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 192597GS

DECAL, Sensing, Utility
(Superseded to 704418)

$22.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 193450GS

DECAL, Breaker, Circuit

$5.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 193307GS

DECAL, Load

$6.49

$

Usually ships in 2-12 days

0

31

WASHER, Flat, #10

Note: (Purchase locally)

$

$

Not available

32

WASHER, Ext.Tooth, #10

Note: (Purchase locally)

$

$

Not available

33

Briggs & Stratton 192879GS

INSULATION, Circuit Breaker

$8.49

$

Usually ships in 2-12 days

0

34

PPHMS, 1/4-20x 3/4"

$

$

Not available

35

Briggs & Stratton 192881GS

BUS BAR
(Superseded to 319267GS)

$16.99

$

Usually ships in 2-12 days

0

36

LOCKWASHER,#10

Note: (Purchase locally)

$

$

Not available

37

PPHMS, #10 - 32 x 1/4"

Note: (Purchase locally)

$

$

Not available

38

Briggs & Stratton 193159GS

DECAL, Reinstall Barrier
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

39

NSP

DECAL, UL LIsted

$

$

Not available

40

Briggs & Stratton 192150GS

SPACER
(Superseded to 22241GS)

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 197198GS

DECAL,Wire Circuits
(Superseded to 704420)

$16.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 197294GS

DECAL,Contacts Rating

$5.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 197355GS

CLIP, Latching Wire

$2.49

$

Usually ships in 2-12 days

0

44

PPHMS,#10 - 32 x 3/4"

Note: (Purchase locally)

$

$

Not available

45

Briggs & Stratton 198615GS

DECAL,Intelligen Logo

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 195728GS

CURRENT TRANSFORMER

Note: Not Illustrated

$48.99

$

Usually ships in 2-12 days

0
