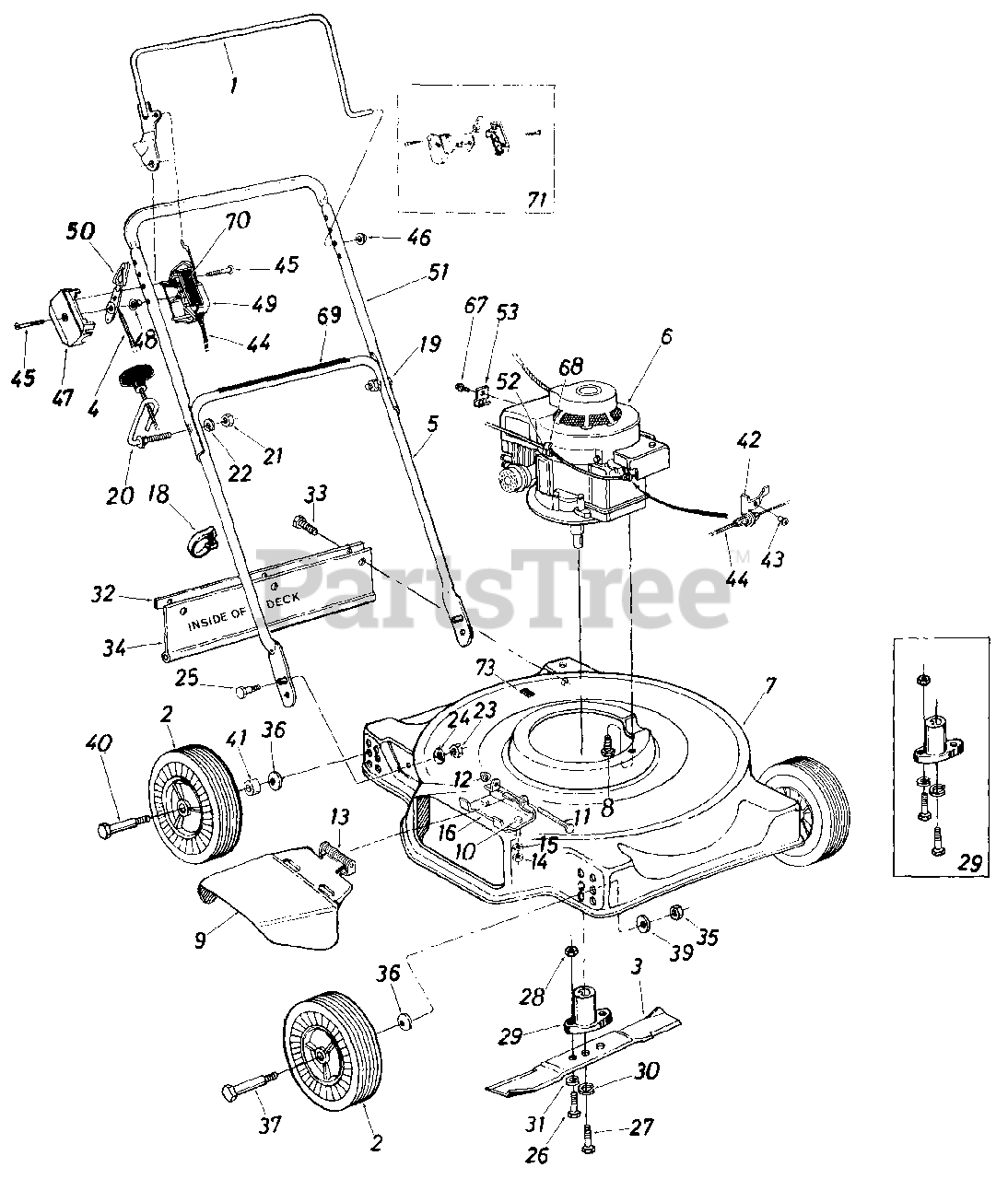

070 (114-070-100) - Cub Cadet 20" ERS Walk-Behind Mower (1984) Rotary Mower Parts Diagram

20" ERS Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 14320

Control Handle Ass'y. - R.H.

$

$

Not available

2

Cub Cadet 734-1161

Wheel Ass'y. Comp.

$

$

Not available

3

Cub Cadet 742-0123

20" Blade

$

$

Not available

4

Cub Cadet 746-0473

Throttle Control Wire - 39"
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

6

Engine

$

$

Not available

7

Cub Cadet 14994

20" Deck Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

8

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

10

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

11

Cub Cadet 711-0555

Hinge Pin 1/4" Dia. x 3.88 Lg.

$

$

Not available

12

Cub Cadet 726-0106

Push Cap .25" Rod

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-0253

Torsion Spring

$

$

Not available

14

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 11130

Deflector Hinge Plate

$

$

Not available

18

Cub Cadet 726-0192

Cable Tie

$

$

Not available

19

Cub Cadet 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

20

Cub Cadet 710-0842

Rope Guide Bolt

$

$

Not available

21

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

Note: (070 & 080)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 738-0296

Shld. Bolt .437" Dia. x .268

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special

$4.49

$

In Stock, Qty 5

0

27

Cub Cadet 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

28

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

29

Cub Cadet 753-0348

Blade Adapter Kit

$

$

Currently unavailable

30

Cub Cadet 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 9

0

31

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 14846

Retainer Strip

Note: Code N

$

$

Not available

33

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0213

Front Axle Bolt

$7.99

$

In Stock, only 2 left!

0

39

Cub Cadet 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 16

0

40

Cub Cadet 738-0509

Rear Axle Bolt

$

$

Not available

41

Cub Cadet 750-0515

Spacer .511 I.D. x .70" O.D.

$4.49

$

In Stock, only 4 left!

0

42

Cub Cadet 14924

Cable Bracket

$

$

Not available

43

Cub Cadet 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

44

Cub Cadet 746-0477

Control Cable - 43" (Yellow)
(Superseded to 946-0477A)

$

$

Not available

45

Cub Cadet 710-0796

Truss Mach. Scr. #12 x 1.50"

$5.49

$

In Stock, only 1 left!

0

46

Cub Cadet 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

47

Cub Cadet 731-0523

Control Panel Half

$

$

Not available

48

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

49

Cub Cadet 731-0526

Clutch Panel Half

$

$

Not available

50

Cub Cadet 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

51

Cub Cadet 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

52

Cub Cadet 710-0429

Hex "B" Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 751-0369

Casing Clamp

Note: Code N

$

$

Not available

67

Cub Cadet 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 15

0

68

Cub Cadet 12894

Cable Clip

$

$

Not available

69

Cub Cadet 777-3455

Instruction Label - Handle

$

$

Not available

70

Cub Cadet 777-3458

Control Label - Throttle

$

$

Currently unavailable

71

Cub Cadet 753-0360

Kit - Control Housing Comp.

$

$

Not available

73

Cub Cadet 731-0564

Plastic Plug

$

$

Not available

Cub Cadet 8070-100-4

Hardware Pack

$

$

Currently unavailable
