07-60VZ01 - Toro 60" Vacuum Bagger (SN: 020000001 - 029999999) (1992) CANISTER & FRAME ASSEMBLY Parts Diagram

60" Vacuum Bagger

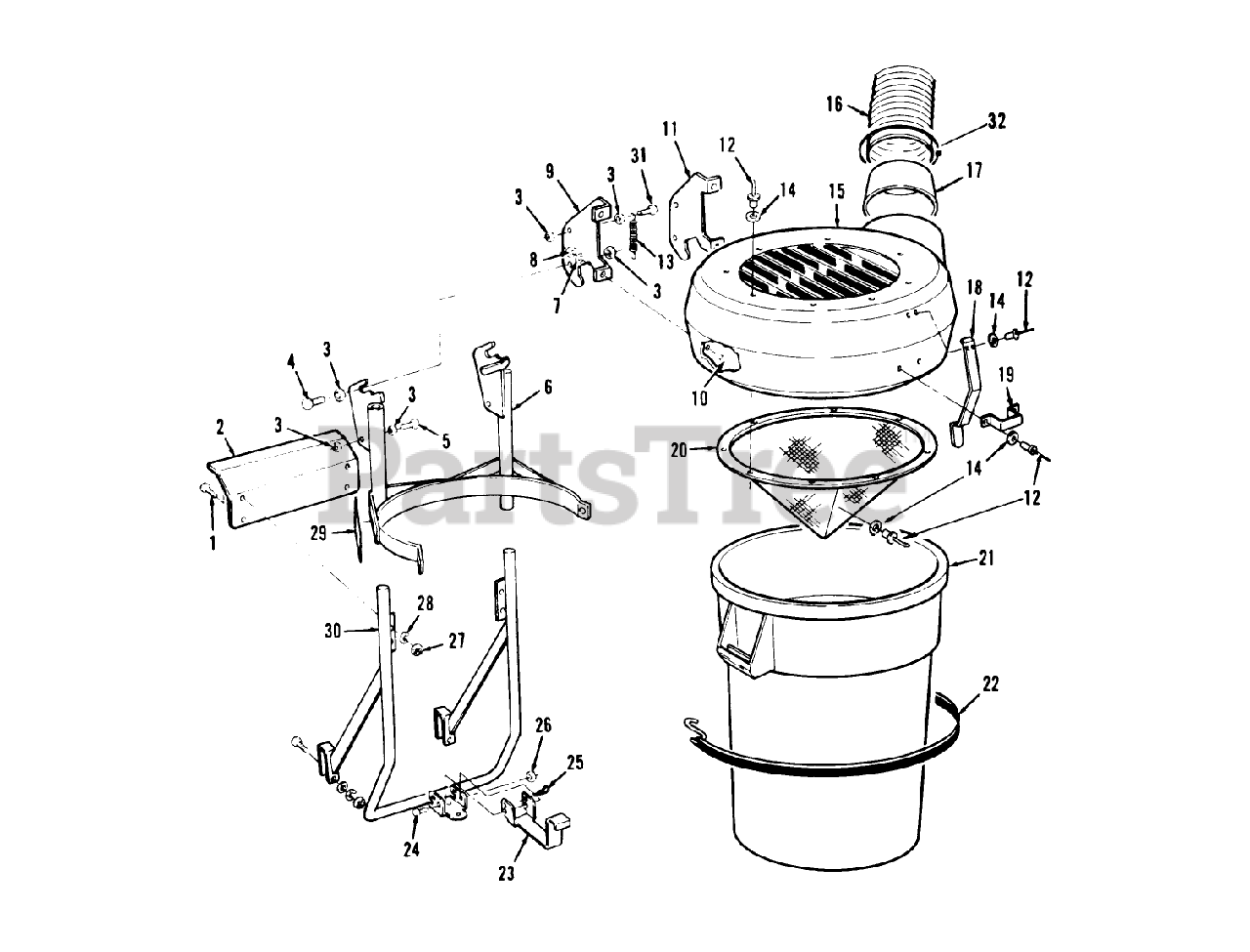

CANISTER & FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 78-9760

SHIELD-HEAT B

$74.99

$

Usually ships in 3-6 days

0

3

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

6

Toro 78-0550

Support-Canister
(Superseded to 93-1638)

$486.99

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

9

Toro 78-0610

LH TOP BRACKET B

$

$

Not available

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 78-0620

RH TOP BRACKET B

$

$

Not available

12

Toro 79-0470

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

13

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

14

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

15

Toro 78-0700

TOP-CANISTER

$

$

Not available

16

Toro 79-0920

HOSE 6" X 48"

$

$

Not available

17

Toro 79-0410

SEAL ASSEMBLY NP

$

$

Not available

18

Toro 78-6570

LATCH-BAGGER TOP B

$

$

Not available

19

Toro 78-9280

BRACKET B

$36.99

$

Usually ships in 3-6 days

0

20

Toro 78-6580

SCREEN-BAGGER TOP

$

$

Not available

21

Toro 79-0130

CANISTER

$

$

Not available

22

Toro 78-7830

STRAP B

$

$

Not available

23

Toro 78-9930

BRACKET-SUPT B

$

$

Not available

24

Toro 908069

Screw-Cap Hex. Hd.

$

$

Currently unavailable

25

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

26

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 79-3970

DECAL-DANGER

$

$

Not available

30

Toro 78-0630

MOUNT-BAGGER W.A. B

$

$

Not available

31

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

$10.99

$

Usually ships in 3-6 days

0
