07-60VZ01 - Toro 60" Vacuum Bagger (SN: 020000001 - 029999999) (1992) BLOWER ASSEMBLY Parts Diagram

60" Vacuum Bagger

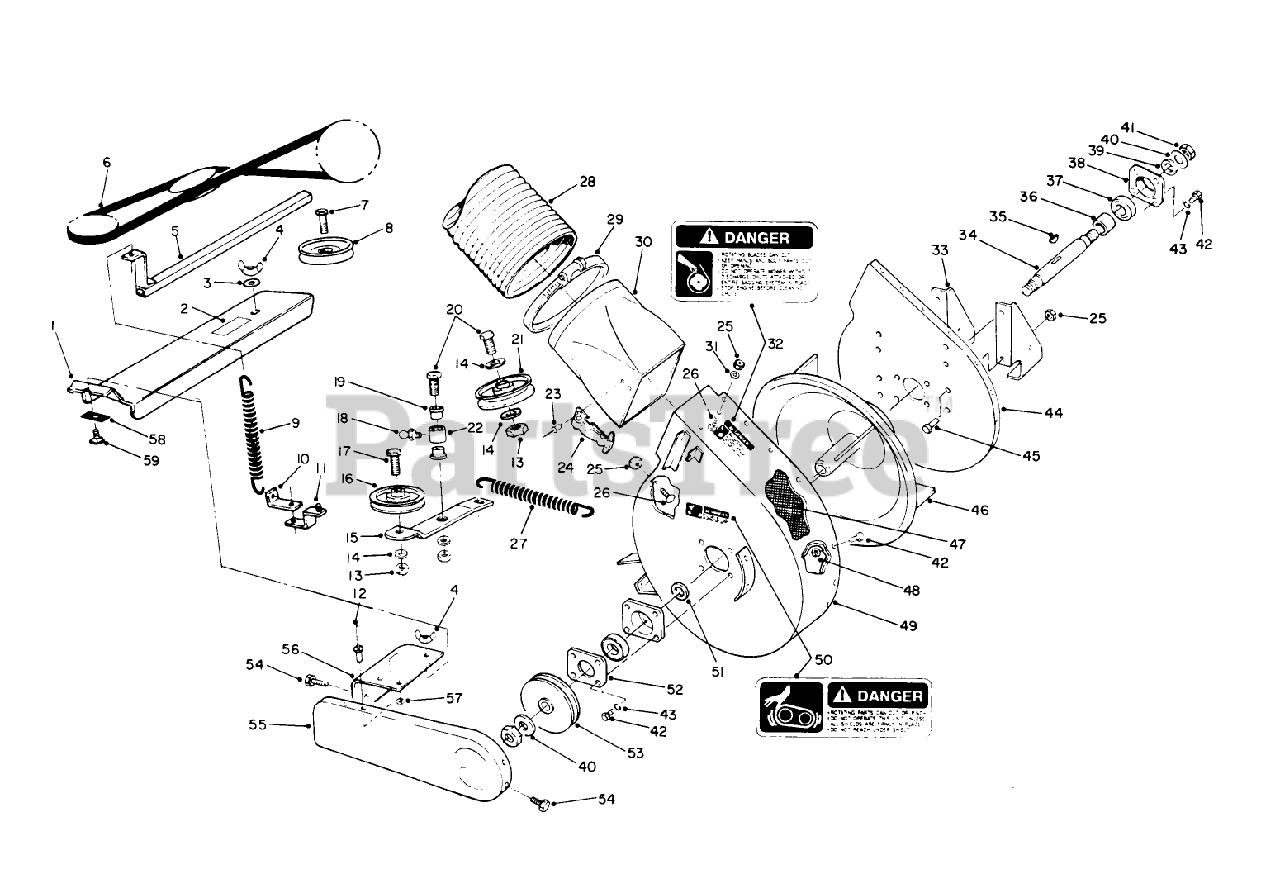

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 78-6550

Cover-Belt
(Superseded to 93-1635)

$134.99

$

Usually ships in 3-6 days

0

2

Toro 79-0350

DECAL-DANGER

$

$

Not available

3

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

4

Toro 32103-23

NUT-WING, LOCK

$

$

Not available

5

Toro 78-9510

SUPPORT-WELDED B

$121.99

$

Usually ships in 3-6 days

0

6

Toro 108960

V-BELT

$61.99

$

Usually ships in 3-6 days

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

8

Toro 78-0720

PULLEY

$128.99

$

Usually ships in 3-6 days

0

9

Toro 79-0020

SPRING-EXTENSION

$

$

Not available

10

Toro 79-0010

BRACKET-ANGLE B

$

$

Not available

11

Toro 78-9690

Bracket
(Superseded to 78-9690-03)

$53.99

$

Usually ships in 3-6 days

0

12

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 78-0750

ARM-IDLER-WELDED B

$

$

Not available

16

Toro 115119

Pulley-Idler
(Superseded to 92-7084)

$38.99

$

In Stock, only 1 left!

0

17

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

19

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

20

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 115118

"V" Pulley
(Superseded to 92-7099)

$69.99

$

In Stock, only 1 left!

0

22

Toro 114511

SPACER

$72.99

$

Usually ships in 3-6 days

0

23

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

24

Toro 117344

HANDLE ASM

$35.99

$

In Stock, only 1 left!

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 116172

SPRING - EXTENSION

$43.99

$

Usually ships in 3-6 days

0

28

Toro 79-0920

HOSE 6" X 48"

$

$

Not available

29

Toro 102528

CLAMP

$12.99

$

Usually ships in 3-6 days

0

30

Toro 79-0900

ADAPTER

$391.99

$

Usually ships in 3-6 days

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 79-0360

DECAL-DANGER

$

$

Not available

33

Toro 78-5560

BRACKET-BLOWER MT B

$65.99

$

Usually ships in 3-6 days

0

34

Toro 78-5410

SHAFT- BLOWER

$

$

Not available

35

$9.49

$

In Stock, only 1 left!

0

36

Toro 7989

SPACER

$14.99

$

In Stock, only 2 left!

0

37

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

38

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 2 left!

0

39

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

40

Toro 920260

WASHER-SPECIAL

$2.49

$

In Stock, only 4 left!

0

41

Toro 3218-12

NUT 5/8-11 L.H.

$7.49

$

Usually ships in 3-6 days

0

42

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

44

Toro 78-6491

Plate-Mount
(Superseded to 93-1637)

$

$

Not available

45

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 79-1961

IMPELLER - WELDED BLACK

$1282.99

$

Usually ships in 3-6 days

0

47

Toro 79-1880

STRIP-WEAR

$

$

Not available

48

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

49

Toro 78-5441

Blower
(Superseded to 93-1636)

$

$

Not available

50

Toro 79-0350

DECAL-DANGER

$

$

Not available

51

Toro 63-9710

SPACER-BEARING

$12.99

$

In Stock, only 1 left!

0

52

Toro 63-9700

Cover-Plate
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 3 left!

0

53

Toro 78-0730

PULLEY-BLOWER R

$140.99

$

In Stock, only 1 left!

0

54

Toro 9266693

Screw-Hex. Flange Hd.

$

$

Currently unavailable

55

Toro 78-5450

SHIELD

$

$

Not available

56

Toro 78-9120

SHIELD-PULLEY B

$

$

Not available

57

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

58

Toro 78-7830

STRAP B

$

$

Not available

59

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

Toro 322-5

SCREW-HH

Note: Not illustrated

$0.99

$

In Stock, Qty 20+

0

Toro 78-6530

DEFLECTOR-BLOWER B

Note: Not illustrated

$202.99

$

Usually ships in 3-6 days

0

Toro 78-6520

BAFFLE W.A. B

Note: Not illustrated

$166.99

$

Usually ships in 3-6 days

0

Toro 325-4

SCREW-HH

Note: Not illustrated

$1.49

$

In Stock, only 2 left!

0
