07-52VY01 - Toro 52" Vacuum Bagger (SN: 020000001 - 029999999) (1992) CANISTER & FRAME ASSEMBLY Parts Diagram

52" Vacuum Bagger

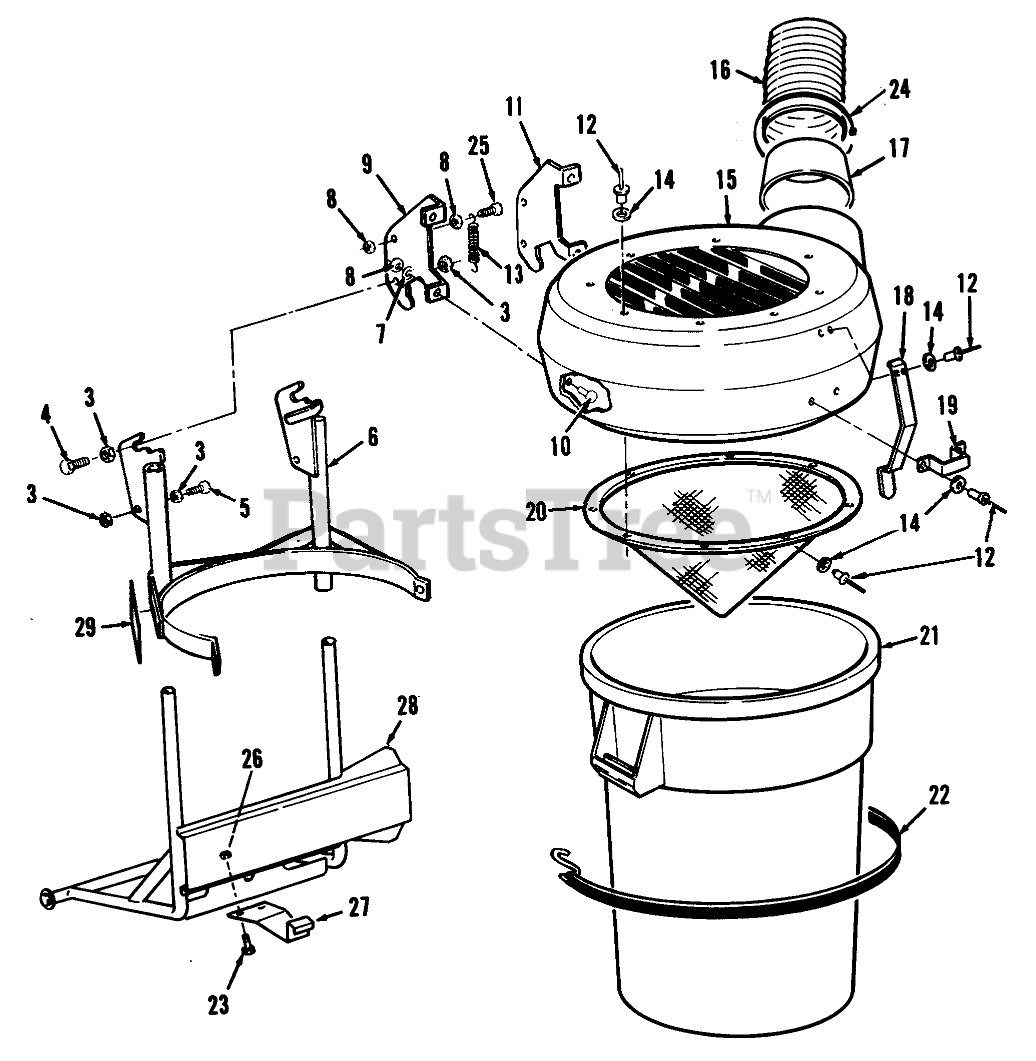

CANISTER & FRAME ASSEMBLY Parts Diagram

  • Title
3

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

6

Toro 78-0550

Support-Canister
(Superseded to 93-1638)

$565.99

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 78-0610

LH TOP BRACKET B

$

$

Not available

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 78-0620

RH TOP BRACKET B

$

$

Not available

12

Toro 79-0470

RIVET-POP

$

$

Not available

13

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 3 left!

0

14

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

15

Toro 78-0700

TOP-CANISTER

$

$

Not available

16

Toro 79-0920

HOSE 6" X 48"

$

$

Not available

17

Toro 79-0410

SEAL ASSEMBLY NP

$

$

Not available

18

Toro 78-6570

LATCH-BAGGER TOP B

$

$

Not available

19

Toro 78-9280

BRACKET B

$41.99

$

Usually ships in 3-6 days

0

20

Toro 78-6580

SCREEN-BAGGER TOP

$

$

Not available

21

Toro 79-0130

CANISTER

$

$

Not available

22

Toro 78-7830

STRAP B

$

$

Not available

23

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

$11.99

$

Usually ships in 3-6 days

0

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

27

Toro 79-1840

BRKT-CANISTER SUP B

$215.99

$

Usually ships in 3-6 days

0

28

Toro 79-1860

WLDMT-BAGGER RODS B

$

$

Not available

29

Toro 79-3970

DECAL-DANGER

$

$

Not available
