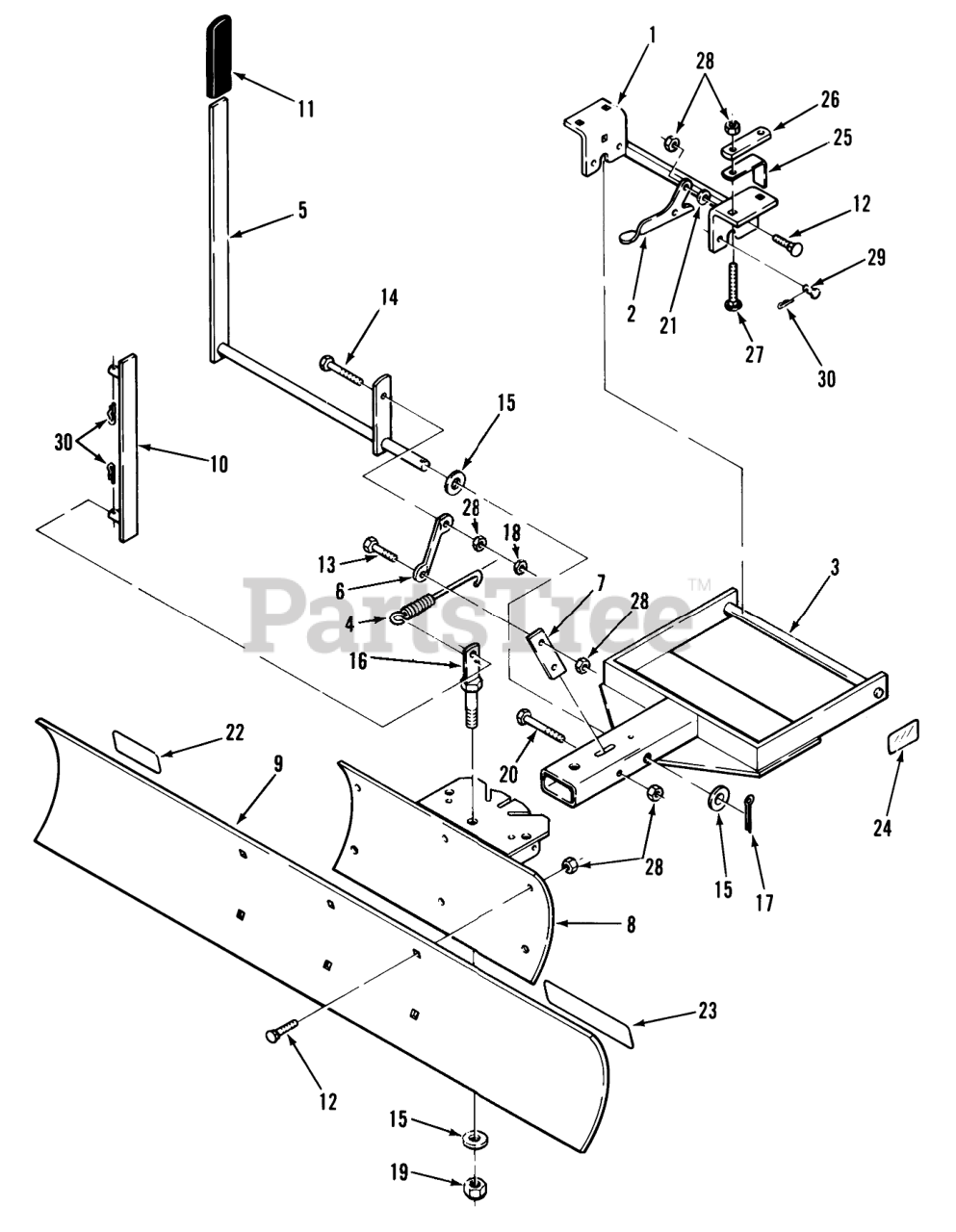

07-50BM02 - Toro 50" Grader Blade (1986) MID-MOUNT GRADER BLADE-50" (127 CM) VEHICLE IDENTIFICATION NUMBER 07-50BM02 Parts Diagram

50" Grader Blade

MID-MOUNT GRADER BLADE-50" (127 CM) VEHICLE IDENTIFICATION NUMBER 07-50BM02 Parts Diagram

  • Title
1

Toro 104659

Bracket
(Superseded to 104659-01)

$199.99

$

Usually ships in 3-6 days

0

2

Toro 104657

PLATE-LATCHING

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$42.99

$

Usually ships in 3-6 days

0

3

Toro 113154

ASS'Y-FRAME R

$

$

Not available

4

Toro 102572

SPRING

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$23.99

$

Usually ships in 3-6 days

0

5

Toro 113155

ASS'Y-LATCH HANDL R

$187.99

$

Usually ships in 3-6 days

0

6

Toro 113156

Latch Link
(Superseded to 113156-01)

$

$

Not available

7

Toro 113157

Latch
(Superseded to 113157-01)

$

$

Not available

8

Toro 113158

ASS'Y-QUADRANT
(Superseded to 113158-03)

$512.99

$

Usually ships in 3-6 days

0

9

Toro 103626

Blade
(Superseded to 92-6317)

$

$

Not available

10

Toro 113160

Lift Link
(Superseded to 92-0983-01)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$

$

Not available

11

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

12

Toro 900063

Bolt
(Superseded to 323-12)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$2.49

$

In Stock, Qty 10

0

13

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

14

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

15

Toro 920015

Washer
(Superseded to 3256-28)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$3.49

$

In Stock, Qty 20+

0

16

Toro 113159

Wa-Scrw
(Superseded to 113159-03)

$

$

Not available

17

Toro 932018

Cotter Pin
(Superseded to 3272-12)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$0.99

$

In Stock, Qty 17

0

18

Toro 109779

NUT-HEX, JAM

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$

$

Not available

19

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

20

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, only 4 left!

0

21

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$0.99

$

In Stock, Qty 15

0

22

Toro 112687

DECAL-CAUTION

$

$

Not available

23

Toro 111183

DECAL WHEEL HORSE

$

$

Not available

24

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

25

Toro 7713

SPACER-BRACKET

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$

$

Not available

26

Toro 3697

BRACKET-REAR LINK MOUNTING

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$34.99

$

Usually ships in 3-6 days

0

27

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$5.49

$

In Stock, only 2 left!

0

28

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$2.99

$

In Stock, Qty 8

0

29

Toro 932120

Pin
(Superseded to 9321204)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$4.99

$

Usually ships in 3-6 days

0

30

Toro 933504

Hairpin
(Superseded to 9335044)

Note: Indicates part of LOOSE PARTS PACKAGE Num 807138

$1.49

$

In Stock, Qty 13

0
