07-4XVS01 - Toro 42"/48" Easy Twin Vacuum Bagger (SN: 020000001 - 029999999) (1992) BAG TOP & FRAME ASSEMBLY Parts Diagram

42"/48" Easy Twin Vacuum Bagger

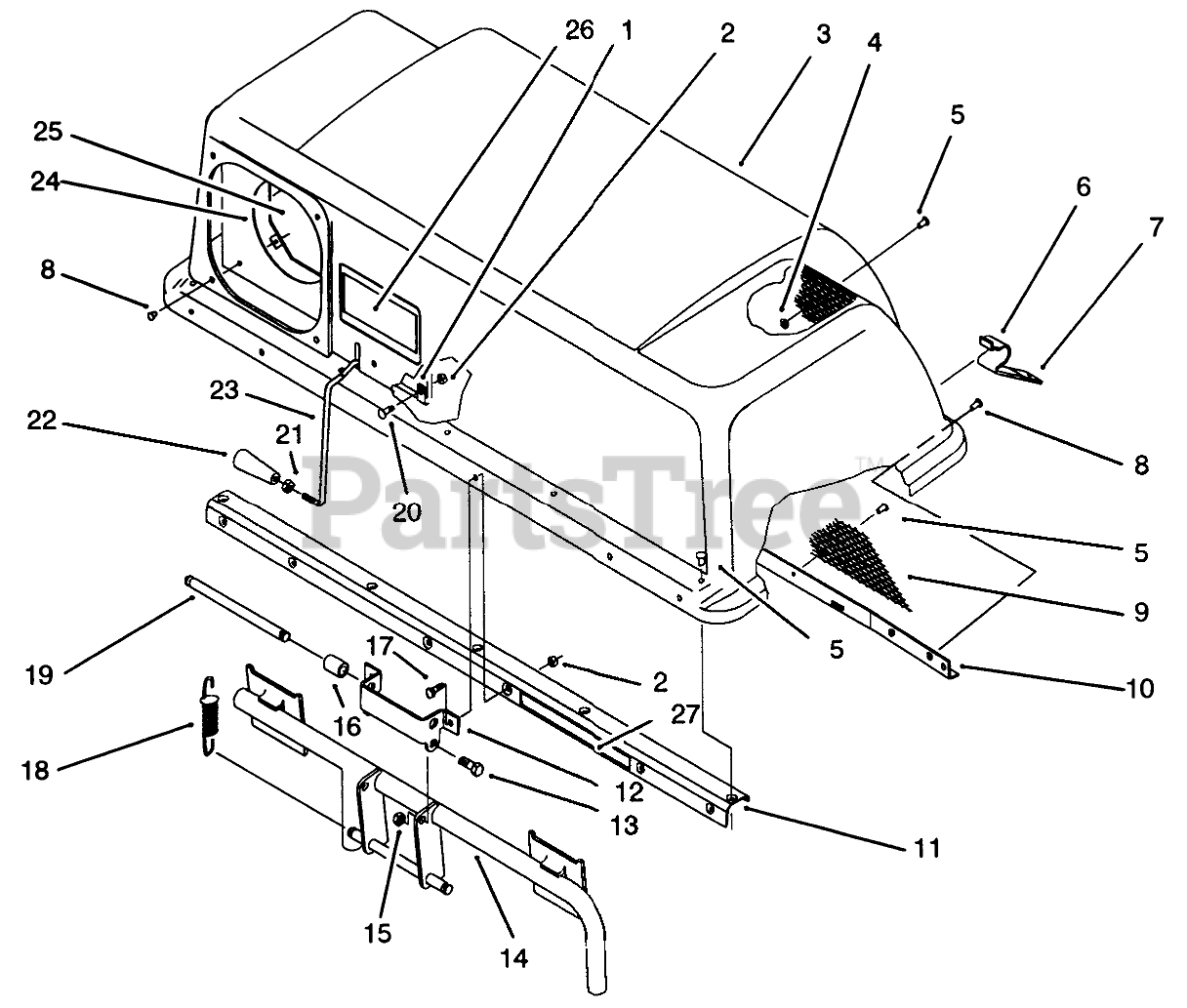

BAG TOP & FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 116130

Clip
(Superseded to 2412-91)

$3.99

$

In Stock, only 2 left!

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 114963

TOP-BAGGER

$

$

Not available

4

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

5

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

6

Toro 115481

Latch-Bag
(Superseded to 115481-03)

$12.99

$

In Stock, only 4 left!

0

7

Toro 115880

GRIP

$5.49

$

In Stock, Qty 6

0

8

Toro 116355

Pop Rivet

$

$

Not available

9

Toro 114967

SCREEN-BAGGER

$37.99

$

In Stock, only 3 left!

0

10

Toro 115879

SUPPORT-SCREEN B
(Superseded to 92-1736-03)

$51.99

$

Usually ships in 3-6 days

0

11

Toro 88-9570

Stiffener Assembly (Incl Ref. #27)

$97.99

$

Usually ships in 3-6 days

0

12

Toro 114961

HINGE-BAG TOPB
(Superseded to 114961-03)

$17.99

$

Usually ships in 3-6 days

0

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 114955

FRAME ASM
(Superseded to 114955-03)

$256.99

$

Usually ships in 3-6 days

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 979094

SPACER
(Superseded to 9790944)

$2.99

$

In Stock, only 2 left!

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 114962

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

19

Toro 114960

PIN-SPRING

$27.99

$

In Stock, only 1 left!

0

20

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

21

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

22

Toro 118320

HANDLE-TAPERED

$

$

Not available

23

Toro 114969

FEELER-FILL, BAG

$

$

Not available

24

Toro 117239

SEAL-CHUTE

$81.99

$

Usually ships in 3-6 days

0

25

Toro 114966

CLAMP-SEAL

$70.99

$

Usually ships in 3-6 days

0

26

Toro 116347

DECAL

$17.99

$

Usually ships in 3-6 days

0

27

Toro 79-7410

Decal
(Superseded to 92-7113)

$

$

Not available
