07-4XVC01 - Toro 42"/48" Vacuum Bagger (SN: 020000001 - 029999999) (1992) SHIELD ASSEMBLY (42" CUTTING UNIT) Parts Diagram

42"/48" Vacuum Bagger

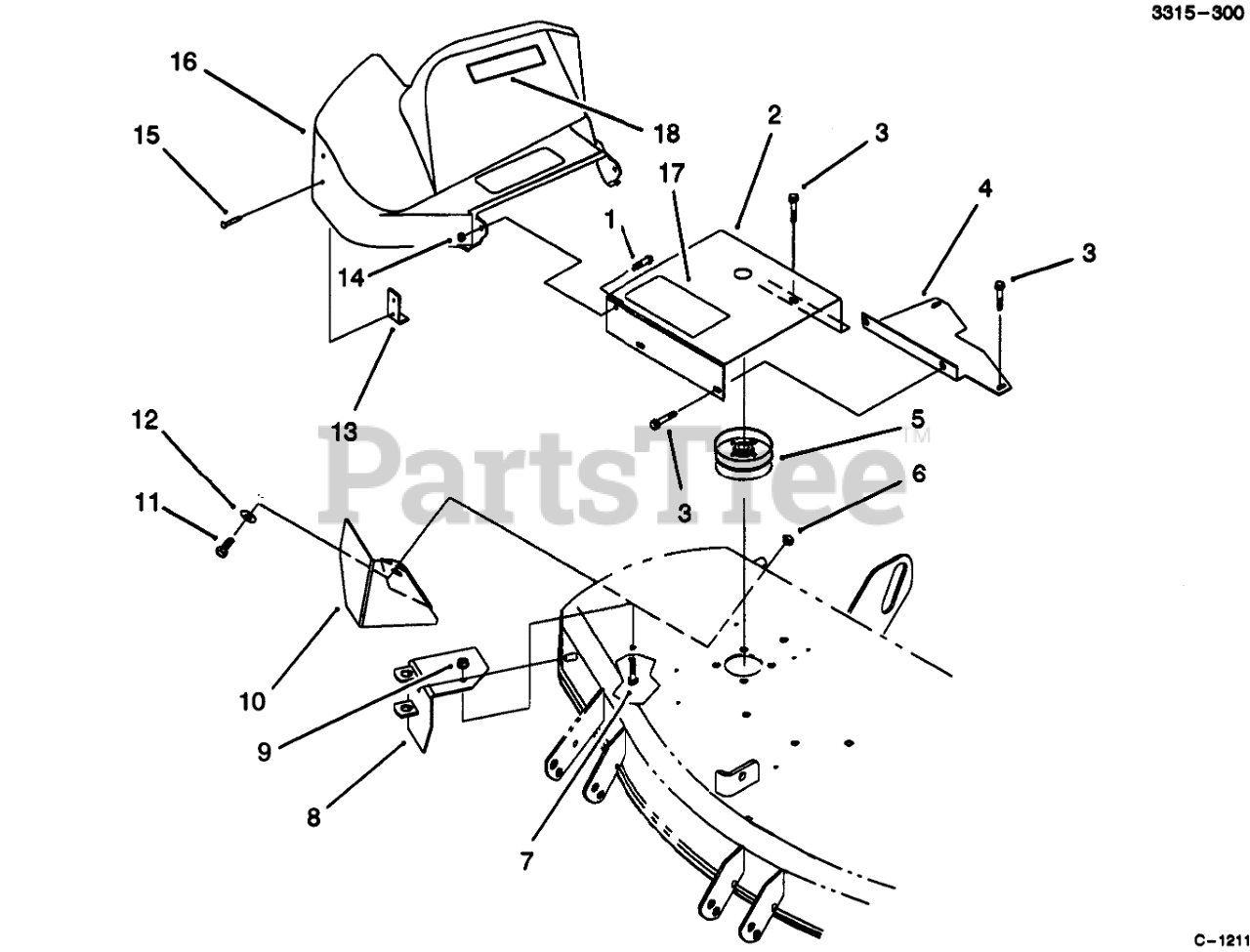

SHIELD ASSEMBLY (42" CUTTING UNIT) Parts Diagram

  • Title

1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 92-1161

Inner Shield Assembly (Incl. Ref. #17)

$

$

Not available

3

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

4

Toro 79-7120

42" ADAPTOR SHIELD B
(Superseded to 79-7120-03)

$34.99

$

Usually ships in 3-6 days

0

5

Toro 79-7310

PULLEY

$73.99

$

Usually ships in 3-6 days

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 79-7000

PIVOT SUPPORT ASM
(Superseded to 79-7000-03)

$124.99

$

Usually ships in 3-6 days

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 79-7300

42" DEFLECTOR B
(Superseded to 79-7300-03)

$77.99

$

Usually ships in 3-6 days

0

11

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 79-0470

RIVET-POP

$

$

Not available

16

Toro 86-9300

SHIELD-BELT

$

$

Not available

17

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

18

Toro 79-7620

DECAL - DANGER

$

$

Not available
