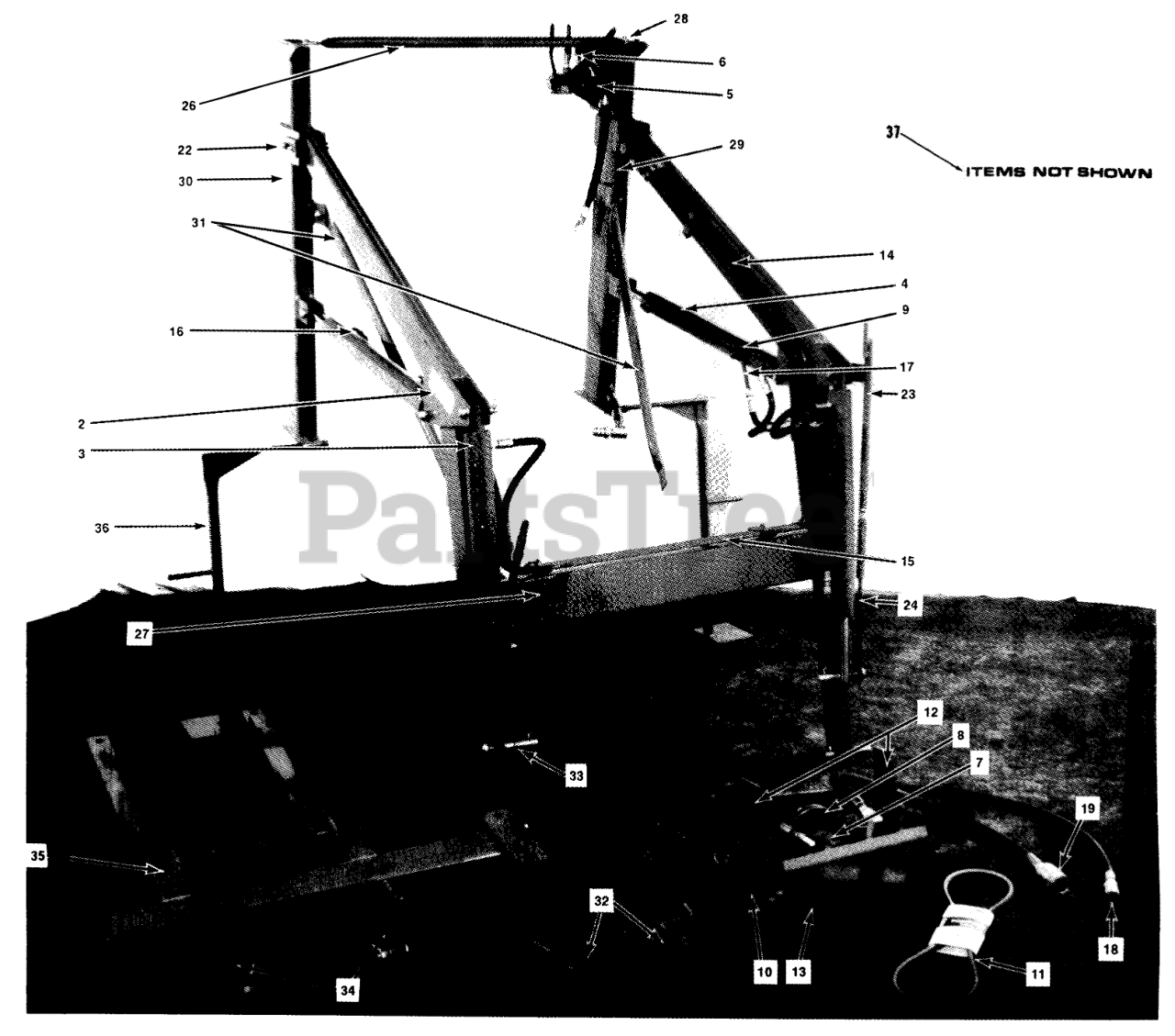

07-48FL01 - Toro 48" Bucket Loader (1982) PARTS LIST FOR FRONT LOADER VEHICLE IDENTIFICATION NUMBER 07-48FL01 Parts Diagram

48" Bucket Loader

PARTS LIST FOR FRONT LOADER VEHICLE IDENTIFICATION NUMBER 07-48FL01 Parts Diagram

  • Title

2

Toro 20028

Decal, Wheel Horse

$

$

Currently unavailable

3

Tecumseh 21030

Tilt Cylinder

$

$

Currently unavailable

4

Toro 21031

Lift Cylinder

$

$

Currently unavailable

5

Toro 22001.1

Control VaIve

$

$

Currently unavailable

6

Toro 22020

Valve Handle (with Cover)

$

$

Currently unavailable

6

Toro 22016

Black Vinyl Cover

$

$

Currently unavailable

7

23001.1

Pump

$

$

Not available

8

Tecumseh 23003

Pulley

$

$

Currently unavailable

9

Toro 23042

52014/15/90A RER 34

$3.49

$

Usually ships in 3-6 days

0

10

Toro 230934

Pump Mounting Plate
(Superseded to 741820)

$

$

Not available

11

Tecumseh 23100

1402A GIL DOZER BLA

$

$

Currently unavailable

12

Toro 230933-L

Pump Mounting Bracket LH

$

$

Currently unavailable

12

Toro 230933-R

Pump Mounting Bracket RH

$

$

Currently unavailable

13

Toro 230938

Pump Guard

$

$

Currently unavailable

14

Toro 230915

Hydraulic Line

$

$

Currently unavailable

15

Toro 23701

Hydraulic Line
(Superseded to 742232)

$

$

Not available

16

Toro 23709-L

Hydraulic Cylinder Tube LH

$

$

Currently unavailable

17

Toro 23709-R

Hydraulic Cylinder Tube RH

$

$

Currently unavailable

18

Toro 23913

Quick Coupler 3/8 (Pressure Hose)

$

$

Currently unavailable

19

Toro 23914

Quick Coupler 1/2 (Suction Hose)

$

$

Currently unavailable

22

Toro 24034

Lift Frame Pin

$

$

Currently unavailable

23

Toro 24036

Bucket Guide Tube

$

$

Currently unavailable

24

Toro 24039

Bucket Guide Rod

$

$

Currently unavailable

26

Tecumseh 24050

Stabilizer Bar

$

$

Currently unavailable

27

Tecumseh 24400

Lift Frame

$

$

Currently unavailable

28

Tecumseh 25009

Breather Cap

$

$

Currently unavailable

29

Toro 25098.1-L

Upright LH

$

$

Currently unavailable

30

25098.1-R

Upright RH

$

$

Not available

31

Tecumseh 26089

1840A 1973 OPC

$

$

Currently unavailable

32

Toro 26088-L

Front Mounting Bracket LH

$

$

Currently unavailable

32

Toro 26088-R

Front Mounting Bracket RH

$

$

Currently unavailable

33

Tecumseh 21028

Cylinder Spacer/Bushing

$

$

Currently unavailable

34

Toro 27115.1-L

Mounting Frame Hanger LH

$

$

Currently unavailable

34

Toro 27115.1-R

Mounting Frame Hanger RH

$

$

Currently unavailable

35

Tecumseh 27116

Mounting Frame
(Superseded to 650506)

$1.49

$

In Stock, Qty 17

0

36

Toro 28018.1

Dismount Stand

$

$

Currently unavailable

37

Toro 20037

Caution Decal

$

$

Currently unavailable

37

Toro 24028

Hydraulic Line Bracket

$

$

Currently unavailable

37

Toro 24027

Hydraulic Line Hold Down

$

$

Currently unavailable

37

Tecumseh 24043

Grease Fitting

$

$

Currently unavailable

37

Tecumseh 27059

Bushing (Guide Rod)

$

$

Currently unavailable

37

Tecumseh 28731

Bucket 48 in. (122 cm)

$

$

Currently unavailable

37

Tecumseh 29804

Ballast Box w/Brackets & Braces

$

$

Currently unavailable

37

Tecumseh 290311

Ballast Box Bracket

$

$

Currently unavailable

37

Tecumseh 290316

Ballast Box Brace

$

$

Currently unavailable
