07-42VY01 - Toro 42" Easy Twin Vacuum Bagger (SN: 020000001 - 029999999) (1992) SHIELD ASSEMBLY Parts Diagram

42" Easy Twin Vacuum Bagger

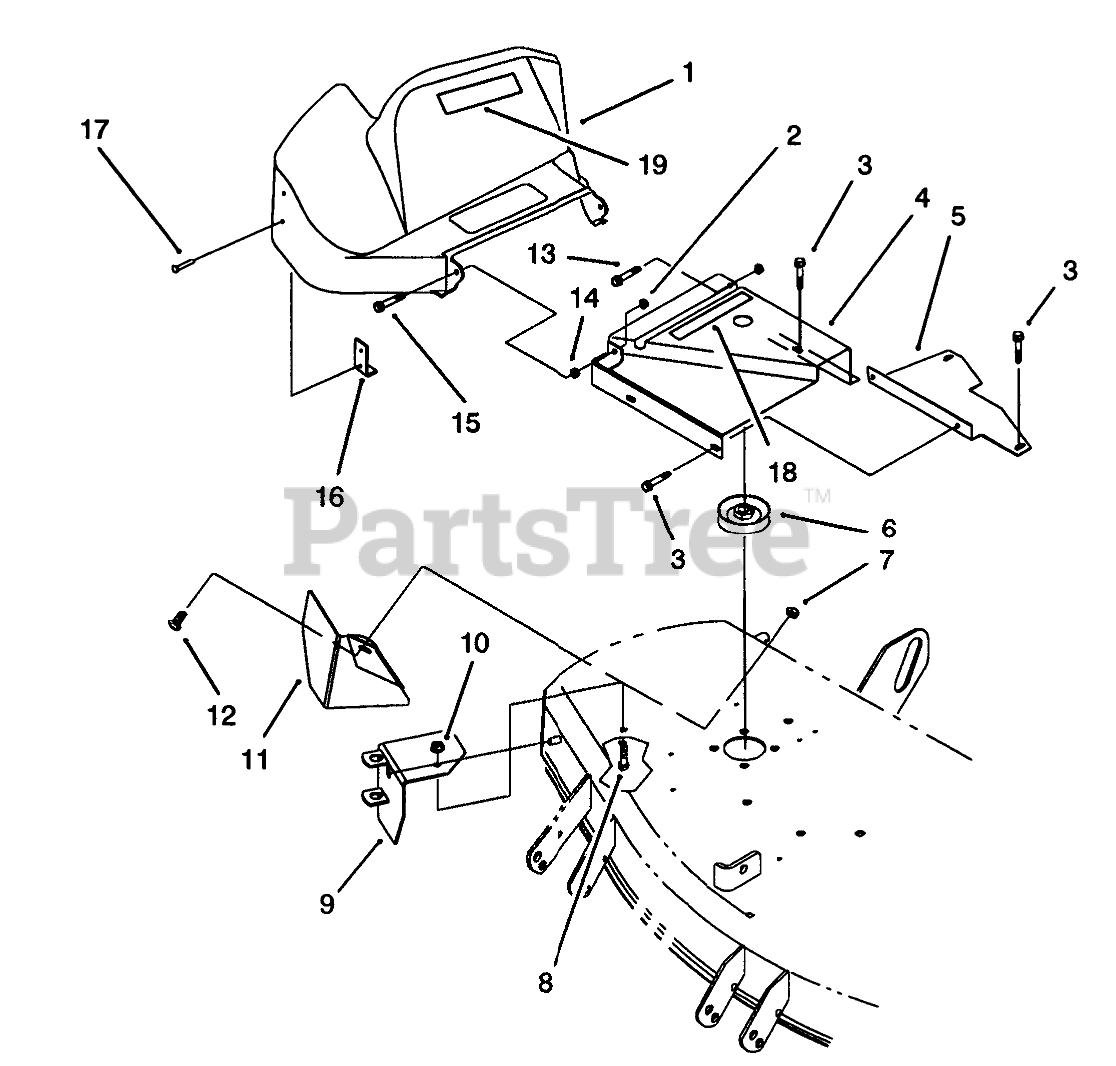

SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro 86-9300

SHIELD-BELT

$304.99

$

Usually ships in 3-6 days

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

4

Toro 92-1158

Inner Shield Assembly (Incl. Ref. #18)

$

$

Not available

5

Toro 79-7120

42" ADAPTOR SHIELD B
(Superseded to 79-7120-03)

$30.99

$

Usually ships in 3-6 days

0

6

Toro 79-7150

42" Y PULLEY

$

$

Not available

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 79-7000

PIVOT SUPPORT ASM
(Superseded to 79-7000-03)

$106.99

$

Usually ships in 3-6 days

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 79-7300

42" DEFLECTOR B
(Superseded to 79-7300-03)

$66.99

$

Usually ships in 3-6 days

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

15

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

16

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$11.99

$

Usually ships in 3-6 days

0

17

Toro 79-0470

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

18

Toro 79-7610

DECAL - DANGER

$

$

Not available

19

Toro 79-7620

DECAL - DANGER

$

$

Not available
