07-42VX01 - Toro 42" Lawn Vacuum Attachment (1981) REAR GRASS BAGGER-5 BUSHEL (.2 CU. M) VEHICLE IDENTIFICATION NUMBER 07-06CL01 Parts Diagram

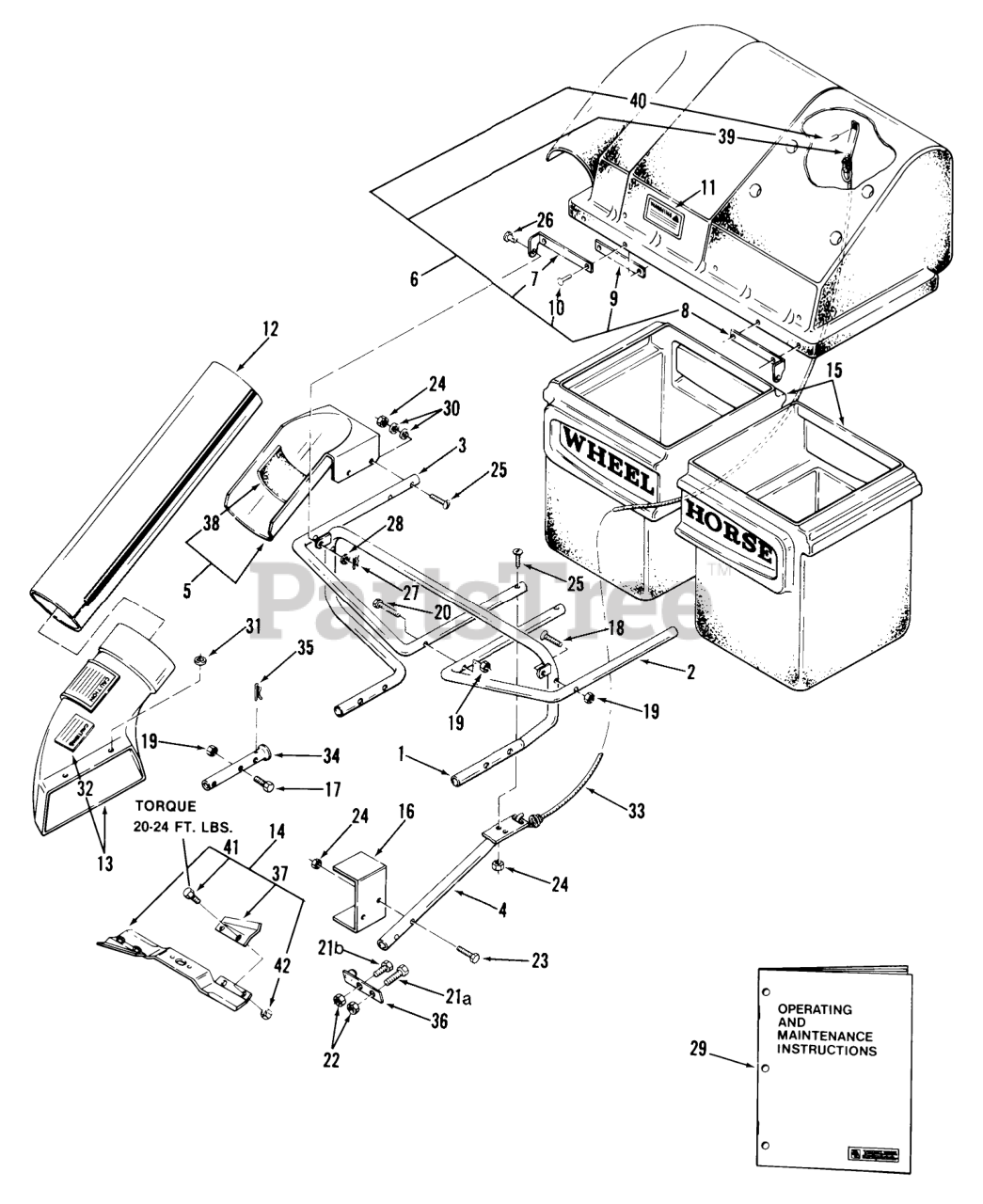

42" Lawn Vacuum Attachment

REAR GRASS BAGGER-5 BUSHEL (.2 CU. M) VEHICLE IDENTIFICATION NUMBER 07-06CL01 Parts Diagram

  • Title

1

Toro 108632

Main Frame

$

$

Not available

2

Toro 107565

SUPPORT-LEFT TUBE

$

$

Not available

3

Toro 107566

Support Tube R. H.

$

$

Not available

4

Toro 108592

ASSY-BRACE TUBE

$

$

Not available

5

Toro 108634

Collector Tube Suport
(Superseded to 107571)

$

$

Not available

6

Toro 108594

Collector Top Assy.

Note: Non-Serviced Parts of this Assembly are Secured with 923792 Poprivets (5/32 Dia. x 3/8 Long) and one 923793 Poprivet (5/32 Dia. x 1/2 Long); 920004 Backup Washers ( Num 8 SAE) are used on Rivets Securing Screen in Place.

$

$

Not available

7

Toro 107706

Hinge R.H.

$

$

Not available

8

Toro 107707

Hinge L.H.

$

$

Not available

9

Toro 107708

BACKING PLATE

$

$

Not available

10

Toro 923793

Poprivet 5/32 x 1/2 Long

$

$

Currently unavailable

11

Toro 108627

DECAL-WARNING

$

$

Not available

12

Toro 107582

Tube
(Superseded to 110150)

$

$

Not available

13

Toro 108305

ASSY-ELBOW

$311.99

$

Usually ships in 3-6 days

0

14

Toro 108684

High Lift Blade

$

$

Not available

15

Toro 107590

CAN-CLIPPINGS

$

$

Not available

16

Toro 107591

Muffler Shield (8 HP Engine Only)

Note: Indicates Part of Loose Parts Package 803316.

$

$

Not available

17

Toro 908022

HHCS
(Superseded to 322-9)

Note: Indicates Part of Loose Parts Package 803316.

$3.49

$

In Stock, Qty 20+

0

18

Toro 908843

Screw Flat Hd. Mach. 5/16 x 2 1/2

Note: Indicates Part of Loose Parts Package 803316.

$

$

Currently unavailable

19

Toro 915112

Nut
(Superseded to 3217-6)

Note: Indicates Part of Loose Parts Package 803316.

$1.49

$

In Stock, Qty 12

0

20

Toro 908025

HHCS
(Superseded to 322-12)

Note: Indicates Part of Loose Parts Package 803316.

$2.49

$

In Stock, Qty 10

0

21a

Toro 908032

Bolt
(Superseded to 323-4)

Note: Indicates Part of Loose Parts Package 803316.

$3.99

$

In Stock, Qty 20+

0

21b

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

22

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803316.

$0.99

$

In Stock, Qty 13

0

23

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

Note: Indicates Part of Loose Parts Package 803316.

$4.99

$

In Stock, only 2 left!

0

24

Toro 915111

Nut
(Superseded to 3217-5)

Note: Indicates Part of Loose Parts Package 803316.

$0.99

$

In Stock, Qty 8

0

25

Toro 908825

Srew Flat Hd. Mach. 1/4-20 x 1 1/4

Note: Indicates Part of Loose Parts Package 803316.

$

$

Not available

26

Toro 932960

PIN

Note: Indicates Part of Loose Parts Package 803316.

$

$

Not available

27

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 803316.

$1.99

$

In Stock, Qty 20+

0

28

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 803316.

$0.99

$

In Stock, Qty 20+

0

29

Toro 810199R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 803316.

$

$

Currently unavailable

30

Toro 920037

WASHER

Note: Indicates Part of Loose Parts Package 803316.

$

$

Not available

31

Toro 920038

Collar
(Superseded to 3-2563)

Note: Indicates Part of Loose Parts Package 803316.

$0.99

$

In Stock, Qty 20+

0

32

Toro 108304

DECAL-CAUTION

$

$

Not available

33

Toro 108574

Strap

Note: Indicates Part of Loose Parts Package 803316.

$

$

Not available

34

Toro 108639

Quick-Attach Tube

$

$

Not available

35

Toro 933507

Pin-Cotter
(Superseded to 9335074)

Note: Indicates Part of Loose Parts Package 803316.

$5.49

$

In Stock, Qty 5

0

36

Toro 108640

Pin Mounting

Note: Indicates Part of Loose Parts Package 803316.

$

$

Not available

37

Toro 108006

Lift Tab Kit

$

$

Not available

38

Toro 101444

Pad

$

$

Not available

39

Toro 108572

Bracket

$

$

Not available

40

Toro 923792

POPRIVET

$

$

Not available

41

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

42

Toro 108687

NUT-LOCK 5/16-18

$1.49

$

Usually ships in 3-6 days

0
