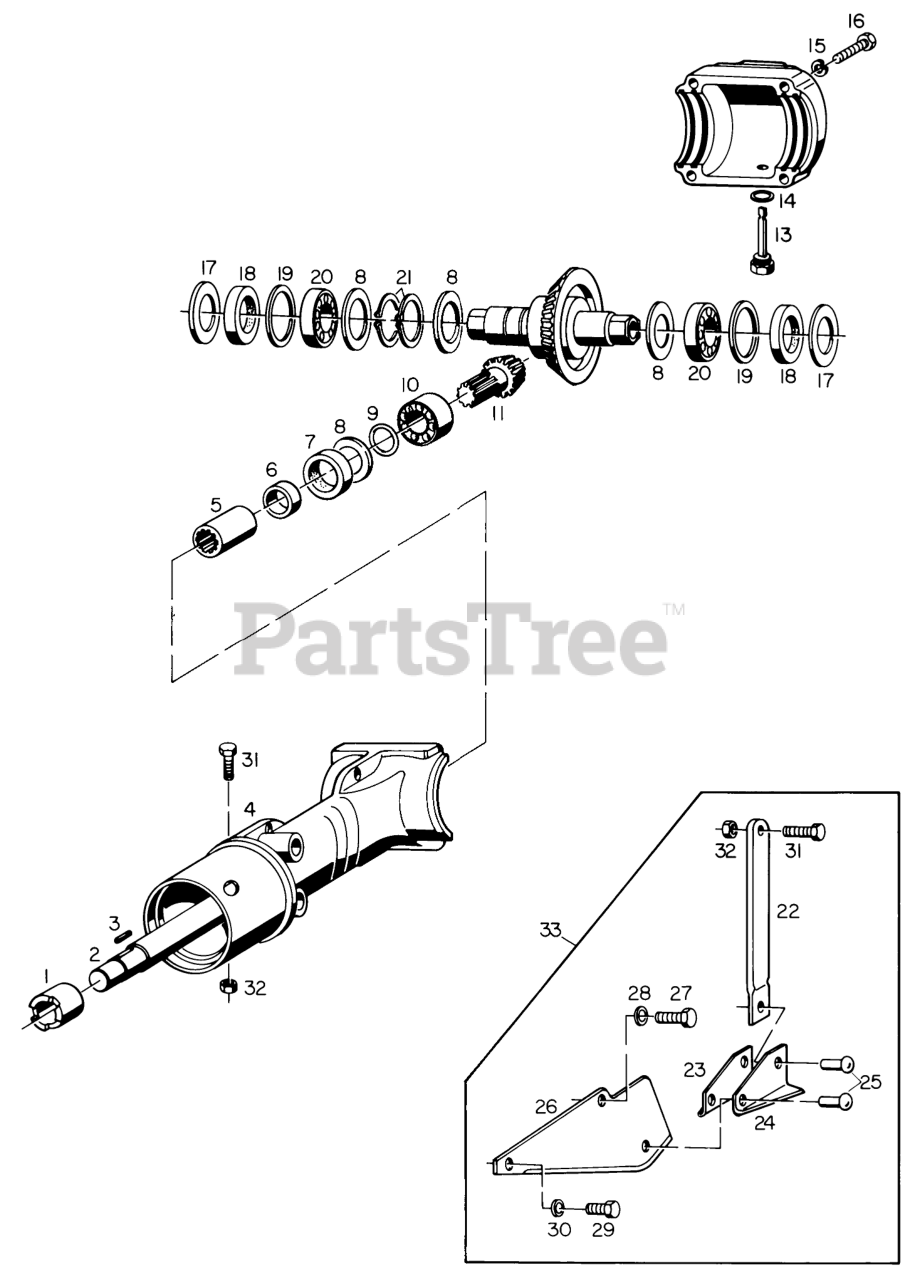

07-40TL01 - Toro 40" Tiller Attachment (1980) PARTS LIST FOR GEAR CASE ASSEMBLY (FIG.B) Parts Diagram

40" Tiller Attachment

PARTS LIST FOR GEAR CASE ASSEMBLY (FIG.B) Parts Diagram

  • Title

Toro 251193

Gear Case Assembly Complete

$

$

Not available

1

Toro 251259

Drive Ratchet

$

$

Not available

2

Toro 251263

Drive Shaft

$

$

Not available

3

Toro 251213

Key

$

$

Not available

4

Toro 251194

Housing Assy. (Includes 15 & 16)

$

$

Not available

5

Toro 251262

Sleeve

$

$

Not available

6

Toro 251260

Spacer

$

$

Not available

7

Toro 251225

Seal

$

$

Not available

8

Toro 251268

Shim

$

$

Not available

9

Toro 251079

Seal

$

$

Not available

10

Toro 251223

Bearing

$

$

Not available

11

Toro 251192

Matched Pinion & Ring Gear Assembly

$

$

Not available

13

Toro 251258

Oil Level Dipstick

$

$

Not available

14

Toro 251229

Gasket

$

$

Not available

15

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 251124

Bolt

$

$

Not available

17

Toro 251070

Washer

$

$

Not available

18

Toro 251226

Seal

$

$

Not available

19

Toro 251068

Washer

$

$

Not available

20

Toro 251221

Bearing

$

$

Not available

21

Toro 251227

Retaining Ring

$

$

Not available

22

Toro 251265

Mounting Arm

$

$

Not available

23

Toro 251234

Depth Control-Right

$

$

Not available

24

Toro 251233

Depth Control-Left

$

$

Not available

25

Toro 251211

Rivet

$

$

Not available

26

Toro 251264

Hoe Positioner

$

$

Not available

27

Toro 250164

Bolt

$

$

Not available

28

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

29

Toro 250157

Bolt

$

$

Not available

30

Toro 250457

Lockwasher

$

$

Not available

31

Toro 250168

Bolt

$

$

Not available

32

Toro 250374

Nut

$

$

Not available

33

Toro 251110

Hoe Positioning Assembly

$

$

Not available
