07-38SW01 - Toro 38" Sweeper Attachment (1981) LAWN VACUUMS VEHICLE IDENTIFICATION NUMBER 07-42VC01,07-42VX01 Parts Diagram

38" Sweeper Attachment

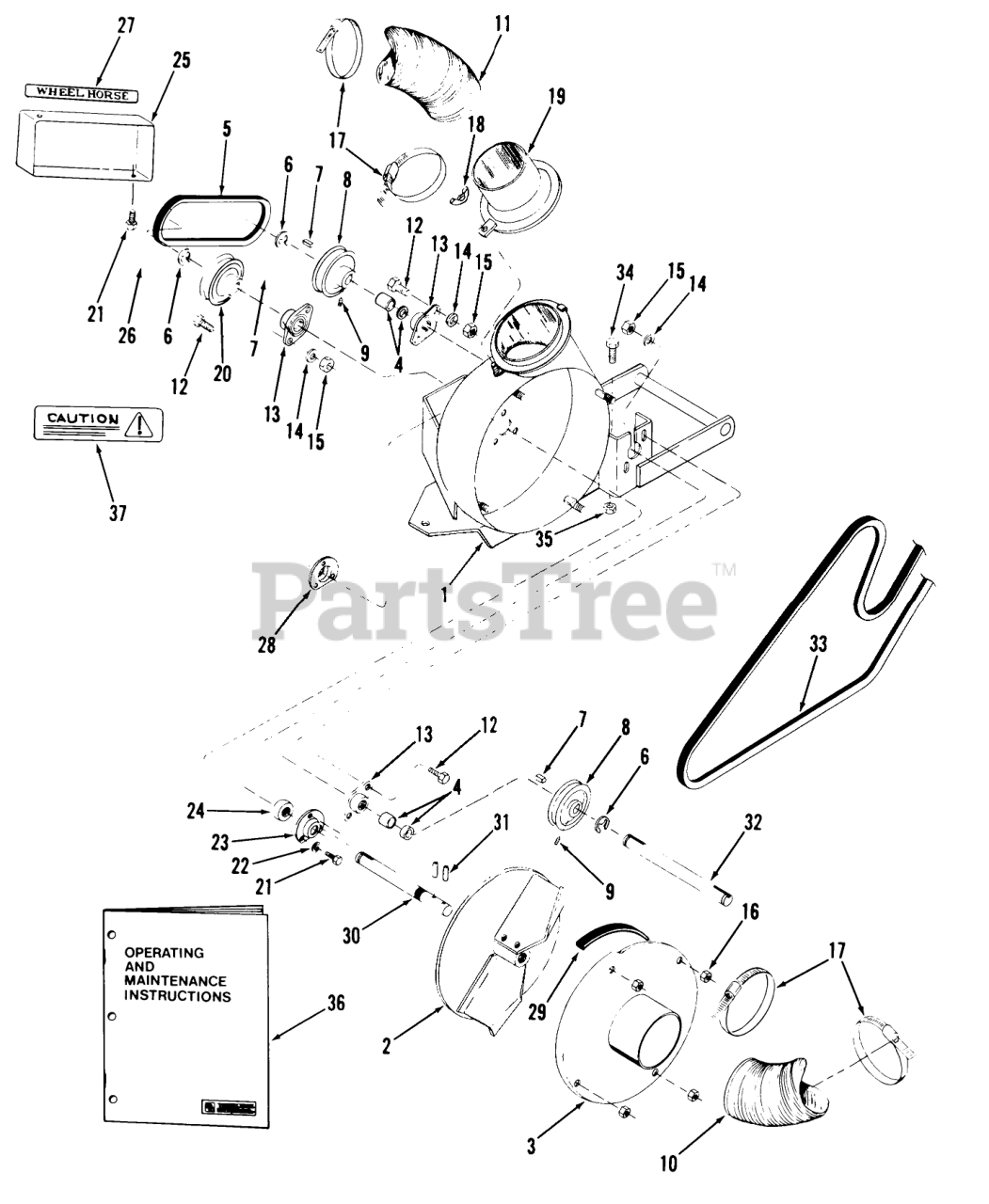

LAWN VACUUMS VEHICLE IDENTIFICATION NUMBER 07-42VC01,07-42VX01 Parts Diagram

  • Title

1

Toro 107953

Impeller Housing-97-42VC02 Only

$

$

Not available

2

Toro 102519

Impeller

$

$

Not available

3

Toro 102520

Front Plate

$

$

Not available

4

Toro 107954

Spacer-Jackshaft (Thick), Input Side-07-42VC01

$

$

Not available

4

Toro 107955

Spacer-Jackshaft (Thin), Impeller Side-07-42VC01

$

$

Not available

5

Toro 517439

V-BELT

$

$

Not available

6

Toro 102522

E-Ring 3/4

$

$

Not available

7

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

8

Toro 107792

JACKSHAFT PULLEY

$

$

Not available

9

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 102525

6" Dia. Hose x 51"

$

$

Not available

11

Toro 102527

Pin

$

$

Not available

12

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

13

Toro 107791

BEARING-JACKSHAFT

$

$

Not available

14

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

15

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

16

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

17

Toro 102528

CLAMP

$12.99

$

Usually ships in 3-6 days

0

18

Toro 915585

WING NUT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 102529

TRANSITION HOSE

$

$

Not available

20

Toro 102530

Impeller Pulley

$

$

Not available

21

Toro 910322

S.T. Screw #8-32 x 1/2

$

$

Not available

22

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

23

Toro 102533

BEARING-CUP

$38.99

$

Usually ships in 3-6 days

0

24

Toro 102534

BEARING-BALL

$

$

Not available

25

Toro 107956

Belt Cover-97-42VC02 Only

$

$

Currently unavailable

26

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

27

Toro 106601

Decal-Rear
(Superseded to 10-8580)

$

$

Not available

28

Toro 102536

BEARING-CUP W/NUTS

$

$

Not available

29

Toro 102537

Seal

$

$

Not available

30

Toro 102542

SHAFT

$

$

Not available

31

Toro 933215

ROLL PIN 1/4 X 1-1/4

$1.99

$

Usually ships in 3-6 days

0

32

Toro 107957

JACKSHAFT

$

$

Not available

33

Toro 107662

BELT-VEE

Note: Order Drive Belt 107813 (Part of S.A. 105168) for C-Series "Twin" Models.

$

$

Not available

34

Toro 908060

H H C S
(Superseded to 325-7)

$1.99

$

In Stock, Qty 5

0

35

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

36

Toro 810182R1

Operating and Maintenance Instructions

$

$

Currently unavailable

37

Toro 108304

DECAL-CAUTION

$

$

Not available
