07-38BS01 - Toro 38" Easy Twin Rear Bagger (SN: 020000001 - 029999999) (1992) BAG & FRAME ASSEMBLY Parts Diagram

38" Easy Twin Rear Bagger

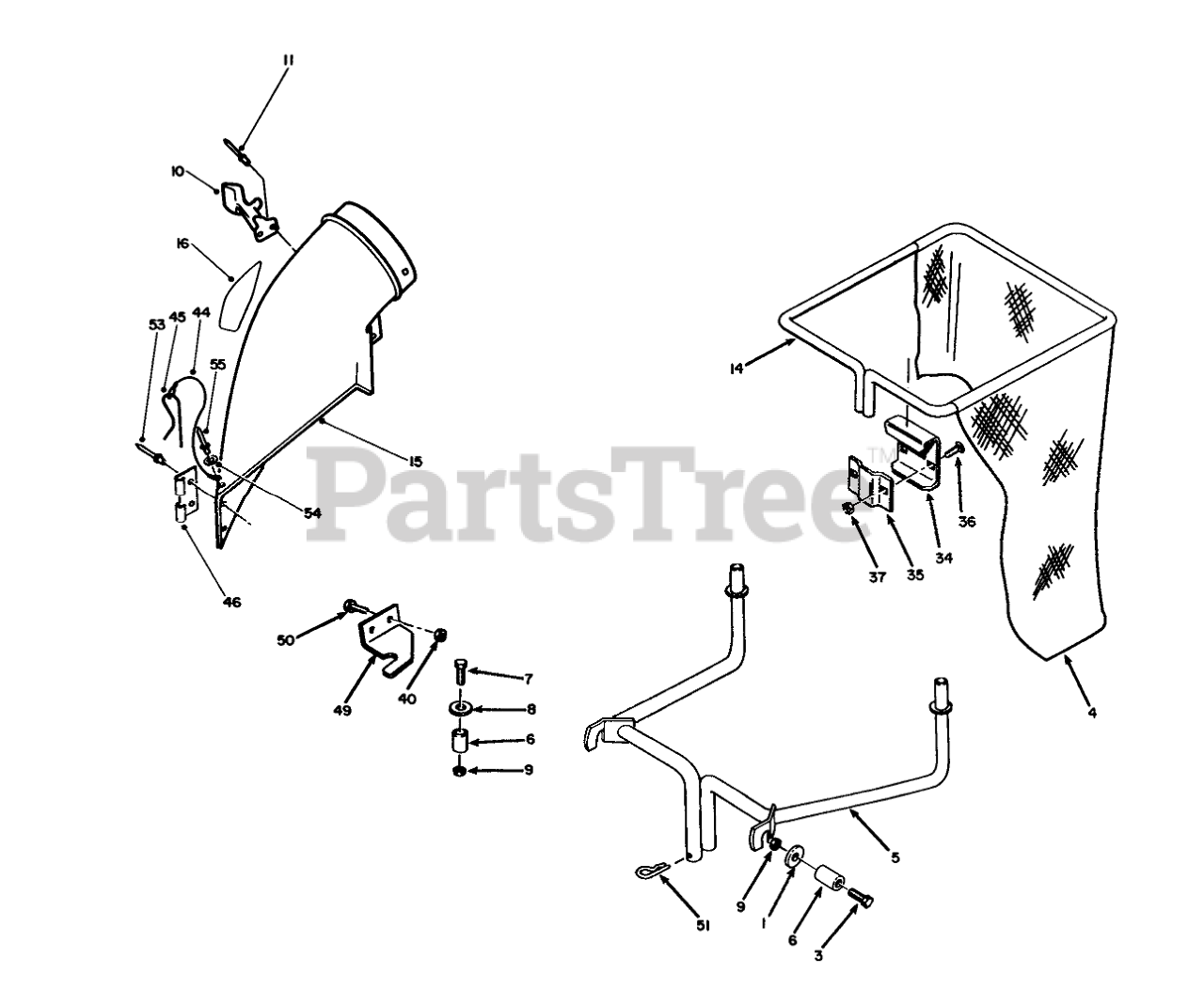

BAG & FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 920220

WASHER

$3.99

$

Usually ships in 3-6 days

0

2

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

3

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

4

Toro 114971

Bag
(Superseded to 93-1623)

$93.99

$

Usually ships in 3-6 days

0

5

Toro 78-8600

Bracket-Quick Attach
(Superseded to 78-8600-03)

$443.99

$

Usually ships in 3-6 days

0

6

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

7

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

8

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

9

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10

Toro 57-4670

Latch-38"
(Superseded to 117344)

$36.99

$

Usually ships in 3-6 days

0

11

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

14

Toro 114972

Bag Frame
(Superseded to 114972-03)

$113.99

$

Usually ships in 3-6 days

0

15

Toro 120210

Chute Assembly (Incl. Ref. #10-11, 16, 44-46 & 53-55)

$287.99

$

Usually ships in 3-6 days

0

16

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

21

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

34

Toro 114973

Bag Hanger
(Superseded to 114973-03)

$26.99

$

Usually ships in 3-6 days

0

35

Toro 114974

Clamp
(Superseded to 114974-03)

$14.99

$

Usually ships in 3-6 days

0

36

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

37

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

40

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

44

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

45

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

46

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$25.99

$

Usually ships in 3-6 days

0

49

Toro 120312

LATCH-BAGGER ELBOW

$

$

Not available

50

Toro 911460

Bolt
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

51

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

53

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

54

Toro 3296-49

NUT-LOCK, NI

$14.99

$

In Stock, only 2 left!

0

55

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

Toro 807325

Loose Parts Assembly (Incl. Ref. #7-9, 40, & 45)

$

$

Not available
