07-38BS01 - Toro 38" Easy Twin Rear Bagger (SN: 010000001 - 019999999) (1991) COVER & CHUTE ASSEMBLY Parts Diagram

38" Easy Twin Rear Bagger

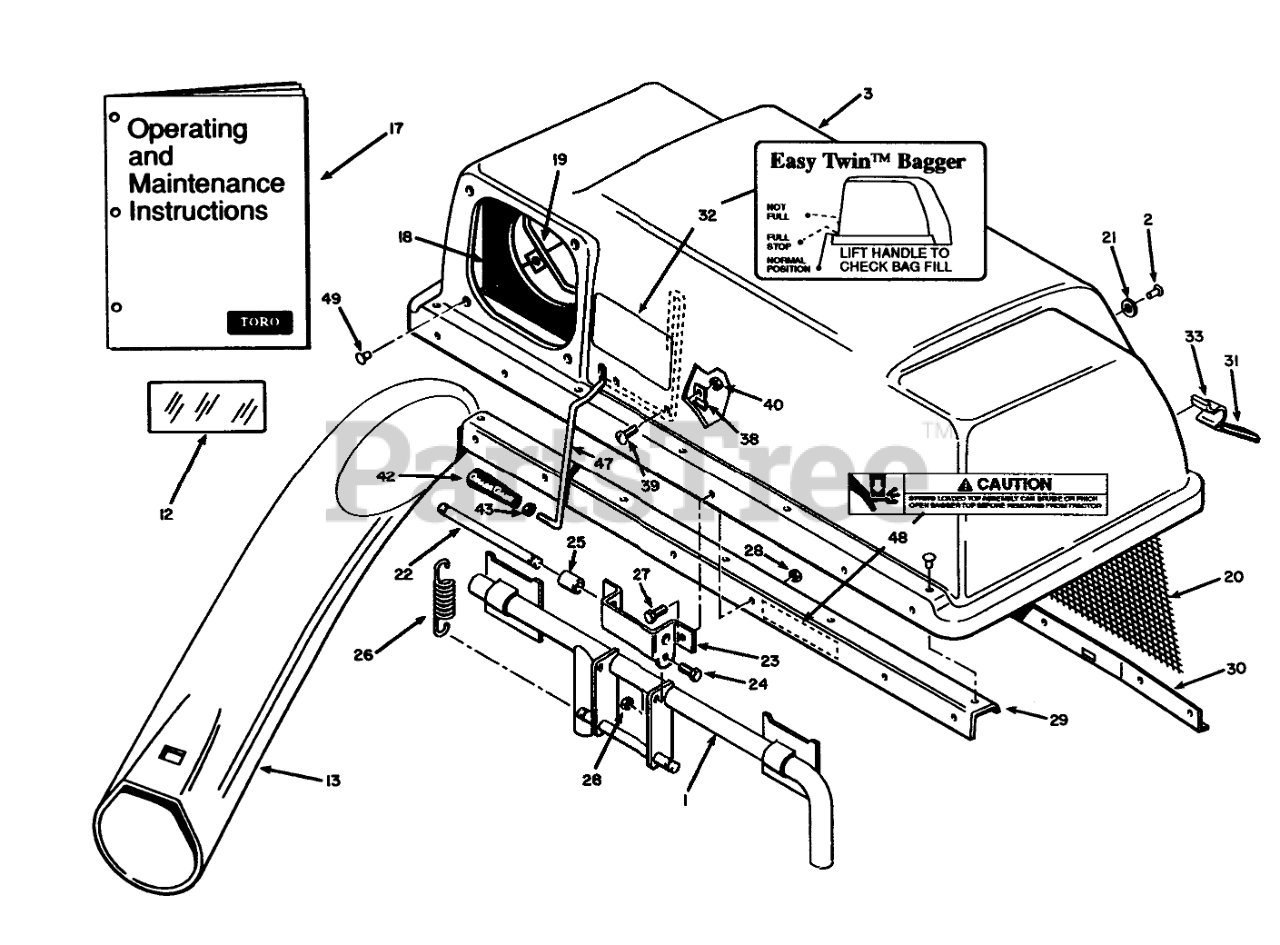

COVER & CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 114955

FRAME ASM
(Superseded to 114955-03)

$754.99

$

Usually ships in 3-6 days

0

2

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

3

Toro 114963

TOP-BAGGER

$

$

Not available

12

Toro 860000

Decal-Vin Overlay

$

$

Currently unavailable

13

Toro 78-8770

CHUTE-BAGGER

$

$

Not available

17

Toro 810782R1

Operating & Maintenance Instructions

$

$

Currently unavailable

18

Toro 117239

SEAL-CHUTE

$84.99

$

Usually ships in 3-6 days

0

19

Toro 114966

CLAMP-SEAL

$71.99

$

Usually ships in 3-6 days

0

20

Toro 114967

SCREEN-BAGGER

$38.99

$

In Stock, only 3 left!

0

21

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

22

Toro 114960

PIN-SPRING

$27.99

$

In Stock, only 1 left!

0

23

Toro 114961

HINGE-BAG TOPB
(Superseded to 114961-03)

$17.99

$

Usually ships in 3-6 days

0

24

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

25

Toro 979094

SPACER
(Superseded to 9790944)

$2.99

$

In Stock, only 2 left!

0

26

Toro 114962

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

27

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

29

Toro 114964

Bagger-Stiffener
(Superseded to 88-9570)

$99.99

$

Usually ships in 3-6 days

0

30

Toro 115879

SUPPORT-SCREEN B
(Superseded to 92-1736-03)

$52.99

$

Usually ships in 3-6 days

0

31

$5.49

$

In Stock, Qty 6

0

32

Toro 116347

DECAL

$

$

Not available

33

Toro 115481

Latch-Bag
(Superseded to 115481-03)

$22.99

$

In Stock, only 4 left!

0

38

Toro 116130

Clip
(Superseded to 2412-91)

$3.99

$

In Stock, only 2 left!

0

39

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

40

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

42

Toro 118320

HANDLE-TAPERED

$

$

Not available

43

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

47

Toro 114969

FEELER-FILL, BAG

$

$

Not available

48

Toro 116004

DECAL-CAUTION

$

$

Not available

49

Toro 116355

Pop Rivet

$

$

Not available

Toro 706360

Loose Parts Assembly (Incl. Ref. #17, & 38-47)

$

$

Not available
