07-30TL02 - Toro 30" Tiller Attachment (1982) TILLER-30 IN. (76 CM) VEHICLE IDENTIFICATION NUMBER 07-30TL01 & 07-30TL02 Parts Diagram

30" Tiller Attachment

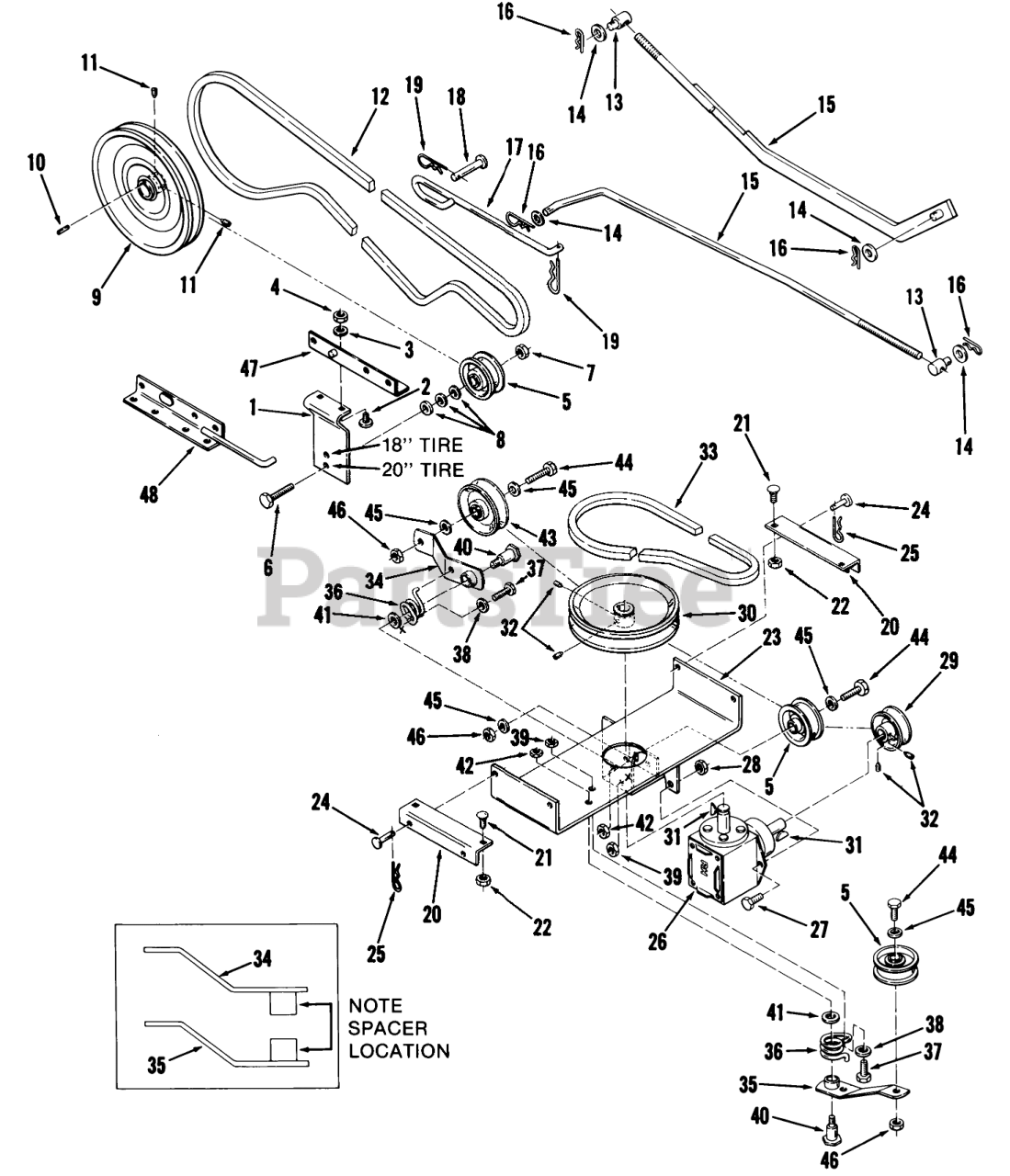

TILLER-30 IN. (76 CM) VEHICLE IDENTIFICATION NUMBER 07-30TL01 & 07-30TL02 Parts Diagram

  • Title

1

Toro 108938

Idler Bracket

$

$

Not available

2

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

3

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

6

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

8

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$0.99

$

In Stock, Qty 16

0

9

Toro 6844

Pulley
(Superseded to 93-0345)

$186.99

$

Usually ships in 3-6 days

0

10

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$6.99

$

In Stock, only 3 left!

0

11

Toro 909863

Set Screw 5/16-18 x 3/8
(Superseded to 3246-3)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$13.99

$

Usually ships in 3-6 days

0

12

Toro 108960

V-BELT

$69.99

$

Usually ships in 3-6 days

0

13

Toro 8870

ROD-TRUNNION LIFT

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$

$

Not available

14

Toro 920011

Washer
(Superseded to 3256-26)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$0.99

$

In Stock, Qty 20+

0

15

Toro 108961

Primary Lift Rod (5-SpeedTrans.) 07-30TL01 & 02

$

$

Not available

15

Toro 109630

ASSY BAR LIFT R

$

$

Not available

16

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$1.99

$

In Stock, Qty 20+

0

17

Toro 108962

Secondary Lift Rod

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$

$

Not available

18

Toro 932122

CLEVIS PIN

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$

$

Not available

19

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$1.99

$

In Stock, Qty 20+

0

20

Toro 108963

Quick Attach Plate

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$

$

Not available

21

Toro 900036

CARRIAGE BOLT -4

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$2.49

$

Usually ships in 3-6 days

0

22

Toro 915112

Nut
(Superseded to 3217-6)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$1.49

$

In Stock, Qty 12

0

23

Toro 108966

Support

$

$

Not available

24

Toro 932121

PIN

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$

$

Not available

25

Toro 933504

Hairpin
(Superseded to 9335044)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$1.49

$

In Stock, Qty 13

0

26

Toro 107538

Gearbox-RH (Peerless #1784-91)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

27

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

28

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

29

Toro 108969

Pulley-Transmission Output 2.75 in. O.D.

$

$

Not available

30

Toro 108970

Pulley-Transmission Input 8 in. O.D.

$

$

Not available

31

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

32

Toro 909863

Set Screw 5/16-18 x 3/8
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

33

Toro 108971

V-BELT

$

$

Not available

34

Toro 108173

Idler Arm-Output
(Superseded to 108782)

$

$

Not available

35

Toro 108972

ASSY-IDLER ARM R

$86.99

$

Usually ships in 3-6 days

0

36

Toro 108177

SPRING-TORSION

$19.99

$

Usually ships in 3-6 days

0

37

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

38

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

39

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

40

Toro 108176

BOLT-SHOULDER

$

$

Not available

41

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

42

Toro 915237

Hex Nut 7/16-14
(Superseded to 3218-4)

$0.99

$

Usually ships in 3-6 days

0

43

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$25.99

$

Usually ships in 3-6 days

0

44

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

45

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

46

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

47

Toro 108980

Hitch Support LH (5-Speed Trans.) 07-30TL01 Only
(Superseded to 109592)

$

$

Not available

47

Toro 109592

SUPPORT-HITCH ASSY LH R

$

$

Not available

48

Toro 108983

Hitch Support RH (5-SpeedTrans.) 07-30TL01 Only
(Superseded to 109590)

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$

$

Not available

48

Toro 109590

HITCH SUPPORT ASSY (RH)R

Note: Indicates Part of Loose Parts Package 803341 (07-30TL01) or 803383 (07-30TL02).

$

$

Not available
