07-30GN01 - Toro 3kW Generator (1981) PORTABLE GENERATORS 3000/5000 WATT VEHICLE IDENTIFICATION NUMBERS 07-30GN01,07-50GN01 Parts Diagram

3kW Generator

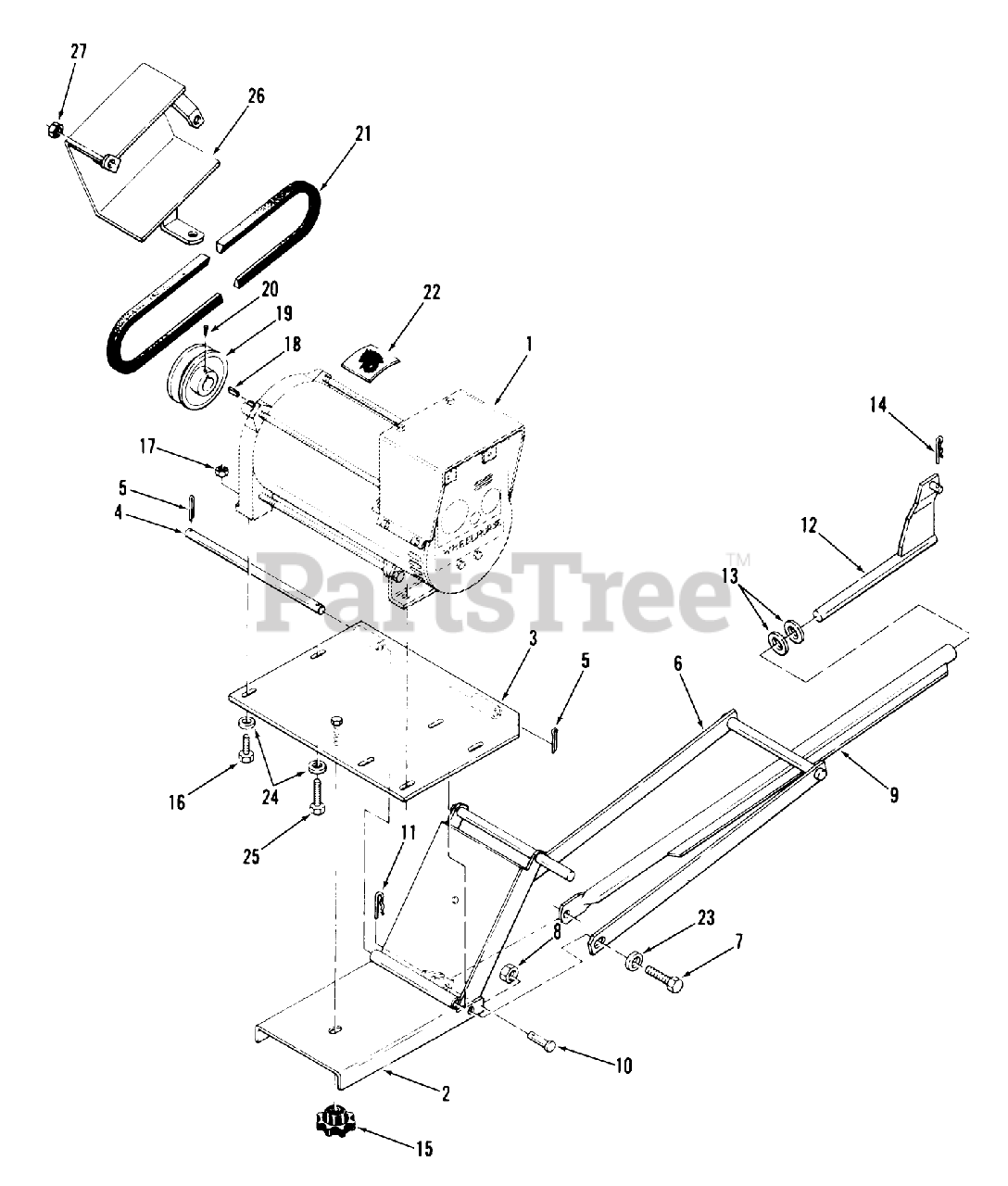

PORTABLE GENERATORS 3000/5000 WATT VEHICLE IDENTIFICATION NUMBERS 07-30GN01,07-50GN01 Parts Diagram

  • Title
1

Toro 107713

Alternator 3000 Watt (Generac No. 6509-0)

Note: Replacement Alternators or Alternator Parts are available through the Generac Corporation-s distribution system, using the Model Numbers shown above. WHEELHORSE Part Numbers are listed for cross-reference purposes only; Generac Alternator Parts are not

$

$

Not available

1

Toro 107714

Alternator 5000 Watt (Generac No. 6511-1)

Note: Replacement Alternators or Alternator Parts are available through the Generac Corporation-s distribution system, using the Model Numbers shown above. WHEELHORSE Part Numbers are listed for cross-reference purposes only; Generac Alternator Parts are not

$

$

Not available

2

Toro 107946

Front Hitch

$

$

Not available

3

Toro 108376

Mounting Plate

$

$

Not available

4

Toro 107733

Pivot Rod

$

$

Not available

5

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

6

Toro 107734

Mid Hitch

$

$

Not available

7

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

8

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

9

Toro 107737

Lift Tube

$

$

Not available

10

Toro 932958

Clevis Pin 5/16 x 1 1/4
(Superseded to 9329584)

$

$

Not available

11

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

12

Toro 107738

Lift Rod

$

$

Not available

13

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

14

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

15

Toro 2196

Knob
(Superseded to 5280)

$31.99

$

Usually ships in 3-6 days

0

16

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

18

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

19

Toro 107739

Pulley

$

$

Not available

20

Toro 909849

USE 909849P SCREW

$

$

Not available

21

Toro 107740

Drive Belt

$

$

Not available

22

Toro 251053

DECAL-LOGO

$27.99

$

Usually ships in 3-6 days

0

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

26

Toro 108539

Belt Guard

$

$

Not available

27

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0
