07-18DC02 - Toro 18 Cubic Foot Cart (1981) DUMP CART-10 CU. FT. (.28 CU. M) VEHICLE IDENTIFICATION NUMBER 07-10DC02 Parts Diagram

18 Cubic Foot Cart

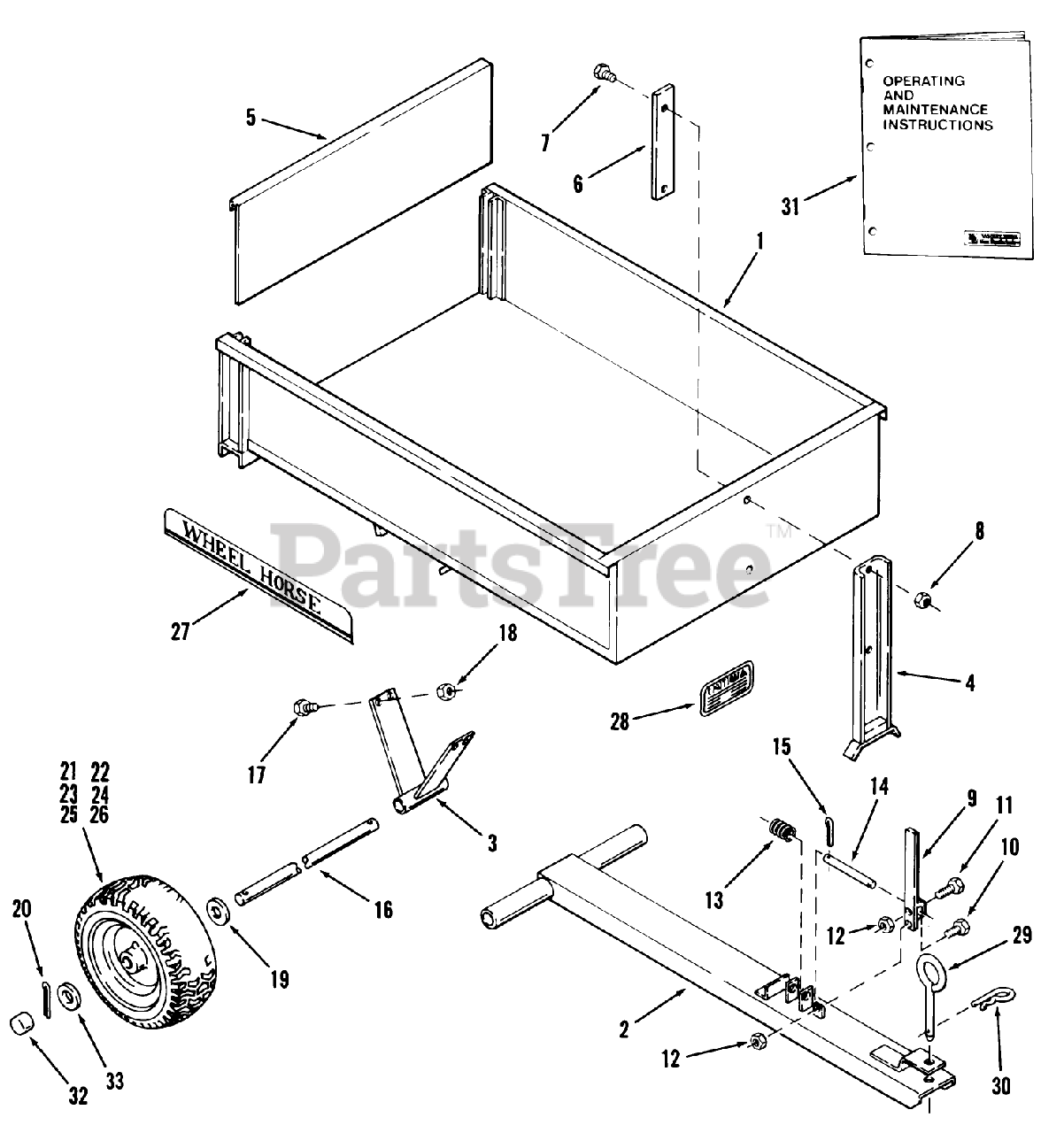

DUMP CART-10 CU. FT. (.28 CU. M) VEHICLE IDENTIFICATION NUMBER 07-10DC02 Parts Diagram

  • Title

1

Toro 109046

Bed

$

$

Currently unavailable

2

Toro 109047

Drawbar

$

$

Not available

3

Toro 109048

Wheel Support

$

$

Not available

4

Toro 109049

Latch Bracket

$

$

Not available

5

Toro 109063

Rear Gate

$

$

Not available

6

Toro 109064

Reinforcing Plate

Note: Indicates Part of Loose Parts Package 803344.

$

$

Not available

7

Toro 908033

Bolt
(Superseded to 110242)

Note: Indicates Part of Loose Parts Package 803344.

$2.49

$

In Stock, Qty 5

0

8

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803344.

$0.99

$

In Stock, Qty 14

0

9

Toro 109109

Latch Handle

Note: Indicates Part of Loose Parts Package 803344.

$

$

Not available

10

Toro 908005

Bolt
(Superseded to 321-6)

Note: Indicates Part of Loose Parts Package 803344.

$0.99

$

In Stock, Qty 20+

0

11

Toro 908006

Bolt
(Superseded to 321-8)

Note: Indicates Part of Loose Parts Package 803344.

$3.99

$

In Stock, Qty 10

0

12

Toro 915111

Nut
(Superseded to 3217-5)

Note: Indicates Part of Loose Parts Package 803344.

$0.99

$

In Stock, Qty 8

0

13

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

14

Toro 103498

Index Pin

$

$

Not available

15

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 109065

Axle

$

$

Not available

17

Toro 908031

Bolt
(Superseded to 323-34)

Note: Indicates Part of Loose Parts Package 803344.

$6.49

$

In Stock, only 2 left!

0

18

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803344.

$0.99

$

In Stock, Qty 14

0

19

Toro 920015

Washer
(Superseded to 3256-28)

Note: Indicates Part of Loose Parts Package 803344.

$3.49

$

In Stock, Qty 20+

0

20

Toro 932035

PIN-4

Note: Indicates Part of Loose Parts Package 803344.

$

$

Not available

21

Toro 108557

Wheel & Tire Assembly

$

$

Not available

22

Toro 108556

ASSY-RIM

$

$

Not available

23

Toro 104307

TIRE

$

$

Not available

24

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

25

Toro 100166

FLANGE BEARING

$30.99

$

Usually ships in 3-6 days

0

26

Toro 101779

Tube (Service Only)
(Superseded to 5712)

$

$

Not available

27

Toro 108851

DECAL

$33.99

$

Usually ships in 3-6 days

0

28

Toro 106703

Decal-Weight Limit

$

$

Not available

29

Toro 106634

PIN-TOOL

Note: Indicates Part of Loose Parts Package 803344.

$

$

Not available

30

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 803344.

$1.99

$

In Stock, Qty 20+

0

31

Toro 810238R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 803344.

$

$

Currently unavailable

32

Toro 103565

HUB CAP

Note: Indicates Part of Loose Parts Package 803344.

$

$

Not available

33

Toro 109114

WASHER-WHEEL

Note: Indicates Part of Loose Parts Package 803344.

$3.49

$

In Stock, only 2 left!

0
