07-11BY01 - Toro 38" Easy Twin Rear Bagger (SN: 010000001 - 019999999) (1991) BAG & FRAME ASSEMBLY Parts Diagram

38" Easy Twin Rear Bagger

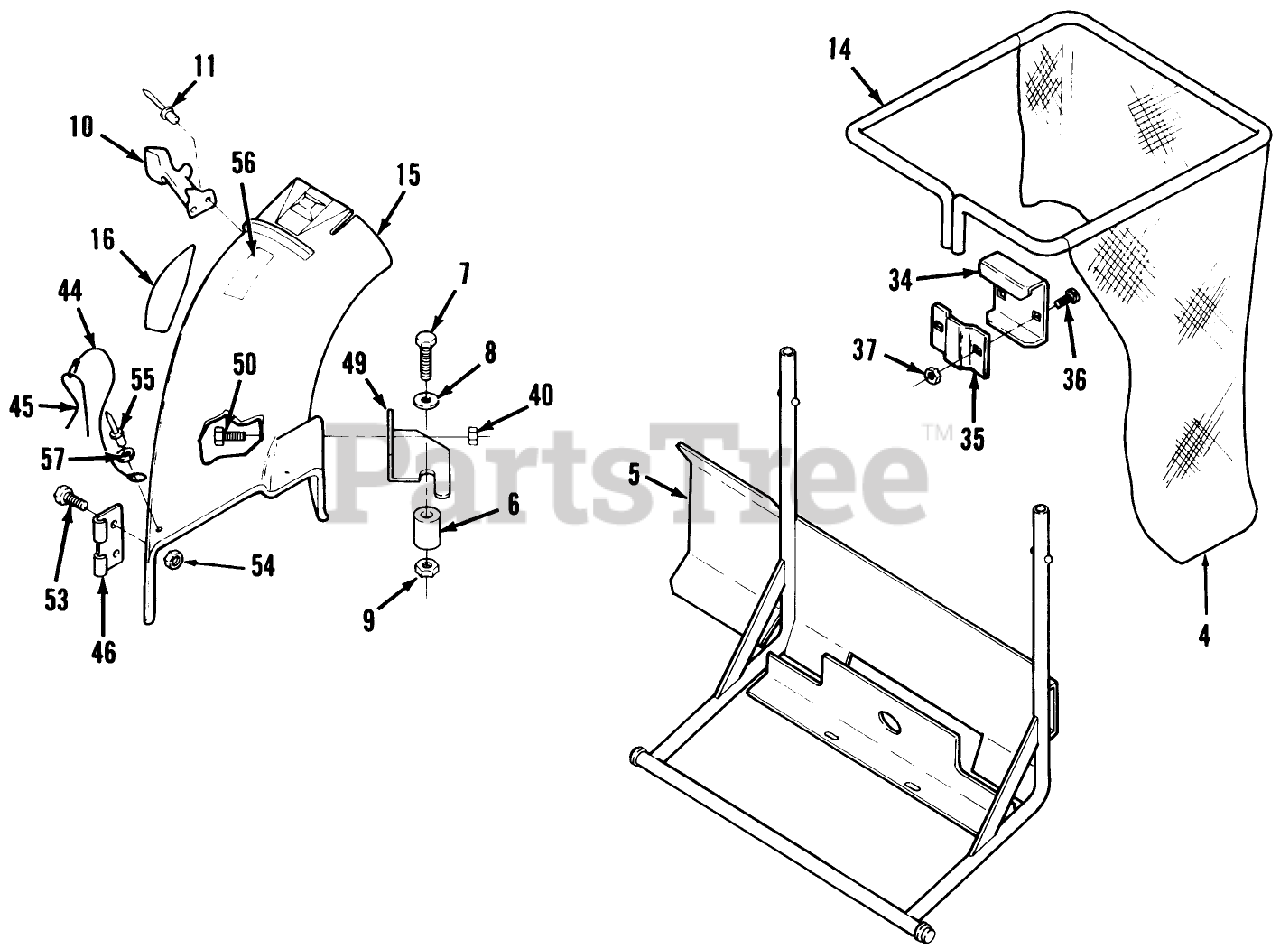

BAG & FRAME ASSEMBLY Parts Diagram

  • Title

4

Toro 114971

Bag
(Superseded to 93-1623)

$79.99

$

In Stock, only 1 left!

0

5

Toro 79-1860

WLDMT-BAGGER RODS B

$

$

Not available

6

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 32564

Washer

$

$

Currently unavailable

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 57-4670

Latch-38"
(Superseded to 117344)

$35.99

$

In Stock, only 1 left!

0

11

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

14

Toro 114972

Bag Frame
(Superseded to 114972-03)

$111.99

$

Usually ships in 3-6 days

0

15

Toro 120200

Chute Assembly (Incl. Ref. #10-11, 16, 44-46 & 53-57)

$297.99

$

Usually ships in 3-6 days

0

16

Toro 549220

Decal-Danger

$

$

Currently unavailable

34

Toro 114973

Bag Hanger
(Superseded to 114973-03)

$25.99

$

In Stock, only 2 left!

0

35

Toro 114974

Clamp
(Superseded to 114974-03)

$14.99

$

Usually ships in 3-6 days

0

36

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

44

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

45

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

46

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$24.99

$

Usually ships in 3-6 days

0

49

Toro 120312

LATCH-BAGGER ELBOW

$11.99

$

Usually ships in 3-6 days

0

50

Toro 911460

Bolt
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

53

Toro 911460

Bolt
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

54

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

55

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

56

Toro 113914

DECAL-DANGER

$

$

Not available

57

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

Toro 807287

Loose Parts Assembly (Incl. Ref. #6-9, 40 & 45)

$

$

Not available
