07-11BC02 - Toro 37" Easy Twin Rear Bagger (SN: 010000001 - 019999999) (1991) 200-SERIES EASY TWIN REAR GRASS BAGGER-37 IN. (94 CM) MOWER VEHICLE IDENTIFICATION NUMBER 37-08BL01 Parts Diagram

37" Easy Twin Rear Bagger

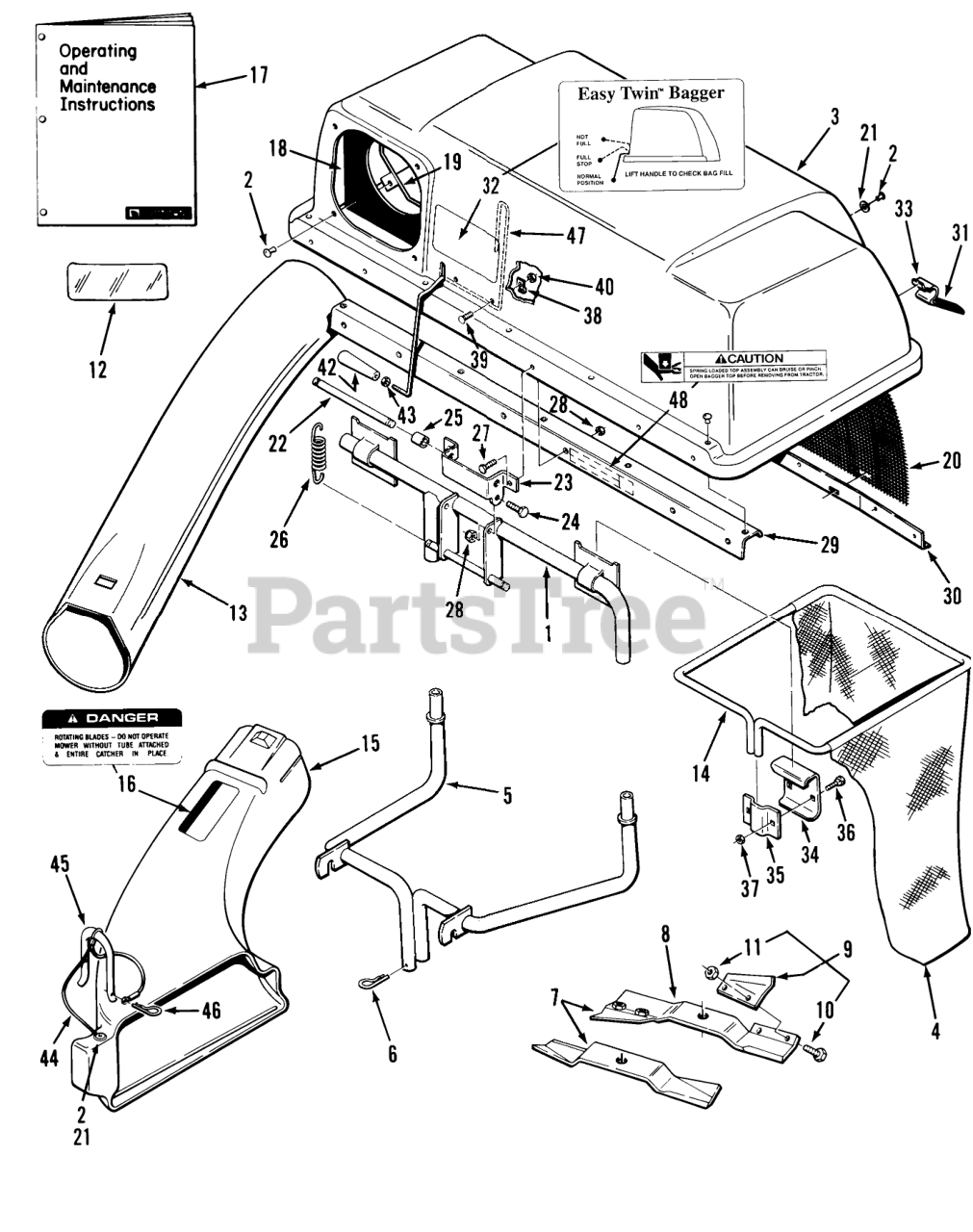

200-SERIES EASY TWIN REAR GRASS BAGGER-37 IN. (94 CM) MOWER VEHICLE IDENTIFICATION NUMBER 37-08BL01 Parts Diagram

  • Title

1

Toro 114955

FRAME ASM
(Superseded to 114955-03)

$754.99

$

Usually ships in 3-6 days

0

2

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

3

Toro 114963

TOP-BAGGER

$

$

Not available

4

Toro 114970

BAG-18" DEPTH

$

$

Not available

5

Toro 114952

ASM-QUICK ATTACH B

$

$

Not available

6

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

7

Toro 115084

Blade Kit (includes LH blade, RH blade with tabs)

$

$

Not available

8

Toro 115083

High Lift Blade (includes item 9) RH side

$171.99

$

Usually ships in 3-6 days

0

9

Toro 105194

Lift Tab Kit (includes items 10 & 11)

$

$

Not available

10

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

11

Toro 108687

NUT-LOCK 5/16-18

$1.49

$

Usually ships in 3-6 days

0

12

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

13

Toro 114981

CHUTE-BAGGER (L)

$215.99

$

Usually ships in 3-6 days

0

14

Toro 114972

Bag Frame
(Superseded to 114972-03)

$113.99

$

Usually ships in 3-6 days

0

15

Toro 114983

Discharge Elbow (includes items 16 & 44 installed)
(Superseded to 78-3400)

$

$

Not available

16

Toro 113914

DECAL-DANGER

$

$

Not available

17

Toro 810579R1

Operating and Maintenance Instructions

$

$

Currently unavailable

18

Toro 114965

Chute Seal
(Superseded to 11-7239)

$

$

Not available

19

Toro 114966

CLAMP-SEAL

$71.99

$

Usually ships in 3-6 days

0

20

Toro 114967

SCREEN-BAGGER

$38.99

$

In Stock, only 3 left!

0

21

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

22

Toro 114960

PIN-SPRING

$27.99

$

In Stock, only 1 left!

0

23

Toro 114961

HINGE-BAG TOPB
(Superseded to 114961-03)

$17.99

$

Usually ships in 3-6 days

0

24

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

25

Toro 979094

SPACER
(Superseded to 9790944)

$2.99

$

In Stock, only 2 left!

0

26

Toro 114962

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

27

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

29

Toro 114964

Bagger-Stiffener
(Superseded to 88-9570)

$99.99

$

Usually ships in 3-6 days

0

30

Toro 115879

SUPPORT-SCREEN B
(Superseded to 92-1736-03)

$52.99

$

Usually ships in 3-6 days

0

31

Toro 115880

GRIP

$5.49

$

In Stock, Qty 6

0

32

Toro 115194

Decal-Full Bag Test
(Superseded to 116347)

$

$

Not available

33

Toro 115481

Latch-Bag
(Superseded to 115481-03)

$22.99

$

In Stock, only 4 left!

0

34

Toro 114973

Bag Hanger
(Superseded to 114973-03)

$26.99

$

In Stock, only 2 left!

0

35

Toro 114974

Clamp
(Superseded to 114974-03)

$14.99

$

Usually ships in 3-6 days

0

36

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

37

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

38

Toro 106913

CLIP

$

$

Not available

39

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

40

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

42

Toro 115199

HANDLE-TAPERED

$

$

Not available

43

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

44

Toro 114986

LANYARD-ELBOW LATCH

$

$

Not available

45

Toro 114985

LATCH-ELBOW

$

$

Not available

46

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

47

Toro 114969

FEELER-FILL, BAG

$

$

Not available

48

Toro 116004

DECAL-CAUTION

$

$

Not available
