07-10DC02 - Toro 10 Cubic Foot Cart (1982) DUMP CART-18 CU. FT. (.5 CU. M) VEHICLE IDENTIFICATION NUMBER 07-18DC02 Parts Diagram

10 Cubic Foot Cart

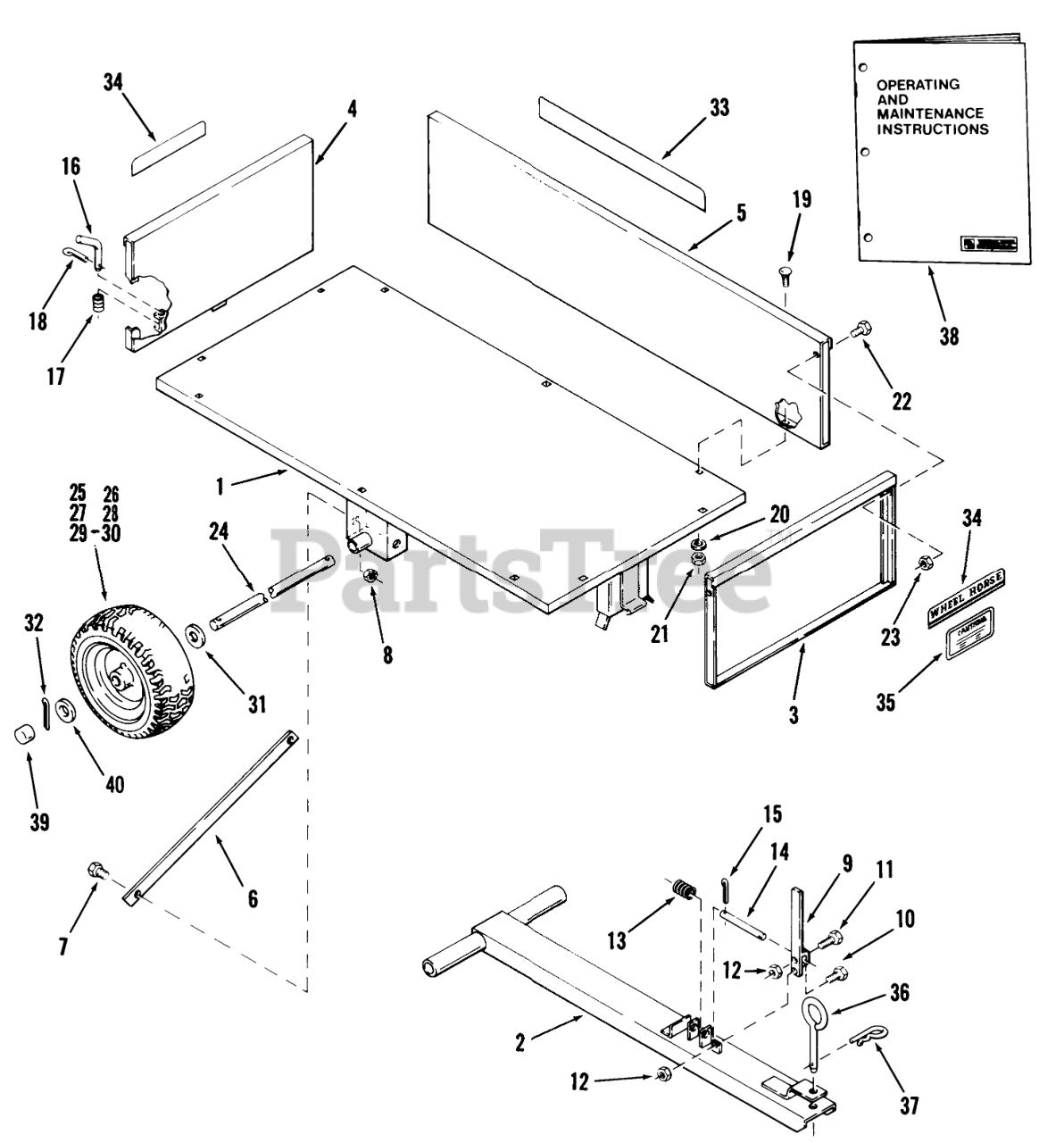

DUMP CART-18 CU. FT. (.5 CU. M) VEHICLE IDENTIFICATION NUMBER 07-18DC02 Parts Diagram

  • Title

1

Toro 109003

Bed

$

$

Currently unavailable

2

Toro 109004

Drawbar

$

$

Not available

3

Toro 109005

Front Panel

$

$

Currently unavailable

4

Toro 109006

Rear Gate

$

$

Not available

5

Toro 109007

Side Panel

$

$

Not available

6

Toro 109030

Cross Brace

$

$

Not available

7

Toro 908031

Bolt
(Superseded to 323-34)

Note: Indicates Part of Loose Parts Package 803343.

$6.49

$

In Stock, only 2 left!

0

8

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803343.

$0.99

$

In Stock, Qty 13

0

9

Toro 109109

Latch Handle

Note: Indicates Part of Loose Parts Package 803343.

$

$

Not available

10

Toro 908005

Bolt
(Superseded to 321-6)

Note: Indicates Part of Loose Parts Package 803343.

$0.99

$

In Stock, Qty 20+

0

11

Toro 908006

Bolt
(Superseded to 321-8)

Note: Indicates Part of Loose Parts Package 803343.

$3.99

$

In Stock, Qty 9

0

12

Toro 915111

Nut
(Superseded to 3217-5)

Note: Indicates Part of Loose Parts Package 803343.

$0.99

$

In Stock, Qty 8

0

13

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

14

Toro 103498

Index Pin

$

$

Not available

15

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 109032

Latch Handle, Gate

$

$

Not available

17

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

18

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

19

Toro 900066

Carriage Bolt
(Superseded to 323-15)

Note: Indicates Part of Loose Parts Package 803343.

$1.99

$

In Stock, only 4 left!

0

20

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of Loose Parts Package 803343.

$0.99

$

In Stock, Qty 10

0

21

Toro 915113

Nut
(Superseded to 32153-2)

Note: Indicates Part of Loose Parts Package 803343.

$0.99

$

In Stock, Qty 13

0

22

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

23

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

24

Toro 109033

Axle

$

$

Not available

25

Toro 109034

ASSY-WHEEL&TIRE

$

$

Not available

26

Toro 109035

Wheel

$

$

Currently unavailable

27

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

28

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

29

Toro 109036

Wheel Bearing

$

$

Not available

30

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

31

Toro 920017

WASHER
(Superseded to 3256-62)

Note: Indicates Part of Loose Parts Package 803343.

$1.49

$

Usually ships in 3-6 days

0

32

Toro 932036

Cotter Pin 3/16 X 1 1/2
(Superseded to 3272-23)

Note: Indicates Part of Loose Parts Package 803343.

$0.99

$

Usually ships in 3-6 days

0

33

Toro 108851

DECAL

$41.99

$

Usually ships in 3-6 days

0

34

Toro 108580

DECAL-REAR

$

$

Not available

35

Toro 106702

Weight Limit Decal

$

$

Currently unavailable

36

Toro 106634

PIN-TOOL

Note: Indicates Part of Loose Parts Package 803343.

$

$

Not available

37

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of Loose Parts Package 803343.

$1.99

$

In Stock, Qty 20+

0

38

Toro 810238R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 803343.

$

$

Currently unavailable

39

Toro 103565

HUB CAP

Note: Indicates Part of Loose Parts Package 803343.

$

$

Not available
