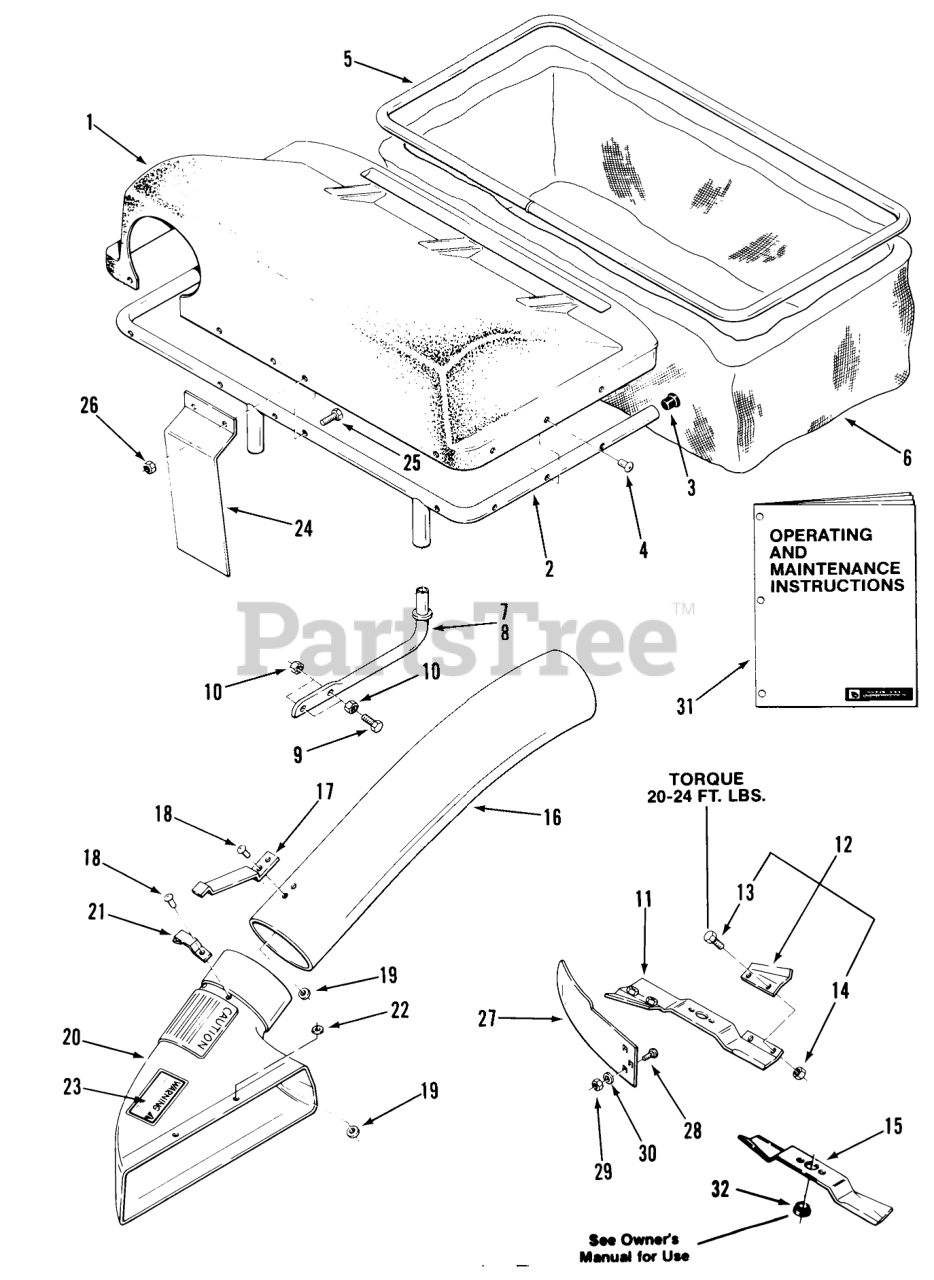

07-06CL02 - Toro 32" Bagger (1982) A-SERIES REAR GRASS BAGGER-5 BUSHEL (.2 CU. M) VEHICLE IDENTIFICATION NUMBER 07-06BA01, 02 Parts Diagram

32" Bagger

A-SERIES REAR GRASS BAGGER-5 BUSHEL (.2 CU. M) VEHICLE IDENTIFICATION NUMBER 07-06BA01, 02 Parts Diagram

  • Title

1

Toro 109613

Top

$

$

Not available

2

Toro 109614

Frame

$

$

Not available

3

Toro 109618

Plug

$

$

Not available

4

Toro 923802

RIVET

$

$

Not available

5

Toro 109619

FRAME-BAG B

$187.99

$

Usually ships in 3-6 days

0

6

Toro 109620

Bag
(Superseded to 112174)

$

$

Not available

7

Toro 109621

Support Rod LH

$

$

Not available

8

Toro 109622

ROD-QUICK ATTACH RH

$

$

Not available

9

Toro 908019

Bolt
(Superseded to 322-5)

Note: Indicates Part of Loose Parts Package 803374.

$0.99

$

In Stock, Qty 20+

0

10

Toro 915112

Nut
(Superseded to 3217-6)

Note: Indicates Part of Loose Parts Package 803374.

$1.49

$

In Stock, Qty 12

0

11

Toro 108684

High Lift Blade

$

$

Not available

12

Toro 108006

Lift Tab Kit (Includes 13, 14)

$

$

Not available

13

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

14

Toro 108687

NUT-LOCK 5/16-18

$1.49

$

Usually ships in 3-6 days

0

15

Toro 109106

BLADE 16.50

$100.99

$

Usually ships in 3-6 days

0

16

Toro 109624

CHUTE

$

$

Not available

17

Toro 109625

SPRING-TUBE

$

$

Not available

18

Toro 923792

POPRIVET

$

$

Not available

19

Toro 920003

WASHER

$

$

Not available

20

Toro 109627

Elbow
(Superseded to 109626)

$

$

Not available

21

Toro 109628

BRACKET

$9.99

$

Usually ships in 3-6 days

0

22

Toro 920038

Collar
(Superseded to 3-2563)

Note: Indicates Part of Loose Parts Package 803374.

$0.99

$

In Stock, Qty 20+

0

23

Toro 108627

DECAL-WARNING

$

$

Not available

24

Toro 109629

SHIELD MUFFLER

$

$

Not available

25

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

Note: Indicates Part of Loose Parts Package 803374.

$4.99

$

Usually ships in 3-6 days

0

26

Toro 915111

Nut
(Superseded to 3217-5)

Note: Indicates Part of Loose Parts Package 803374.

$0.99

$

In Stock, Qty 8

0

27

Toro 109105

BAFFLE-DEFLECTOR B

$

$

Not available

28

Toro 900285

Bolt Carnage
(Superseded to 3230-18)

Note: Indicates Part of Loose Parts Package 803374.

$5.49

$

In Stock, Qty 5

0

29

Toro 915112

Nut
(Superseded to 3217-6)

Note: Indicates Part of Loose Parts Package 803374.

$1.49

$

In Stock, Qty 12

0

30

Toro 920082

Lockwasher
(Superseded to 325-34)

Note: Indicates Part of Loose Parts Package 803374.

$3.99

$

In Stock, only 2 left!

0

31

Toro 810281R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 803374.

$

$

Currently unavailable

31

Toro 810281R1

Operating and Maintenance Instructions

Note: 07-06BA02 Only

$

$

Currently unavailable

31

Toro 810308R1

Operation and Maintenance Instructions

Note: Indicates Part Loose Parts Package 803397.

$

$

Currently unavailable

32

Toro 109916

SPACER BLADE

Note: Indicates Part Loose Parts Package 803397.

$56.99

$

Usually ships in 3-6 days

0
