07-06BZ02 - Toro 50" Vacuum Bagger (1986) 718-Z 5.5 BUSHEL & 6.7 BUSHEL MOUNTED VACUUMS (VEHICLE IDENTIFICATION NUMBERS 07-06BZ02 & 07-07BZ02) Parts Diagram

50" Vacuum Bagger

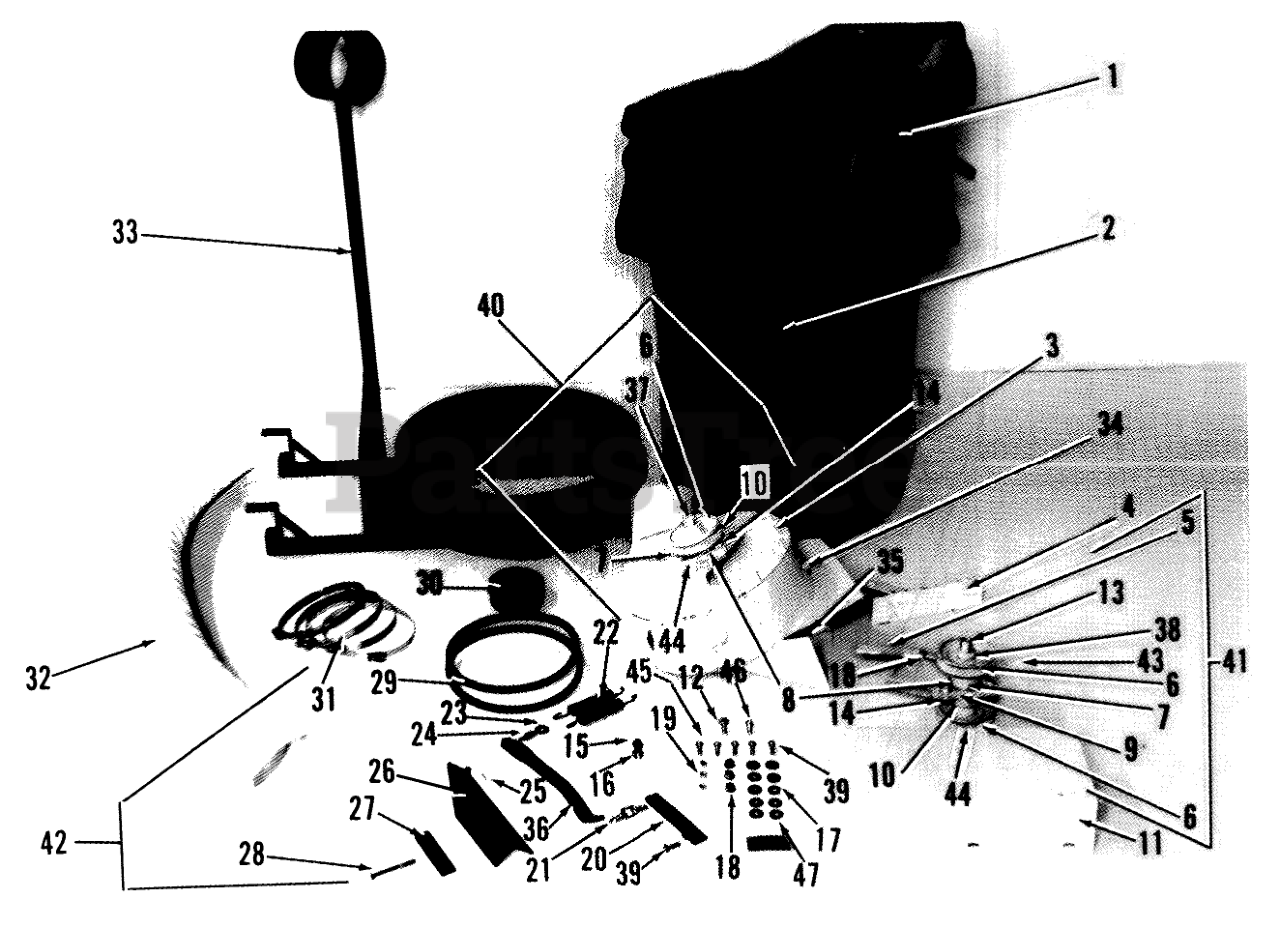

718-Z 5.5 BUSHEL & 6.7 BUSHEL MOUNTED VACUUMS (VEHICLE IDENTIFICATION NUMBERS 07-06BZ02 & 07-07BZ02) Parts Diagram

  • Title

1

Toro 112575

Collector Cover
(Superseded to 78-0700)

$

$

Not available

2

Toro 50102

Collector
(Superseded to 79-0130)

$

$

Not available

Toro 50103

Collector 6.7 Bu Only
(Superseded to 79-0130)

$

$

Not available

3

Toro 50181

Blower Top

$

$

Not available

4

Toro 50182

Blower Inlet Deflector

$

$

Not available

5

Toro 50101

Strap

$

$

Not available

6

Toro 20265

PULLEY

$57.99

$

Usually ships in 3-6 days

0

7

Toro 20262

Spacer

$

$

Not available

8

Toro 20260

Drive Hub

$

$

Not available

9

Toro 50100

Drive Bracket

$

$

Not available

10

Toro 20261

Bearing
(Superseded to 104070)

$93.99

$

Usually ships in 3-6 days

0

11

Toro 50148

Belt Cover

$

$

Not available

12

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

13

Toro B142

Bolt 3/4-16 x 6

$

$

Not available

14

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

15

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

16

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

17

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

19

Toro N103W

Nut 5/16-18 Ser F1

$

$

Currently unavailable

20

Toro 50185

Stabilizer Adjustment Bracket

$

$

Not available

21

Toro 50149

Chain

$

$

Not available

22

Toro 30225

SPRING TENSION

$

$

Not available

23

Toro B100

Eye Bolt
(Superseded to 113688)

$

$

Not available

24

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

25

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

26

Toro 50173

Pivot Bracket

$

$

Not available

27

Toro 50162

Pivot Bracket Support Bar

$

$

Not available

28

Toro B140

Hex Bolt 3/8-16 x 3

$

$

Currently unavailable

29

Toro 50104

BELT-BLOWER DRIVE

$

$

Not available

30

Toro 30221

Sheave-2 Groove

$

$

Not available

31

Toro 50186

Hose Clamps
(Superseded to 102528)

$12.99

$

Usually ships in 3-6 days

0

32

Toro 50131

Discharge Tube

$

$

Not available

33

Toro 112388

Collector Barrel Mounting Bracket 5.5 Bu Only

$

$

Not available

Toro 112389

Collector Barrel Mounting Bracket 6.7 Bu Only

$

$

Not available

34

Toro 50180

Blower Welded Bottom

$

$

Not available

35

Toro 50108

IMPELLER BLOWER

$1537.99

$

Usually ships in 3-6 days

0

36

Toro 50175

Pivot Arm

$

$

Not available

37

Toro B111

BOLT HEX 3/4-16X61/2

$

$

Not available

38

Toro 915090

Nut
(Superseded to 32146-20)

$3.49

$

In Stock, Qty 6

0

39

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

40

Toro 112573

Blower-Complete

$

$

Not available

41

Toro 112574

Blower Dbl. Pulley Drive-Complete

$

$

Not available

42

Toro 112572

Loose Parts Package

$

$

Not available

43

Toro 20264

SPACER

$

$

Not available

44

Toro 1030

Zerk

$

$

Not available

45

Toro B159

Carriage Bolt 5/16-18 x 1/2

$

$

Currently unavailable

46

Toro P115

Clevis Pin 3/8 x 1 1/2

$

$

Currently unavailable

47

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0
