063 (190-063-000) - Yard-Man Twin Bagger Grass Catcher Assembly Parts Diagram

Twin Bagger

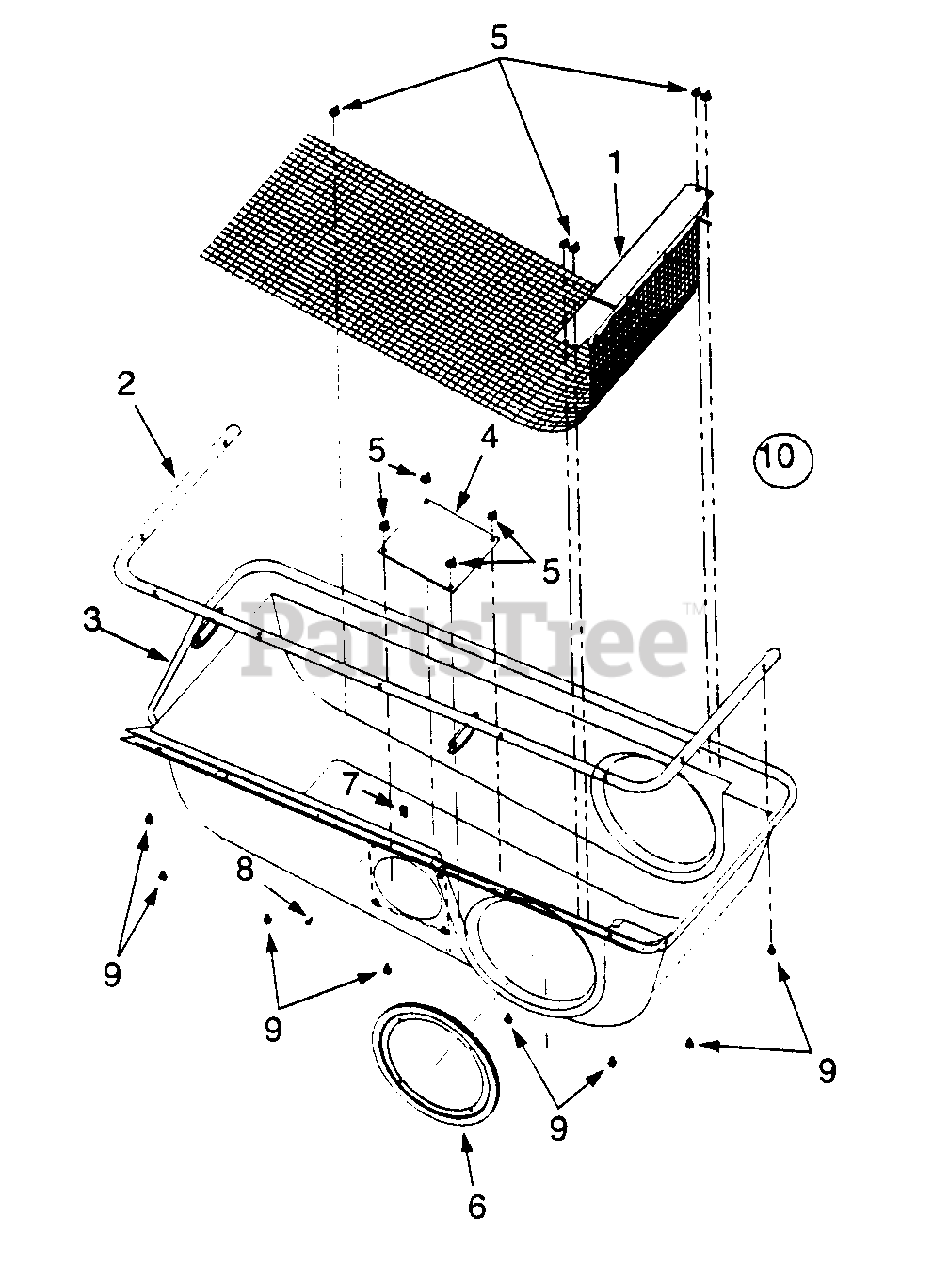

Grass Catcher Assembly Parts Diagram

  • Title

1

Cub Cadet 16847A

Screen Assembly

Variations

Cub Cadet 16847A-0637

SCREEN ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 16596

Hinge Bracket Assembly
(Superseded to 16596-0637)

Variations

Cub Cadet 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-0821A

Grass Catcher Cover

Note: Model 063 Only

$

$

Not available

Cub Cadet 731-1417

Grass Catcher Cover

Note: Model 103 Only

$

$

Not available

4

Cub Cadet 731-0824A

Plastic Plate

$

$

Not available

5

Cub Cadet 726-0258

Zip Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 723-0412

Tube Seal

Note: Model 063 Only

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-0413

Tube Seal

Note: Model 103 Only

$30.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0147

U-Type Speed Nut

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0351

Screw, #10-16 x 0.5"

Note: Model 063 Only

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 710-0473

Screw, #10-24 x 0.5"

Note: Model 103 Only

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-0599

Hex Screw, 1/4-20 x 0.5"

Note: Model 063 Only

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0896

Hex Screw, 1/4-14 x 0.625"

Note: Model 103 Only

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 16594A

Grass Catcher Cover Assembly

Note: Model 063 Only

$

$

Not available

Cub Cadet 631-0007

Grass Catcher Cover Assembly

Note: Model 103 Only

$

$

Not available
