0616-0 - Craftsman 1,500 PSI Pressure Washer Engine Breakdown (Part 2) Parts Diagram

1,500 PSI Pressure Washer

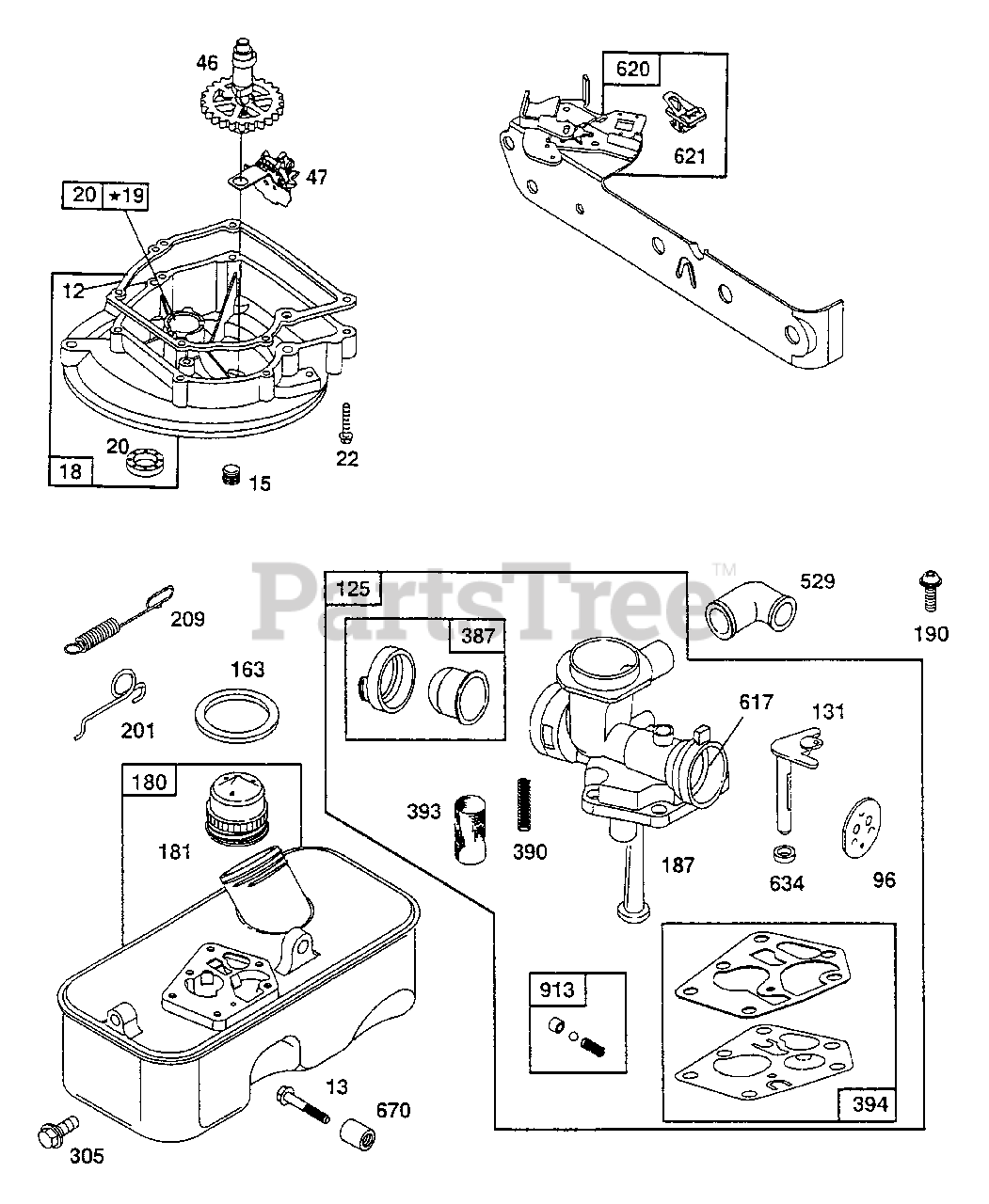

Engine Breakdown (Part 2) Parts Diagram

  • Title

12

Briggs & Stratton 270833

Crankcase Gasket (.015" Thick, Standard)
(Superseded to 692218)

$

$

Not available

12

Briggs & Stratton 270895

Crankcase Gasket (.005" Thick)

$9.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270896

Crankcase Gasket (.009" Thick)

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Hex Screw
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94720

Oil Drain Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 395384

Engine Sump
(Superseded to 590569)

$104.99

$

In Stock, Qty 5

0

19

Briggs & Stratton 293709

Bushing

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Oil Seal
(Superseded to 391483S)

$5.99

$

In Stock, Qty 6

0

22

Briggs & Stratton 94607

Hex Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 493747

Cam Gear
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 491688

Oil Slinger
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

96

Briggs & Stratton 224412

Throttle Valve
(Superseded to 691190)

$7.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 497619

Carburetor
(Superseded to 498809)

$52.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 281437

Throttle Shaft
(Superseded to 691931)

$19.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

Air Cleaner Gasket
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

Fuel Tank

$79.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 497929

Fuel Tank Cap
(Superseded to 497929S)

$5.49

$

In Stock, Qty 8

0

187

Briggs & Stratton 496046

Fuel Pipe
(Superseded to 496046S)

$8.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 93440

Phillips Screw
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 262753

Link
(Superseded to 690347)

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 262942

Governor Spring

$7.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

Hex Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

387

Briggs & Stratton 494408

Carburetor Primer
(Superseded to 694394)

$4.49

$

In Stock, Qty 12

0

390

Briggs & Stratton 262764

Diaphragm Spring
(Superseded to 691839)

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 262734

Carburetor Screen
(Superseded to 691837)

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 495770

Diaphragm Carburetor
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 67838

Grommet (Breather)
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

617

Briggs & Stratton 270334

Intake Manifold Seal

$

$

Currently unavailable

620

Briggs & Stratton 495485

Control Bracket
(Superseded to 691445)

$39.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Stop Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 280566

Shaft Washer
(Superseded to 691321)

$4.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 94047

Spacer
(Superseded to 691633)

$4.99

$

In Stock, only 2 left!

0

913

Briggs & Stratton 494409

Check Valve Seat

$

$

Not available
