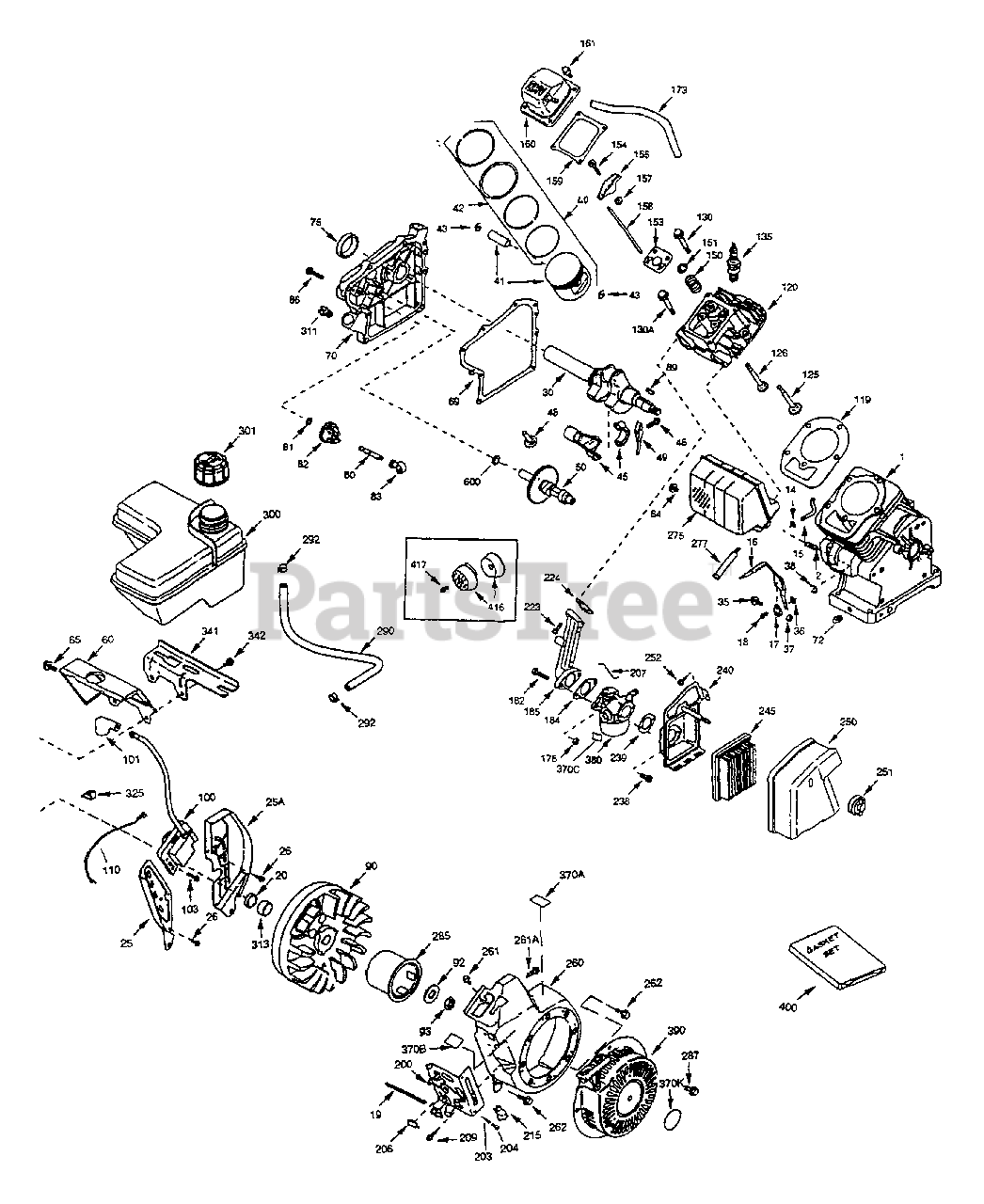

0615-0 - Craftsman 1,900 PSI Pressure Washer Repair Parts Drawing No. 97360 Parts Diagram

1,900 PSI Pressure Washer

Repair Parts Drawing No. 97360 Parts Diagram

  • Title

1

Briggs & Stratton 36768

Cylinder

Note: (Includes items 2, 20, 72 & 125)

$

$

Currently unavailable

2

Briggs & Stratton 26727

Dowel Pin
(Superseded to 26727GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 28277

Washer

$

$

Not available

15

Briggs & Stratton 30589

Governor Rod

$

$

Currently unavailable

16

Briggs & Stratton 36618

Governor Lever

$

$

Currently unavailable

17

Briggs & Stratton 36700

Governor Lever Clamp

$

$

Currently unavailable

18

Briggs & Stratton 650548

No. 8-32 x 5/16" Hex Screw

$

$

Currently unavailable

19

Briggs & Stratton 36750

Extension Spring

$

$

Currently unavailable

20

Briggs & Stratton 32600

Oil Seal

$

$

Currently unavailable

25

Briggs & Stratton 36621

Air Baffler

$

$

Currently unavailable

25A

Briggs & Stratton 36622

Air Baffle

$

$

Currently unavailable

26

Briggs & Stratton 30200

#10-24 x 9/16" Screw

$

$

Currently unavailable

30

Briggs & Stratton 34734A

Crankshaft

$

$

Currently unavailable

35

Briggs & Stratton 29826

Screw, #10 x 3/4"

$

$

Currently unavailable

36

Briggs & Stratton 29918

Lock Washer

$

$

Currently unavailable

37

Briggs & Stratton 29216

Lock Nut, #10-32
(Superseded to 7029216YP)

$78.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 29642

Retaining Ring

$

$

Currently unavailable

40

Briggs & Stratton 35544A

Piston Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Briggs & Stratton 35545A

Piston, Pin & Ring Set (0.01 O.S.)

$

$

Currently unavailable

40

Briggs & Stratton 35546

Piston, Pin & Ring Set (0.02 O.S.)

$

$

Currently unavailable

41

Briggs & Stratton 35541

Piston & Pin Assy. (STD.)

$

$

Currently unavailable

41

Briggs & Stratton 35542

Piston & Pin Assy. (0.01 O.S.)

$

$

Currently unavailable

41

Briggs & Stratton 35543

Piston & Pin Assy. (0.02 O.S)

$

$

Currently unavailable

42

Briggs & Stratton 35547A

Piston Ring Set (STD.)

$

$

Currently unavailable

42

Briggs & Stratton 35548A

Piston Ring Set (0.01 O.S.)

$

$

Currently unavailable

42

Briggs & Stratton 35549

Piston Ring Set (0.02 O.S.)

$

$

Currently unavailable

43

Briggs & Stratton 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Briggs & Stratton 32875A

Connecting Rod Assy.

$

$

Currently unavailable

46

Briggs & Stratton 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Briggs & Stratton 35616

Valve Lifter

$

$

Currently unavailable

49

Briggs & Stratton 36611

Oil Dipper

$

$

Currently unavailable

50

Briggs & Stratton 36620

Camshaft [BCR]

$

$

Currently unavailable

60

Briggs & Stratton 36623

Blower Housing Ext.

$

$

Currently unavailable

64

Briggs & Stratton 650378

Screw, 1/4"-20 x 5/8"

$

$

Currently unavailable

65

Briggs & Stratton 30200

No. 10-24 x 9/16" Screw

$

$

Currently unavailable

69

Briggs & Stratton 36624

Cylinder Cover Gasket

$

$

Currently unavailable

70

Briggs & Stratton 36761

Cylinder Cover Assy.

$

$

Currently unavailable

72

Briggs & Stratton 27642

Oil Drain Plug

$

$

Not available

75

Briggs & Stratton 28460

Oil Seal
(Superseded to 7028460YP)

$4.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 30574A

Governor Shaft

$

$

Currently unavailable

81

Briggs & Stratton 30590A

Flat Washer

$

$

Currently unavailable

82

Briggs & Stratton 30591

Governor Gear

Note: Includes item No. 81

$

$

Currently unavailable

83

Briggs & Stratton 36057

Governor Spool

$

$

Currently unavailable

86

Briggs & Stratton 650488

1/4-20 x 1-1/4" Screw

$

$

Currently unavailable

89

Briggs & Stratton 610961

Flywheel Key

$

$

Currently unavailable

90

Briggs & Stratton 611205

Flywheel

$

$

Currently unavailable

92

Briggs & Stratton 650815

Belleville Washer

$

$

Currently unavailable

93

Briggs & Stratton 650816

Flywheel Nut

$

$

Currently unavailable

100

Briggs & Stratton 34443A

Solid State Ignition

$

$

Currently unavailable

101

Briggs & Stratton 610118

Spark Plug Cover

$

$

Currently unavailable

102

Briggs & Stratton 651007

Solid State Mounting Stud

$

$

Currently unavailable

103

Briggs & Stratton 650814

No. 10-24 x 1" Torx Screw

$

$

Currently unavailable

110

Briggs & Stratton 36767

Ground Wire

$

$

Currently unavailable

111

Briggs & Stratton 611207

Low Oil Sensor

$

$

Not available

111A

Briggs & Stratton 611212

Low Oil Indicator Light

$

$

Currently unavailable

112

Briggs & Stratton 35967

Low Oil Sensor Gasket

$

$

Currently unavailable

113

Briggs & Stratton 650950

Torx T-25 #10-24 x 5/8" Screw

$

$

Currently unavailable

119

Briggs & Stratton 36738

Cylinder Head Gasket

$

$

Currently unavailable

120

Briggs & Stratton 36739

Cylinder Head

$

$

Currently unavailable

125

Briggs & Stratton 36471

Exhaust Valve Std.

Note: Includes item No. 151

$

$

Currently unavailable

125

Briggs & Stratton 36472

Exhaust Valve 1/32" OS

Note: Includes item No. 151

$

$

Currently unavailable

126

Briggs & Stratton 29314B

Std. Intake Valve

$

$

Currently unavailable

126

Briggs & Stratton 29315C

O.S. Intake Valve

$

$

Currently unavailable

130

Briggs & Stratton 650912

5/16-18 x 1-1/2" Screw

$

$

Currently unavailable

130A

Briggs & Stratton 650999

5/16-18 x 2-41/64" Screw

$

$

Currently unavailable

135

Briggs & Stratton 34645

Spark Plug [RJ-17LM]

$

$

Currently unavailable

150

Briggs & Stratton 31672

Valve Spring

$

$

Currently unavailable

151

Briggs & Stratton 31673

Lower Valve Spring Cap

$

$

Currently unavailable

153

Briggs & Stratton 36649

Push Rod Guide

$

$

Currently unavailable

154

Briggs & Stratton 650913

Rocker Arm Stud

$

$

Currently unavailable

155

Briggs & Stratton 35624A

Rocker Arm

$

$

Currently unavailable

157

Briggs & Stratton 650914

1/4"-28 Nut

$

$

Currently unavailable

158

Briggs & Stratton 36629

Push Rod

$

$

Currently unavailable

159

Briggs & Stratton 35626

Rocker Arm Cover Gasket

$

$

Currently unavailable

160

Briggs & Stratton 36630A

Rocker Arm Cover

$

$

Currently unavailable

161

Briggs & Stratton 651008

1/4"-20 x 31/64" Screw

$

$

Currently unavailable

161A

Briggs & Stratton 651012

Stud

$

$

Currently unavailable

173

Briggs & Stratton 36675

Breather Tube

$

$

Currently unavailable

178

Briggs & Stratton 650852

1/4"-20 Nut

$

$

Currently unavailable

182

Briggs & Stratton 650451

1/4-20 x 1" Screw

$

$

Currently unavailable

184

Briggs & Stratton 26756

Carburetor Gasket

$

$

Currently unavailable

185

Briggs & Stratton 36631

Intake Pipe

$

$

Currently unavailable

200

Briggs & Stratton 36747

Control Bracket Assembly

$

$

Currently unavailable

203

Briggs & Stratton 31342

Compression Spring

$

$

Currently unavailable

204

Briggs & Stratton 650549

5-40 x 7/16" Screw

$

$

Currently unavailable

206

Briggs & Stratton 610973

Terminal Assembly

$

$

Currently unavailable

207

Briggs & Stratton 36632

Throttle Link

$

$

Currently unavailable

209

Briggs & Stratton 650821

#10-32 x 1/2" Screw

$

$

Currently unavailable

215

Briggs & Stratton 36638

Control Knob

$

$

Currently unavailable

223

Briggs & Stratton 650451

5/16-18 x 1" Screw

$

$

Currently unavailable

224

Briggs & Stratton 36581

Intake Pipe Gasket

$

$

Currently unavailable

238

Briggs & Stratton 28820

#10-32 x 1/2" Screw
(Superseded to 7045199YP)

$222.99

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 27272A

Air Cleaner Gasket

$

$

Currently unavailable

240

Briggs & Stratton 36633

Air Cleaner Body

Note: Includes item No. 239

$

$

Currently unavailable

245

Briggs & Stratton 36046

Air Cleaner Filter

$

$

Currently unavailable

250

Briggs & Stratton 36635

Air Cleaner Cover

$

$

Currently unavailable

251

Briggs & Stratton 650886

Wing Nut

$

$

Currently unavailable

252

Briggs & Stratton 650821

#10-32 x 1/2" Screw

$

$

Currently unavailable

253

Briggs & Stratton 36701

Compression Release

$

$

Currently unavailable

254

Briggs & Stratton 36702

Compression Release Spring

$

$

Currently unavailable

260

Briggs & Stratton 36812

Fuel Tank 4 Blower Housing

$

$

Currently unavailable

261

Briggs & Stratton 651008

1/4-20 x 31/64" Screw

$

$

Currently unavailable

261A

Briggs & Stratton 650821

#10-32 x 1/2" Screw

$

$

Currently unavailable

262

Briggs & Stratton 651008

1/4-20 x 31/64" Screw

$

$

Currently unavailable

275

Briggs & Stratton 36641

Muffler

$

$

Currently unavailable

277

Briggs & Stratton 651009

1/4-20 x 2-9/32" Screw

$

$

Currently unavailable

285

Briggs & Stratton 35985B

Starter Cup

$

$

Currently unavailable

287

-----

Rivet

Note: Can be purchased locally

$

$

Not available

290

Briggs & Stratton 30705

Fuel Line

$

$

Currently unavailable

292

Briggs & Stratton 26460

Fuel Line Clamp

$

$

Currently unavailable

300

Briggs & Stratton 36812

Fuel Tank Blower Housing

$

$

Currently unavailable

301

Briggs & Stratton 36246

Fuel Cap

$

$

Currently unavailable

311

Briggs & Stratton 27625

Oil Fill Plug

$

$

Currently unavailable

313

Briggs & Stratton 34080

Spacer

$

$

Currently unavailable

325

Briggs & Stratton 29443

Wire Clip
(Superseded to 7061017YP)

$

$

Not available

341

Briggs & Stratton 36644

Fuel Tank Bracket

$

$

Currently unavailable

342

-----

UNKNOWN

$

$

Not available

370A

Briggs & Stratton 36261

Lubrication Decal

$

$

Not available

370B

Briggs & Stratton 33107

Control Decal

$

$

Currently unavailable

370C

Briggs & Stratton 36260

Primer Decal

$

$

Currently unavailable

370K

Briggs & Stratton 36695

Starter Decal

$

$

Currently unavailable

380

Briggs & Stratton 640017

Carburetor

Note: Includes items No. 184

$

$

Currently unavailable

390

Briggs & Stratton 590736

Rewind Starter

$

$

Currently unavailable

400

Briggs & Stratton 36716A

Gasket Set

$

$

Currently unavailable

416

Briggs & Stratton 36085

Spark Arresting Screen and Cover

Note: Optional

$

$

Currently unavailable

417

Briggs & Stratton 650760

#8-32 x 3/8" Screw

Note: Optional

$

$

Currently unavailable

600

Briggs & Stratton 651013

Washer

$

$

Currently unavailable
