0602-0 - Generac CP 5,700 PSI Pressure Washer Pressure Washer Parts Diagram

CP 5,700 PSI Pressure Washer

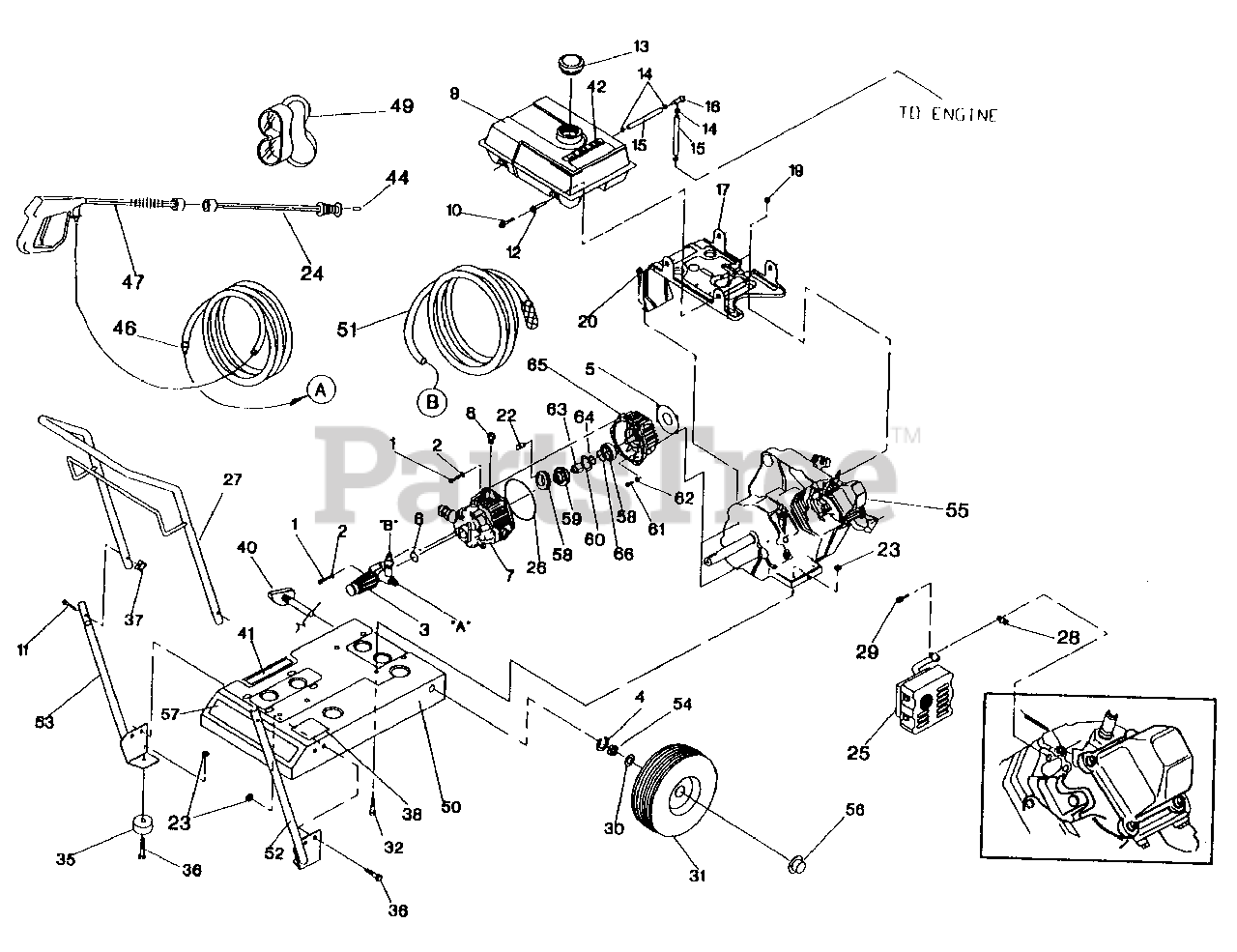

Pressure Washer Parts Diagram

  • Title

1

Briggs & Stratton 40945

M6-1 x 20 Socket Head Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

2

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 95212A

Unloader Assembly

$

$

Not available

4

Briggs & Stratton 22246

Lock Washer
(Superseded to 5022246)

$912.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 93871

Engine Adaptor Gasket
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 93723

2.0 x 25 x 2.6 O-Ring
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 95319A

1500 - 2000 Pump Assembly

$

$

Currently unavailable

8

Briggs & Stratton 95454

Oil Breather Fill Cap

$

$

Currently unavailable

9

Briggs & Stratton 94994A

1-1/2 Gallon Fuel Tank

$

$

Currently unavailable

10

Briggs & Stratton 96001

M6-1.0 x 21 Shoulder Bolt

$

$

Not available

11

Briggs & Stratton 31669

1/4-20 x 1-3/4 Carriage Bolt
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 96002

Tank Bushing
(Superseded to 96002GS)

$5.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 48031C

Hose Clamp

$

$

Not available

15

Briggs & Stratton 30340

1/4" I.D. Fuel Hose

$3155.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 96193

Fuel Shut-Off Valve
(Superseded to 698181)

$11.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 95214

220 Fuel Tank Cradle

$

$

Currently unavailable

19

Briggs & Stratton 52857

M6-1.0 Locking Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83512

M8-1.25 x 15mm Taptite
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94944

Pivot Piston Shoe
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 52858

MS Locking Hex Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 98539E

1.30 Dia. Nozzle Head

$

$

Not available

25

Briggs & Stratton 88688

Muffler Assembly
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 93790

114 x 119 x 2.6 O-Ring
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 98696

Handle
(Superseded to 98696GS)

$94.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 89476

Exhaust Gasket
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 40976

M8 x 20 Socket Head Capscrew

$

$

Not available

30

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 88521

10 Dia. - 4 Wide Wheel
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 39414

M8 x 35 Hex Head Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 87841

Vibration Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 39253

M8 x 20 Hex Head Capscrew
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

37

Briggs & Stratton 97178

Knob Handle
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 96414

Important Decal

$

$

Currently unavailable

40

Briggs & Stratton 93728A

Pin-Wheel Axle
(Superseded to 93728AGS)

$5.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 96514

Caution Decal (English)

$

$

Currently unavailable

42

Briggs & Stratton 96685

Caution Decal (Spanish)
(Superseded to 96685GS)

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 99731

1.30 Dia. Replacement Nozzle
(Superseded to 99731GS)

$5.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 89634

50 Ft. Hose

$

$

Currently unavailable

47

Briggs & Stratton 97633

Gun
(Superseded to 189533GS)

$94.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 96963

Mounting Base

$

$

Not available

51

Briggs & Stratton 92550

Injection Hose Assembly
(Superseded to 92550GS)

Note: (Replacement)

$67.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 98698A

Tube Support Assembly-R.H.

$

$

Not available

53

Briggs & Stratton 98698B

Tube Support Assembly-L.H.

$

$

Currently unavailable

54

Briggs & Stratton 25391

Jam Nut
(Superseded to 5025391)

$4.49

$

In Stock, Qty 20+

0

55

Briggs & Stratton ENG96256

Generac Engine

$

$

Currently unavailable

56

Briggs & Stratton 75402

.50 Dia. Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

57

Briggs & Stratton 98822

Logo Decal
(Superseded to 98822GS)

$7.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 96542

Roller Thrust Bearing
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

59

Briggs & Stratton 96865

8mm Axial Cam Lift

$

$

Currently unavailable

60

Briggs & Stratton 97570

Thrust Washer
(Superseded to 97570GS)

$4.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 23707

5/16"-24 x 1" Socket Head Capscrew
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 92479

M8 Ribbed Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 95435

Hex Shaft Adaptor
(Superseded to 95435GS)

$8.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 95524

Washer Retainer
(Superseded to 95524GS)

$2.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 96430Z

Anodized Eng. Adaptor
(Superseded to 96430AGS)

$70.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 97675

C-Ring
(Superseded to 97675GS)

$3.49

$

Usually ships in 2-12 days

0
