06-993067 (132-673G372) - Hechinger Lawn Tractor (1992) Right Hand Transaxle Parts Diagram

Lawn Tractor

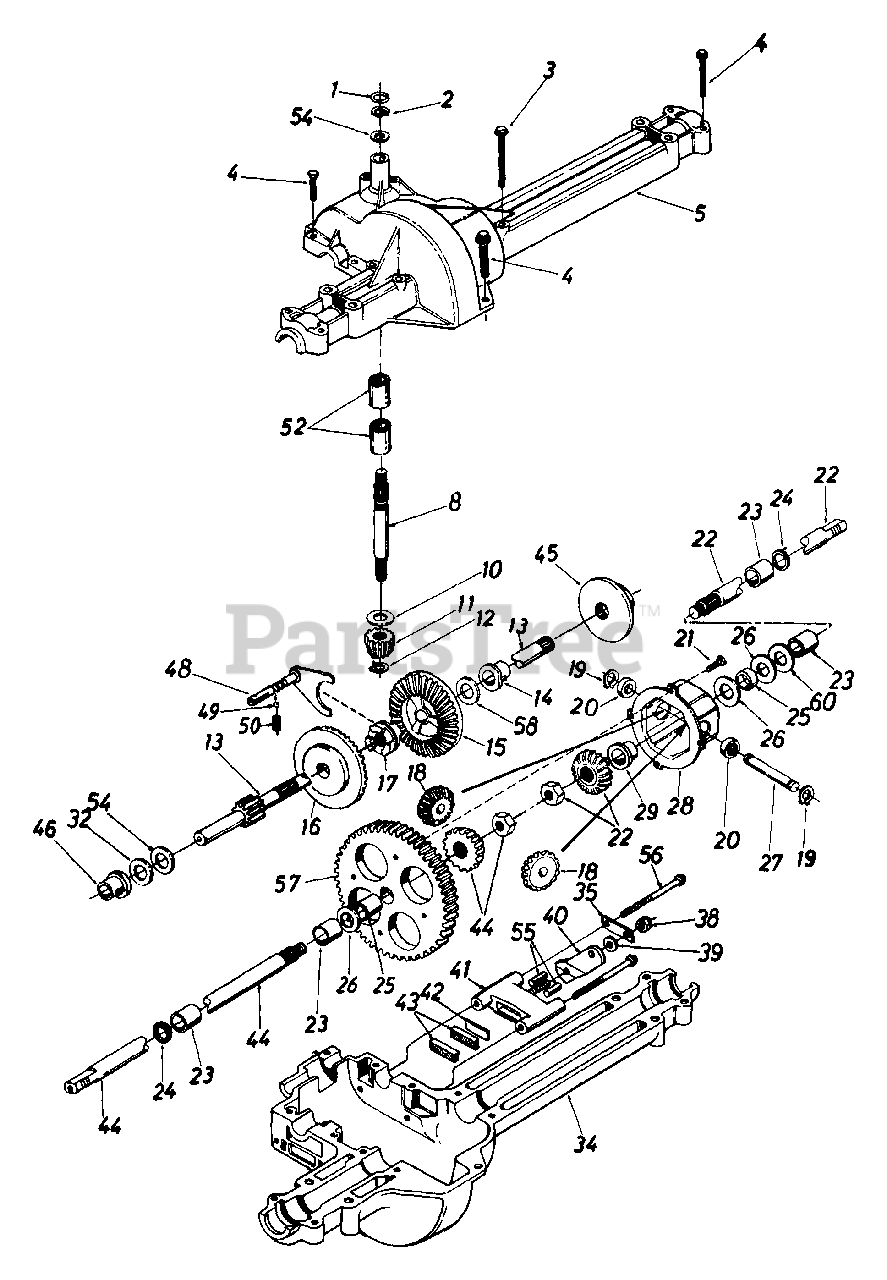

Right Hand Transaxle Parts Diagram

  • Title

MTD 918-0163B

Transaxle Complete Replaces 618-0073
(Superseded to 918-0163D)

$

$

Not available

1

MTD 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

2

MTD 716-0171

Retaining - Ring
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

3

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.99

$

In Stock, Qty 13

0

4

MTD 710-0809

Hex Tap Scr. 1/4-20 x 1.25" Lg.

$6.99

$

In Stock, Qty 19

0

5

MTD 719-0314

Upper Housing
(Superseded to 753-0678)

Note: New Part

$

$

Not available

8

MTD 711-0861

Input Shaft

$

$

Not available

10

MTD 736-0335

Thrust Washer 5/8" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 8

0

11

MTD 717-0633

Pinion Input 14T
(Superseded to 917-0633)

$22.99

$

In Stock, only 1 left!

0

12

MTD 716-0171

Retaining Ring
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

13

MTD 711-0943

Drive Shaft - R.H. Brake
(Superseded to 753-0595)

Note: New Part

$

$

Not available

14

MTD 741-0336

Flange Brg. 5/8" I.D. x 3/4" Lg.
(Superseded to 941-0336)

$11.99

$

In Stock, only 2 left!

0

15

MTD 717-1362

Bevel Gear 42T Small I.D.
(Superseded to 917-1362)

Note: New Part

$51.99

$

In Stock, only 1 left!

0

16

MTD 717-1363

Bevel Gear 42T Large I.D.
(Superseded to 917-1363)

Note: New Part

$51.99

$

Usually ships in 3-6 days

0

17

MTD 718-0228

Clutch Collar

Note: New Part

$25.99

$

In Stock, only 1 left!

0

18

MTD 717-1020

Miter Gear 157 (H.D.)

$

$

Not available

19

MTD 716-0184

Snap Ring
(Superseded to 916-0184)

$4.99

$

Usually ships in 3-6 days

0

20

MTD 741-0589

Thrust Bearing
(Superseded to 941-0589)

$6.49

$

Usually ships in 3-6 days

0

21

MTD 710-0862A

Pan Head Scr. 1/4-20 x .50" Lg. w/Patch

$4.99

$

Usually ships in 3-6 days

0

22

MTD 717-0539

Axle R.H. Ass'y.

$

$

Not available

23

MTD 741-0340

Sleeve Bearing 3/4" I.D. x 1.0" Lg.
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 15

0

24

MTD 721-0179

Oil Seal 3/4" I.D.

$8.99

$

In Stock, only 2 left!

0

25

MTD 750-0767

Axle Spacer

Note: New Part

$5.99

$

Usually ships in 3-6 days

0

26

MTD 736-0445

Fl-Wash..760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 13

0

27

MTD 711-0918

Cross Shaft

$15.99

$

Usually ships in 3-6 days

0

28

MTD 717-1252

Differential Can Ass'y.
(Superseded to 918-04089)

$

$

Not available

29

Part of Ref. 28

$

$

Not available

32

MTD 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

MTD 736-0336

Fl-Wash..5/8" I.D. x 1" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

MTD 736-0494

Thrust Wash. 5/8" I.D. x 1" O.D. x .035" Thk.

$4.99

$

In Stock, only 4 left!

0

MTD 736-0337

Fl-Wash..5/8" I.D. x 1" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

?33

MTD 736-0445

Fl-Wash..760" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 13

0

34

MTD 719-0313

Lower Housing
(Superseded to 719-0313B)

Note: New Part

$154.99

$

Usually ships in 3-6 days

0

35

MTD 718-0150

Anti-Rotation Brkt.

$4.99

$

Usually ships in 3-6 days

0

38

MTD 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

39

MTD 736-0371

Fl-Wash..344" I.D. x .875" O.D.

$4.49

$

In Stock, only 3 left!

0

40

MTD 717-0700

Actuating Arm

$14.99

$

In Stock, only 1 left!

0

41

MTD 761-O198

Brake Yoke

$

$

Currently unavailable

42

MTD 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

43

MTD 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

Usually ships in 3-6 days

0

44

MTD 717-0538

Axle L.H. Ass'y.

$

$

Not available

45

MTD 761-0202

Brake Disc

Note: New Part

$15.99

$

Usually ships in 3-6 days

0

46

MTD 741-0337

Flange Bearing 5/8" I.D. x 15/16" Lg.
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 6

0

48

MTD 611-0011

Shift Fork Ass'y.
(Superseded to 911-0011)

$42.99

$

In Stock, only 3 left!

0

49

MTD 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

50

MTD 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

?51

MTD 714-0169

#9 Hi-Pro Key 3/16" x 3/4" Dia. HT
(Superseded to 914-0169)

$10.99

$

In Stock, Qty 7

0

52

MTD 741-0335

Needle Brg. 5/8" I.D. x 1/2" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 4 left!

0

54

MTD 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

55

MTD 741-0343

Actuating Pin 5/16" Dia.

$10.99

$

In Stock, Qty 7

0

56

MTD 710-1206

Hex Wash Hd. Self-Tap Scr. 1/4-20 Thd.

$7.49

$

In Stock, Qty 6

0

57

MTD 717-1364

Differential Gear 58T
(Superseded to 917-04292)

Note: New Part

$

$

Not available

58

MTD 736-0349

Fl-Wash. 5/8" I.D. x 1" O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

MTD 736-0495

Thrust Wash. 5/8" I.D. x 1" O.D. x .025" Thk.

$4.49

$

In Stock, only 2 left!

0

60

MTD 736-0492

Fl-Wash..76" I.D. x 1.5" O.D. x .010" Thk.
(Superseded to 936-0492)

$6.99

$

Usually ships in 3-6 days

0

MTD 736-0493

Fl-Wash..76" I.D. x 1.5" O.D. x .020" Thk.
(Superseded to 936-0493)

$4.99

$

Usually ships in 3-6 days

0

MTD 736-0351

Fl-Wash..76" I.D. x 1.5" O.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

MTD 736-0445

Fl-Wash..76" I.D. x 1.5" O.D. x .060" Thk.

$4.49

$

In Stock, Qty 13

0

MTD 737-0148

Grease - Shell (15 oz.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
