06-985303 (112-410R372) - Hechinger Walk-Behind Mower (1992) Engine, Handle And Grass Bag Assembly Parts Diagram

Walk-Behind Mower

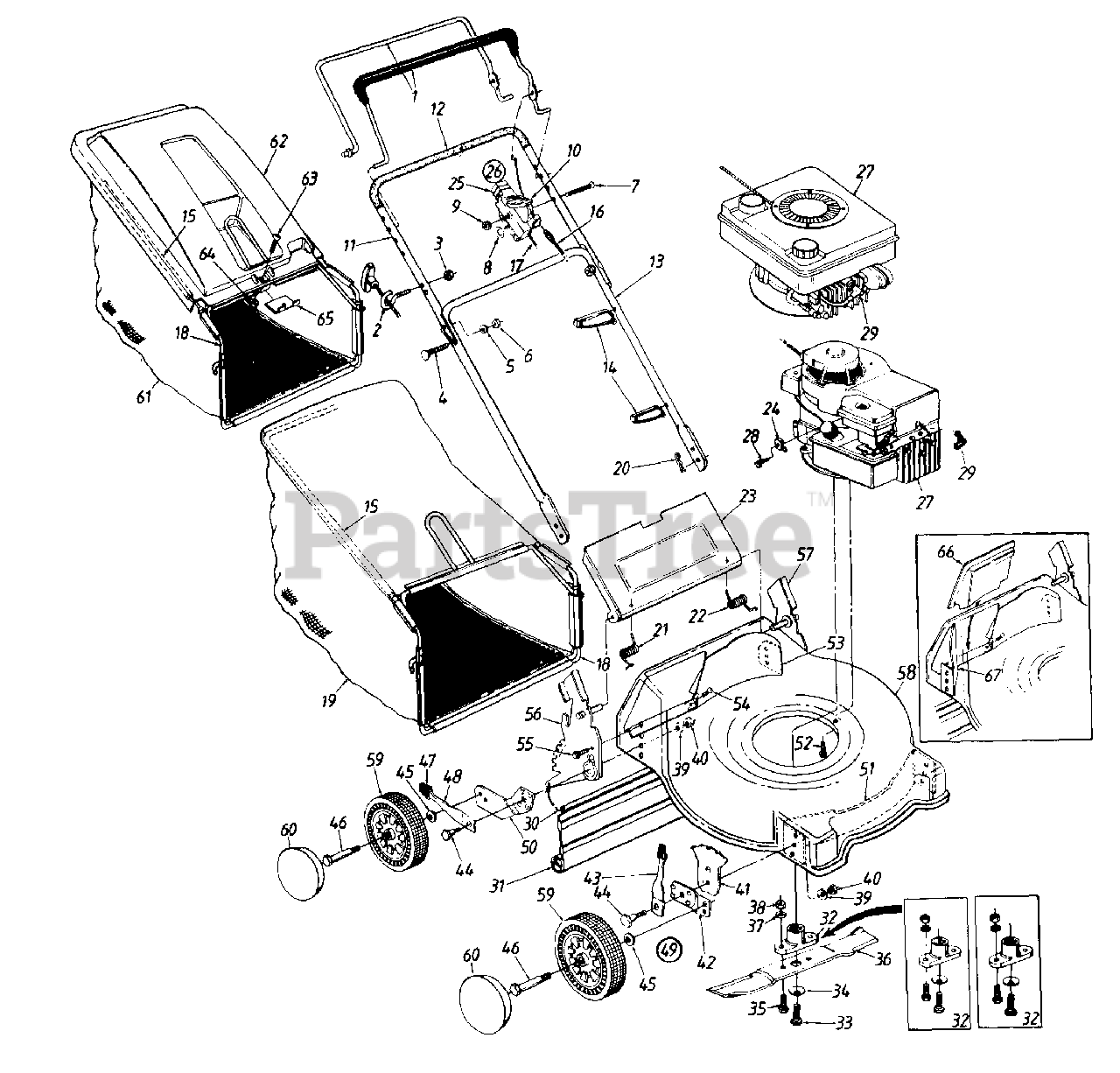

Engine, Handle And Grass Bag Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y. (Std.)
(Superseded to 747-0824B-0637)

Note: New Part

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y. w/Plastic
(Superseded to 747-0824B-0637)

Note: New Part

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

4

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

5

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0605

Oval C-Sunk Mach. Scr.

Note: New Part

$4.49

$

In Stock, only 2 left!

0

8

MTD 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

Note: New Part

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: New Part

$8.49

$

In Stock, only 3 left!

0

11

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Note: New Part

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

Note: For models (400R, 402R, 410R, 412R, 420R, 422R)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0552

Control Cable - 49"
(Superseded to 946-0552)

Note: For models (403R, 405R, 413R, 415R, 423R,425R)

$41.99

$

Usually ships in 3-6 days

0

MTD 746-0553

Control Cable - 36"
(Superseded to 946-0553)

Note: For models (404R, 406R, 408R, 414R, 416R, 418R, 424R, 426R, 428R)

$24.99

$

Usually ships in 3-6 days

0

17

MTD 746-0842

Throttle Control Wire - 51"
(Superseded to 946-0671A)

Note: New Part; For models (400R, 402R, 410R, 412R, 420R, 422R)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0845

Throttle Control Wire - 45"
(Superseded to 946-1115)

Note: New Part; For models (403R, 405R, 413R, 415R,423R, 425R)

$28.99

$

In Stock, only 1 left!

0

MTD 746-0843

Throttle Control Wire - 55"
(Superseded to 946-0671A)

Note: For models (404R, 406R, 408R, 414R,416R, 418R, 424R, 426R,428R); New Part

$14.99

$

Usually ships in 3-6 days

0

18

MTD 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 764-0309

Grass Bag
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

20

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

22

MTD 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

23

MTD 782-7000

Rear Discharge Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

MTD 751-0568

Cable Clamp (B&S)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

25

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

Note: New Part

$9.49

$

In Stock, only 3 left!

0

26

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: New Part;(Incl. Ref. 7,8, 9, 10,25); New Part

$36.99

$

In Stock, only 1 left!

0

27

Engine

$

$

Not available

28

MTD 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B&S)

$4.49

$

Usually ships in 3-6 days

0

29

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

Note: New Part

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

MTD 753-0484

Blade Adapter Kit

Note: (Keyed)

$23.99

$

In Stock, only 1 left!

0

MTD 753-0485

Blade Adapter Kit

Note: (Splined)

$46.99

$

Usually ships in 3-6 days

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

Note: (Used w/Keyed Adapter)

$3.99

$

Usually ships in 3-6 days

0

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Note: (Used w/Splined Adapter)

$9.99

$

In Stock, only 1 left!

0

34

MTD 736-0452

Bell-Wash..39" I.D.

Note: (Used w/Keyed Adapter)

$4.99

$

In Stock, Qty 5

0

MTD 736-0453

Bell-Wash..46" I.D.
(Superseded to 936-0453)

Note: (Used w/Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

35

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

36

MTD 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

MTD 742-0563

21" Mulching Blade
(Superseded to 942-0721)

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

37

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

38

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

MTD 736-0356

Bell-Wash..39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

41

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

MTD 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

45

MTD 736-0105

Bell-Wash..38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

Axle Bolt

$

$

Not available

47

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 732-0417A

Spring Lever

$

$

Not available

49

MTD 14578

Height Adj. Ass'y. Comp.- R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

50

MTD 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

51

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 710-0654

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

53

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

55

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

56

MTD 682-0503

Handle Brkt. Ass'y.- R.H.
(Superseded to 682-0516-0637)

$

$

Not available

57

MTD 682-0502

Handle Brkt. Ass'y.- L.H.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

MTD 782-0310

21" R.D. Deck

Variations

MTD 782-0310-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0310-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0310-0499

No Longer Available DECK ASM - CUB BEIGE (0499)

$

$

Not available

MTD 782-0310-0629

No Longer Available DECK ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0310-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0310-0648

No Longer Available DECK ASM - TECH GRAY (0648)

$

$

Not available

MTD 782-0310-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0310-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0310-0671

No Longer Available DECK ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 782-0310-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

59

Wheel Ass'y. Comp.

$

$

Not available

60

Hub Cap

$

$

Not available

61

MTD 764-0433

Grass Bag
(Superseded to 964-0433)

Note: New Part

$

$

Not available

62

MTD 731-1322

Hard Top Cover
(Superseded to 731-1876)

Note: New Part

$

$

Not available

63

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

64

MTD 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

65

MTD 782-9011

Mounting Bracket
(Superseded to 782-9011-0637)

Note: New Part

Variations

MTD 782-9011-0637

BRACKET-MTG - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

66

MTD 782-5007

Mulching Baffle Plug
(Superseded to 782-5007C)

Note: New Part; (Optional); New Part

Variations

MTD 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Note: New Part; (Optional); New Part

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0
