06-984983 (122-440R372) - Hechinger Walk-Behind Mower (1992) Front Bearing Assembly Parts Diagram

Walk-Behind Mower

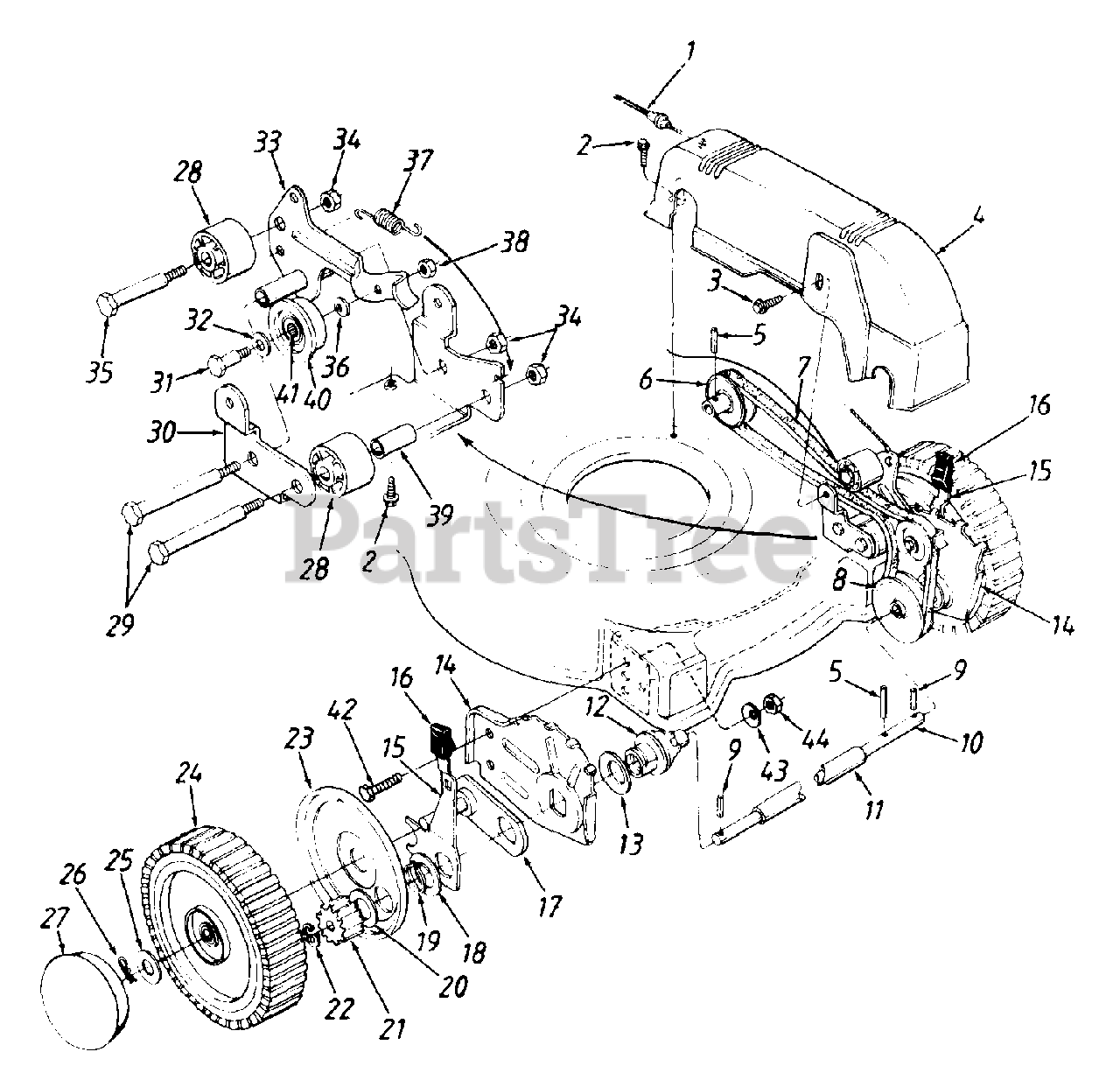

Front Bearing Assembly Parts Diagram

  • Title

1

MTD 746-0906

Cable 44.75" Lg.
(Superseded to 946-0906)

Note: New Part

$55.99

$

Usually ships in 3-6 days

0

2

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 7

0

4

MTD 782-7550

Belt Cover
(Superseded to 982-7550)

Note: New Part

$

$

Not available

5

MTD 715-0246

Spring Pin 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

6

MTD 756-0963

3/8" "V"-Pulley 2.75" O.D.

Note: New Part

$

$

Not available

7

MTD 754-0271

"V"-Belt
(Superseded to 954-0271)

$28.99

$

Usually ships in 3-6 days

0

8

756-0964

3/8" "V"-Pulley 2.44" O.D.

Note: New Part

$

$

Not available

9

MTD 715-0159

Spring Pin 3/16" Dia. x .875" Lg.

Note: New Part

$

$

Not available

10

MTD 738-0872

Front Axle
(Superseded to 738-0953)

Note: New Part

$

$

Not available

11

MTD 731-1361

Axle Shroud

Note: New Part

$

$

Not available

12

MTD 682-0015

Front Bearing Ass'y.
(Superseded to 982-0015)

Note: New Part

$31.99

$

Usually ships in 3-6 days

0

13

MTD 736-0447

Wave Wash. 1" I.D. x 1.5"

$4.49

$

In Stock, Qty 20+

0

14

MTD 782-0512

Height Adj. Plate - R.H.
(Superseded to 782-0512B-0637)

Note: New Part

$22.99

$

In Stock, only 1 left!

0

MTD 782-0511

Height Adj. Plate - L.H.
(Superseded to 782-0511A-0637)

Note: New Part

$

$

Not available

15

MTD 732-0706

Spring Lever - R.H.

Note: New Part

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Spring Lever - L.H.

Note: New Part

$15.99

$

In Stock, only 1 left!

0

16

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

17

MTD 682-0509

Height Adj. Pivot Plate Ass'y.

$

$

Not available

18

MTD 736-0474

DD Washer 1.5" O.D.

Note: New Part

$6.99

$

In Stock, only 3 left!

0

19

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

20

UNKNOWN

$

$

Not available

21

MTD 748-0357

14-T Spur Gear

Note: New Part

$

$

Not available

22

MTD 716-0104

E-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

23

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

Note: New Part

$5.49

$

In Stock, Qty 20+

0

24

MTD 634-0021

Front Wheel Ass'y.
(Superseded to 734-04223A)

Note: New Part

$55.99

$

In Stock, Qty 20+

0

25

MTD 736-3013

Fl-Wash..531" I.D. x 1" O.D.

$4.49

$

In Stock, only 3 left!

0

26

MTD 714-0104

Hairpin Clip 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

27

MTD 720-0249

Hub Cap
(Superseded to 920-0249)

$

$

Not available

28

MTD 656-0010

Idler Ass'y.
(Superseded to 956-0010)

Note: New Part

$

$

Not available

29

MTD 738-0873

Shld. Bolt .374" Dia. x 1.94"

$

$

Not available

30

MTD 782-7524

Idler Pivot Brkt.

Note: New Part

Variations

MTD 782-7524-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 738-0826

Shld. Bolt .375" Dia. x .4"

$12.99

$

In Stock, only 1 left!

0

32

MTD 736-0344

Fl-Wash..39" I.D. x 1" O.D.

$4.99

$

In Stock, Qty 20+

0

33

MTD 682-0014

Idler Brkt. Ass'y.

Note: New Part

Variations

MTD 682-0014-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

35

MTD 738-0572

Shld. Bolt 3/8" Dia. x 1.16"

$7.99

$

Usually ships in 3-6 days

0

36

MTD 736-0270

Bell-Wash..265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

37

MTD 732-0709

Spring Extension 1.29" Lg.

Note: New Part

$

$

Not available

38

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

39

MTD 750-0807

Spacer 385" I.D x 625" O.D

$6.49

$

Usually ships in 3-6 days

0

40

MTD 756-0558

Fl-Idler 1.5" O.D.
(Superseded to 956-0558)

$11.99

$

In Stock, Qty 5

0

41

MTD 741-0556

Needle Brg..375" I.D.

$17.99

$

In Stock, Qty 5

0

42

MTD 736-0331

Bell-Wash..39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

43

UNKNOWN

$

$

Not available

44

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0
