06-984074 (112-082R372) - Hechinger Walk-Behind Mower (1992) Handle And Engine Assembly Parts Diagram

Walk-Behind Mower

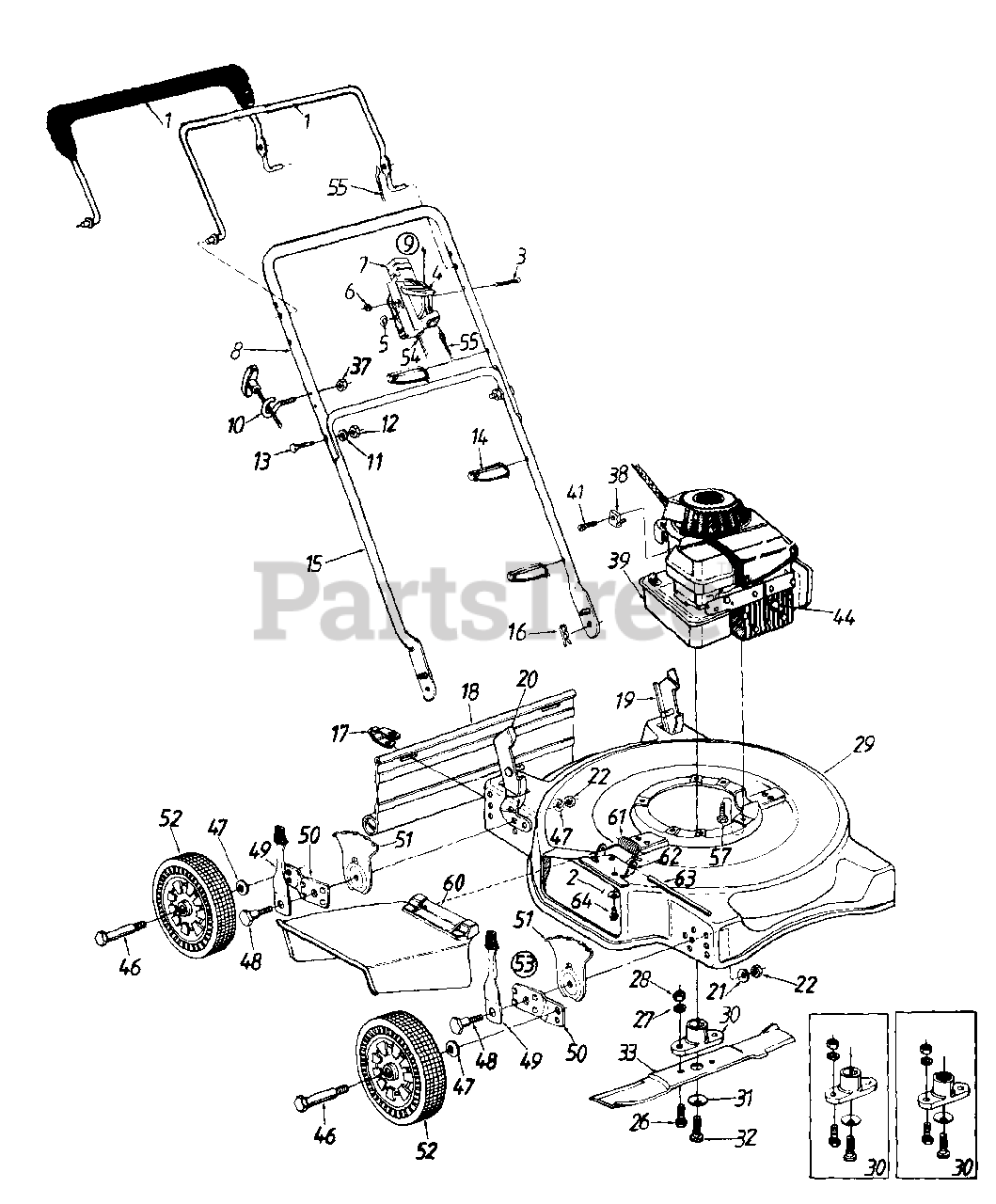

Handle And Engine Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: New Part; (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y. w/Plastic
(Superseded to 747-0824B-0637)

Note: New Part

$65.99

$

In Stock, only 1 left!

0

2

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0605

Oval C-Sunk Mach. Scr.

Note: New Part

$4.49

$

In Stock, only 2 left!

0

4

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: New Part

$8.49

$

In Stock, only 3 left!

0

5

736 0501

Spr. Wash..66" I.D.

Note: New Part

$

$

Not available

6

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

7

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

Note: New Part

$9.49

$

In Stock, only 3 left!

0

8

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Note: New Part

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: New Part; (Incl. Ref. 3, 4, 5, 6, 7)

$36.99

$

In Stock, only 1 left!

0

10

MTD 747-1205

Rope Guide
(Superseded to 710-1205)

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

MTD 17189

Handle Bracket Ass'y.- L.H.

$

$

Not available

20

MTD 17188

Handle Bracket Ass'y.- R.H.

$

$

Not available

21

MTD 736-0356

Bell-Wash..39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 12

0

26

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.99

$

Usually ships in 3-6 days

0

27

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0241

Hex Nut 3/8-24 Thd.

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 13

0

29

MTD 17036

20" Deck Ass'y.

Note: Code 638

Variations

MTD 17036-0480

No Longer Available DECK ASM - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17036-0483

No Longer Available DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17036-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17036-0629

No Longer Available DECK ASSEMBLY-20IN - SILVER FLAKE (0629)

$

$

Not available

MTD 17036-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17036-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 17046

22" Deck Ass'y.
(Superseded to 97046)

Note: Code 638

$197.99

$

Usually ships in 3-6 days

0

30

MTD 753-0484

Blade Adapter Kit

Note: (Keyed)

$23.99

$

In Stock, only 1 left!

0

MTD 753-0485

Blade Adapter Kit

Note: (Splined)

$46.99

$

Usually ships in 3-6 days

0

31

MTD 736-0452

Bell-Wash..39" I.D.

Note: (Used w/Keyed Adapter)

$4.99

$

In Stock, Qty 5

0

MTD 736-0453

Bell-Wash..46" I.D.
(Superseded to 936-0453)

Note: (Used w/Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

Note: (Used w/Keyed Adapter)

$3.99

$

In Stock, only 2 left!

0

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Note: (Used w/Splined Adapter)

$9.99

$

In Stock, only 1 left!

0

33

MTD 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

37

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

38

MTD 751-0568

Cable Clamp
(Superseded to BS-690798)

Note: New Part;(B&S)

$5.49

$

In Stock, only 1 left!

0

39

Engine

$

$

Not available

41

MTD 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg.

Note: New Part;(B&S)

$4.49

$

Usually ships in 3-6 days

0

44

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

MTD 738-0144

Axle Bolt
(Superseded to 938-0144)

$

$

Not available

MTD 710-1020

Axle Bolt

$

$

Not available

47

MTD 736-0105

Bell-Wash..400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-1698

Wheel Ass'y. Comp. Diamond Tread (7")

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$

$

Not available

MTD 734-1667

Wheel Ass'y. Comp. Diamond Tread (8")

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$

$

Currently unavailable

MTD 734-1161A

Wheel Ass'y. Comp. Waffle Tread (7")

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$

$

Not available

MTD 734-1162A

Wheel Ass'y. Comp. Waffle Tread (8")

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$

$

Not available

MTD 734-1512A

Wheel Ass'y. Comp. "S" Wave Tread (8")
(Superseded to 734-1826)

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$33.99

$

In Stock, Qty 9

0

MTD 734-1169

Wheel Ass'y. Comp. Rib Tread (8")
(Superseded to 734-04585)

Note: Use Axle Bolt P/N 738-0144, w/o Bearings

$20.99

$

In Stock, only 1 left!

0

MTD 734-1609

Wheel Ass'y. Comp. Bar Tread (7")

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$

$

Not available

MTD 634-0020

Wheel Ass'y. Comp. Bar Tread (8 x 1.75")

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$39.99

$

In Stock, Qty 6

0

MTD 734-1608

Wheel Ass'y. Comp. Bar Tread (8 x 2")
(Superseded to 734-1781)

Note: Use Axle Bolt P/N 738-0102, w/o Bearings

$32.99

$

In Stock, Qty 7

0

MTD 734-1513B

Wheel Ass'y. Comp. "S" Wave Tread (Gray)
(Superseded to 753-08093)

Note: Use Axle Bolt P/N 738-0102, w/Bearings. Use Ball Brg. P/N 741-0180 (2 per Wheel)

$45.99

$

In Stock, Qty 5

0

MTD 734-1517B

Wheel Ass'y. Comp. "S" Wave Tread (Beige)

Note: Use Axle Bolt P/N 738-0102, w/Bearings. Use Ball Brg. P/N 741-0180 (2 per Wheel)

$68.99

$

Usually ships in 3-6 days

0

MTD 734-1259

Wheel Ass'y. Comp. "T" Tread

Note: Use Axle Bolt P/N 738-1020, w/Bearings. Use Ball Brg. P/N 741-0267, 741-0484 & Spacer P/N 750-0434

$

$

Not available

MTD 734-1260

Wheel Ass'y. Comp. "T" Tread

Note: Use Axle Bolt P/N 738-0102, w/Bearings. Use Ball Brg. P/N 741-0180 (2 per Wheel)

$

$

Not available

MTD 734-0645

Wheel Ass'y. Comp. Waffle

Note: Use Axle Bolt P/N 738-1020, w/Bearings. Use Ball Brg. P/N 741-0267 & 741-0484 (2 per Wheel) & Spacer P/N 750-0434

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp.- R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0842

Throttle Control Wire - 51" Lg.
(Superseded to 946-0671A)

Note: New Part;

$14.99

$

In Stock, only 3 left!

0

MTD 746-0843

Throttle Control Wire - 55" Lg.
(Superseded to 946-0671A)

Note: New Part

$14.99

$

In Stock, only 3 left!

0

MTD 746-0845

Throttle Control Wire-5" Lg.
(Superseded to 946-1115)

Note: New Part

$28.99

$

In Stock, only 1 left!

0

55

MTD 746-0550

Control Cable - 39" Lg.
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0557

Control Cable - 47"
(Superseded to 946-0557)

$26.99

$

In Stock, only 1 left!

0

MTD 746-0737

Control Cable - 51"
(Superseded to 946-0737)

$28.99

$

In Stock, only 4 left!

0

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

60

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

61

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

62

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

63

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

64

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

MTD 731-0981A

Hub Cap Gray (5-1/2" Dia)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

In Stock, only 2 left!

0

MTD 731-0982A

Hub Cap Beige (5-1/2" Dia)
(Superseded to 731-0982C)

Note: Optional

$11.99

$

In Stock, Qty 18

0

MTD 720-0249

Hub Cap Gray (3-1/2" Dia)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

MTD 720-0251

Hub Cap Black (1-1/2" Dia)

Note: Optional

$

$

Not available

MTD 731-0342

Hub Cap Red (1-3/8" Dia)

Note: Optional

$

$

Not available

MTD 731-0124

Hub Cap Red (With 4 Tabs)

Note: Optional

$

$

Not available

MTD 731-0354

Hub Cap Black (With 4 Tabs)

Note: Optional

$

$

Not available
