06-48BS01 - Toro 48" Snow Blade (SN: 020000001 - 029999999) (1992) BLADE ASSEMBLY Parts Diagram

48" Snow Blade

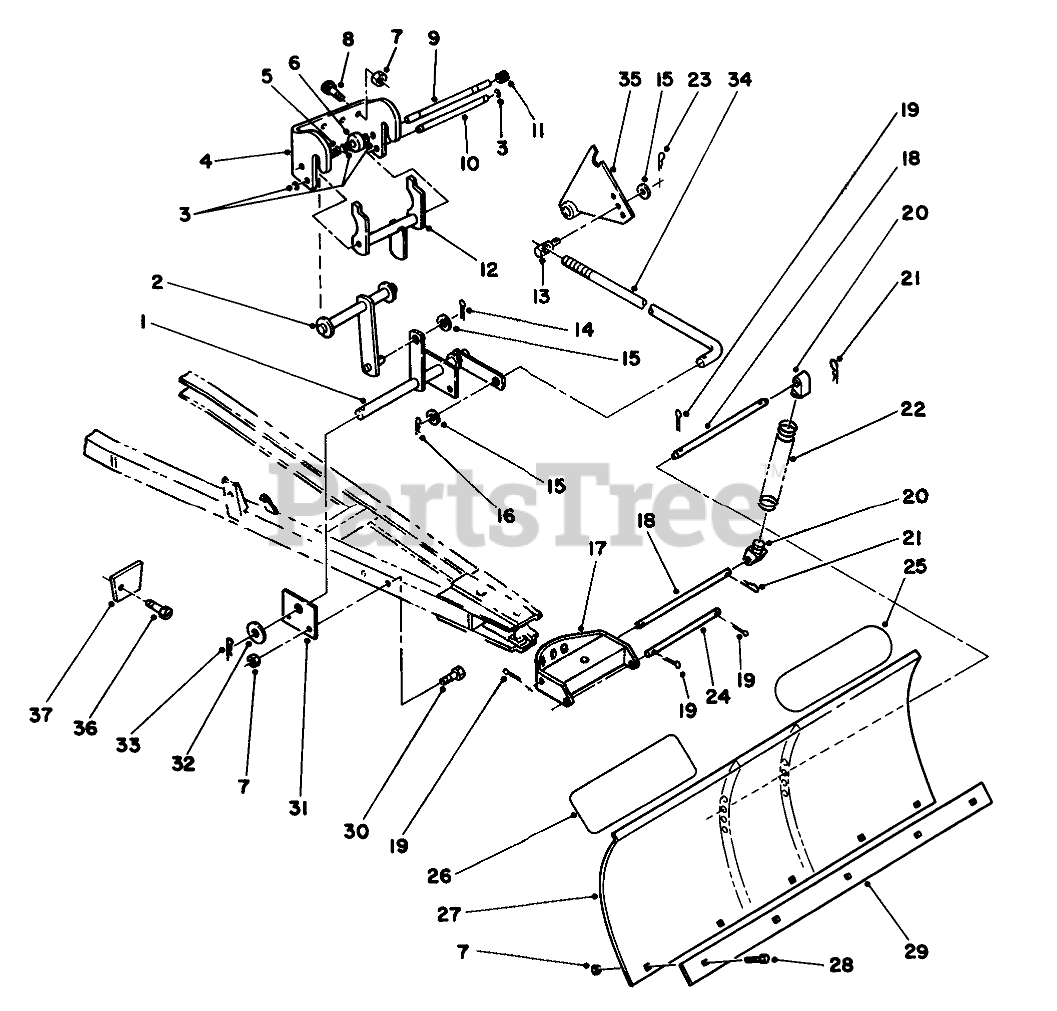

BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 79-5460

Lift Arm
(Superseded to 79-5460-01)

$

$

Not available

2

Toro 79-5430

Arm
(Superseded to 79-5430-03)

$

$

Not available

3

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

4

Toro 78-1720

Housing-Front Hitch
(Superseded to 78-1720-01)

$115.99

$

Usually ships in 3-6 days

0

5

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

6

$

$

Not available

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

10

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

11

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

12

Toro 105859

Assy-Latch
(Superseded to 93-1613)

$

$

Not available

13

Toro 7736

STUD-TRUNION

$

$

Not available

14

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

17

Toro 78-8760

Decal
(Superseded to 78-8760-01)

$244.99

$

Usually ships in 3-6 days

0

18

Toro 5120

ROD-PIVOT, BLADE

$60.99

$

Usually ships in 3-6 days

0

19

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Toro 5125

Lug

$

$

Not available

21

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

22

Toro 5117

Spring
(Superseded to 105-1386-03)

$129.99

$

Usually ships in 3-6 days

0

23

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

24

Toro 4564

ROD-LOWER

$39.99

$

Usually ships in 3-6 days

0

25

Toro 117516

Decal
(Superseded to 76-1330)

$9.99

$

In Stock, only 1 left!

0

26

Toro 113915

DECAL-DANGER

$

$

Not available

27

Toro 78-1330

Blade
(Superseded to 78-1330-01)

$468.99

$

Usually ships in 3-6 days

0

28

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 109596

Blade Edge Plate
(Superseded to 93-1612-03)

$53.99

$

Usually ships in 3-6 days

0

30

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 79-5490

Plate
(Superseded to 79-5490-01)

$

$

Not available

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

33

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

34

$117.99

$

In Stock, only 1 left!

0

35

Toro 79-5510

Plate
(Superseded to 105-1384-03)

$129.99

$

Usually ships in 3-6 days

0

36

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

37

Toro 79-4770

Stop-Steering Spindle
(Superseded to 79-4770-01)

$

$

Not available
