06-48BC03 - Toro 48" Snow/Dozer Blade (SN: 020000001 - 029999999) (1992) FRAME & BLADE ASSEMBLY Parts Diagram

48" Snow/Dozer Blade

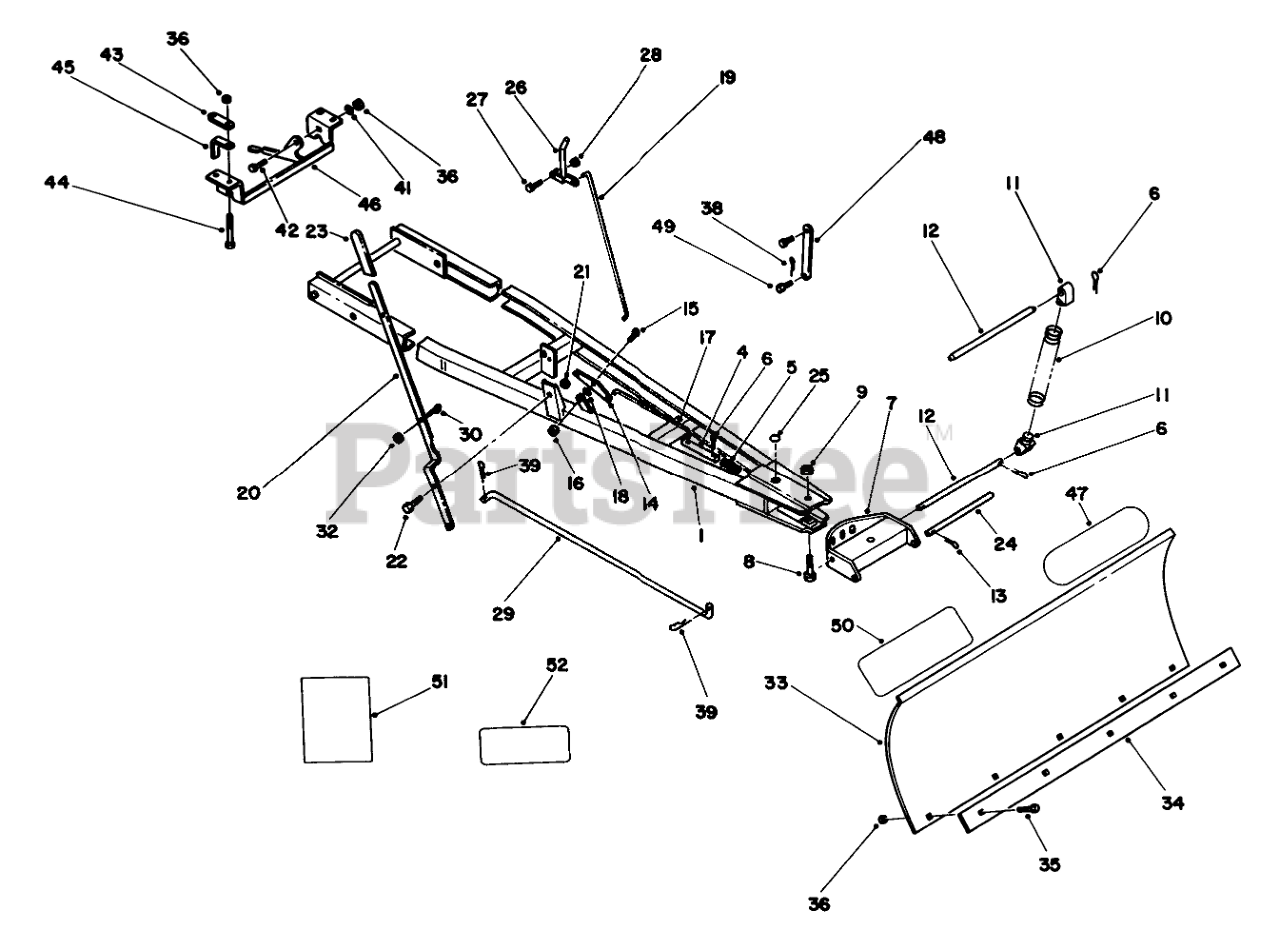

FRAME & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 108567

Frame Assembly (Incl. Ref. #4-6)

$

$

Not available

4

Toro 5127

Index Pin

$

$

Not available

5

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

6

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

7

Toro 78-8760

Decal
(Superseded to 78-8760-01)

$244.99

$

Usually ships in 3-6 days

0

8

Toro 908256

Bolt
(Superseded to 3216-7)

$21.99

$

Usually ships in 3-6 days

0

9

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

10

Toro 5117

Spring
(Superseded to 105-1386-03)

$129.99

$

Usually ships in 3-6 days

0

11

Toro 5125

Lug

$

$

Not available

12

Toro 5120

ROD-PIVOT, BLADE

$60.99

$

Usually ships in 3-6 days

0

13

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

14

Toro 3770

Index Plate
(Superseded to 92-7037)

$

$

Not available

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

17

Toro 3771

Head-Cylinder

$24.99

$

In Stock, only 1 left!

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 104341

UPPER INDEX ROD

$

$

Not available

20

Toro 104340

Index Lever
(Superseded to 94-6686-01)

$90.99

$

Usually ships in 3-6 days

0

21

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 20+

0

22

Toro 908057

Bolt
(Superseded to 325-4)

$1.49

$

In Stock, only 2 left!

0

23

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

24

Toro 4564

ROD-LOWER

$39.99

$

Usually ships in 3-6 days

0

25

Toro 4944

PLUG

$8.99

$

Usually ships in 3-6 days

0

26

Toro 5107

INDEX LEVER

$

$

Not available

27

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

29

Toro 104338

ROD

$121.99

$

Usually ships in 3-6 days

0

30

Toro 108566

EYEBOLT

$7.49

$

Usually ships in 3-6 days

0

32

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

33

Toro 78-1330

Blade
(Superseded to 78-1330-01)

$468.99

$

Usually ships in 3-6 days

0

34

Toro 109596

Blade Edge Plate
(Superseded to 93-1612-03)

$53.99

$

Usually ships in 3-6 days

0

35

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

36

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

38

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

39

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

40

Toro 104657

PLATE-LATCHING

$42.99

$

Usually ships in 3-6 days

0

41

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

42

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

43

Toro 3697

BRACKET-REAR LINK MOUNTING

$34.99

$

Usually ships in 3-6 days

0

44

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

$5.49

$

In Stock, Qty 12

0

45

Toro 7713

SPACER-BRACKET

$

$

Not available

46

Toro 104659

Bracket
(Superseded to 104659-01)

$199.99

$

Usually ships in 3-6 days

0

47

Toro 76-1330

DECAL - REAR FRAME

$9.99

$

In Stock, only 1 left!

0

48

Toro 105052

LINK-LIFT

$32.99

$

In Stock, only 3 left!

0

49

Toro 932962

Pin
(Superseded to 9329624)

$

$

Not available

50

Toro 113915

DECAL-DANGER

$

$

Not available

51

Toro 810746

OPERATOR'S-MANUAL

$3.23

$

Usually ships in 3-6 days

0

52

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

Toro 117424

Shoe-Skid (Optional)(Incl. 900063 Bolt Qty 4, 920039 Washer Qty 4, & 915663 Nut Qty 4)
(Superseded to 117424-03)

$

$

Not available

Toro 7706

Link-Long (Optional)(Incl. 933505 Hairpin Cotter Qty 2)
(Superseded to 7706-01)

$

$

Not available

Toro 803321

Loose Parts Assembly (Incl Ref. #6, 8-9, 13-16, 18, 21-22, 26-28, 38-45 48-49)
(Superseded to 406294)

$

$

Not available
