06-48BC02 - Toro 48" Snow/Dozer Blade (1990) SNOW/DOZER BLADE-48 IN. (122 CM) VEHICLE IDENTIFICATION NUMBER-0648BC02 Parts Diagram

48" Snow/Dozer Blade

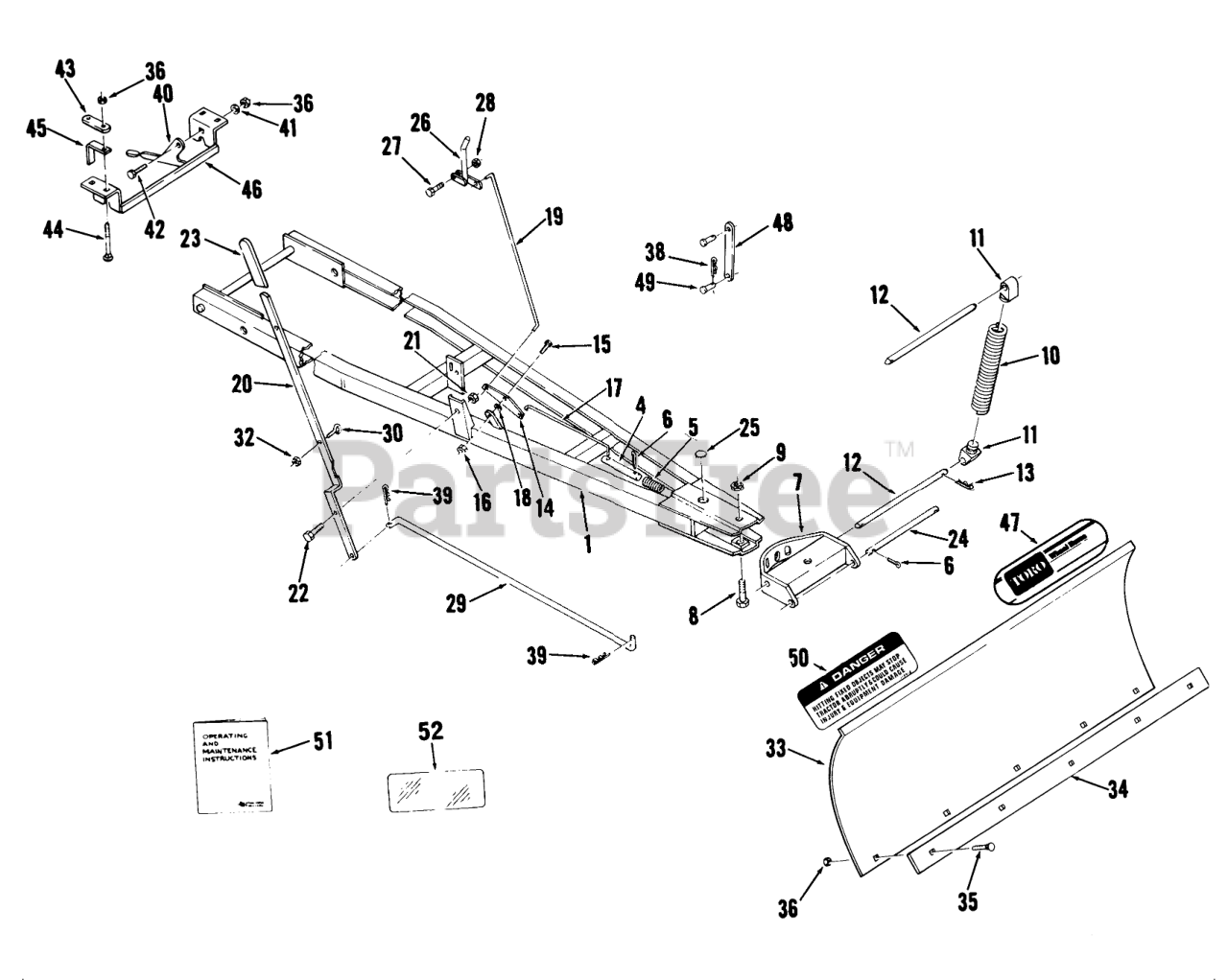

SNOW/DOZER BLADE-48 IN. (122 CM) VEHICLE IDENTIFICATION NUMBER-0648BC02 Parts Diagram

  • Title

1

Toro 108567

Frame Assembly (Includes Reference #4, 5, 6)

$

$

Not available

4

Toro 5127

Index Pin

$

$

Not available

5

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

6

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$0.99

$

Usually ships in 3-6 days

0

7

Toro 103475

Sector and Channel
(Superseded to 78-8760-01)

$239.99

$

Usually ships in 3-6 days

0

8

Toro 908256

Bolt
(Superseded to 3216-7)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$21.99

$

Usually ships in 3-6 days

0

9

Toro 915640

Nut
(Superseded to 3296-15)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$2.99

$

In Stock, Qty 7

0

10

Toro 5117

Spring
(Superseded to 105-1386-03)

$120.99

$

Usually ships in 3-6 days

0

11

Toro 5125

Lug

$

$

Not available

12

Toro 5120

ROD-PIVOT, BLADE

$53.99

$

Usually ships in 3-6 days

0

13

Toro 933512

Hairpin
(Superseded to 9335124)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$2.99

$

In Stock, Qty 5

0

14

Toro 3770

Index Plate
(Superseded to 92-7037)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$28.99

$

Usually ships in 3-6 days

0

15

Toro 908034

BOLT
(Superseded to 323-6)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$2.49

$

In Stock, Qty 20+

0

16

Toro 915663

NUT
(Superseded to 3296-39)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$2.99

$

In Stock, Qty 20+

0

17

Toro 3771

Head-Cylinder

$23.99

$

In Stock, only 1 left!

0

18

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$0.99

$

In Stock, Qty 20+

0

19

Toro 104341

UPPER INDEX ROD

$

$

Not available

20

Toro 104340

Index Lever
(Superseded to 94-6686-01)

$77.99

$

Usually ships in 3-6 days

0

21

Toro 915238

Jam Nut
(Superseded to 3218-5)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$1.49

$

In Stock, Qty 20+

0

22

Toro 908057

Bolt
(Superseded to 325-4)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$1.49

$

In Stock, only 2 left!

0

23

Toro 5359

GRIP

$9.49

$

Usually ships in 3-6 days

0

24

Toro 4564

ROD-LOWER

$34.99

$

Usually ships in 3-6 days

0

25

Toro 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

26

Toro 5107

INDEX LEVER

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$

$

Not available

27

Toro 908005

Bolt
(Superseded to 321-6)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$0.99

$

In Stock, Qty 20+

0

28

Toro 915111

Nut
(Superseded to 3217-5)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$0.99

$

In Stock, Qty 8

0

29

Toro 104338

ROD

$104.99

$

Usually ships in 3-6 days

0

30

Toro 108566

EYEBOLT

$7.49

$

Usually ships in 3-6 days

0

32

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

33

Toro 109593

Blade
(Superseded to 78-1330-01)

$456.99

$

Usually ships in 3-6 days

0

34

Toro 109596

Blade Edge Plate
(Superseded to 93-1612-03)

$45.99

$

In Stock, only 3 left!

0

35

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

36

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

38

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$1.99

$

In Stock, Qty 20+

0

39

Toro 933512

Hairpin
(Superseded to 9335124)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$2.99

$

In Stock, Qty 5

0

40

Toro 104657

PLATE-LATCHING

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$36.99

$

Usually ships in 3-6 days

0

41

Toro 920009

Washer
(Superseded to 3256-24)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$0.99

$

In Stock, Qty 20+

0

42

Toro 908034

BOLT
(Superseded to 323-6)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$2.49

$

In Stock, Qty 20+

0

43

Toro 3697

BRACKET-REAR LINK MOUNTING

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$33.99

$

Usually ships in 3-6 days

0

44

Toro 900073

Bolt-Carriage
(Superseded to 3231-11)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$5.49

$

In Stock, only 2 left!

0

45

Toro 7713

SPACER-BRACKET

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$

$

Not available

46

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

47

Toro 117516

Decal
(Superseded to 76-1330)

$9.99

$

In Stock, only 1 left!

0

48

Toro 105052

LINK-LIFT

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$32.99

$

In Stock, only 3 left!

0

49

Toro 932962

Pin
(Superseded to 9329624)

Note: Indicates Part of "A" Frame Loose Parts Package 803321.

$

$

Not available

50

Toro 113915

DECAL-DANGER

$

$

Not available

51

Toro 810280R1

Operating and Maintenance Instructions

$

$

Currently unavailable

52

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0
