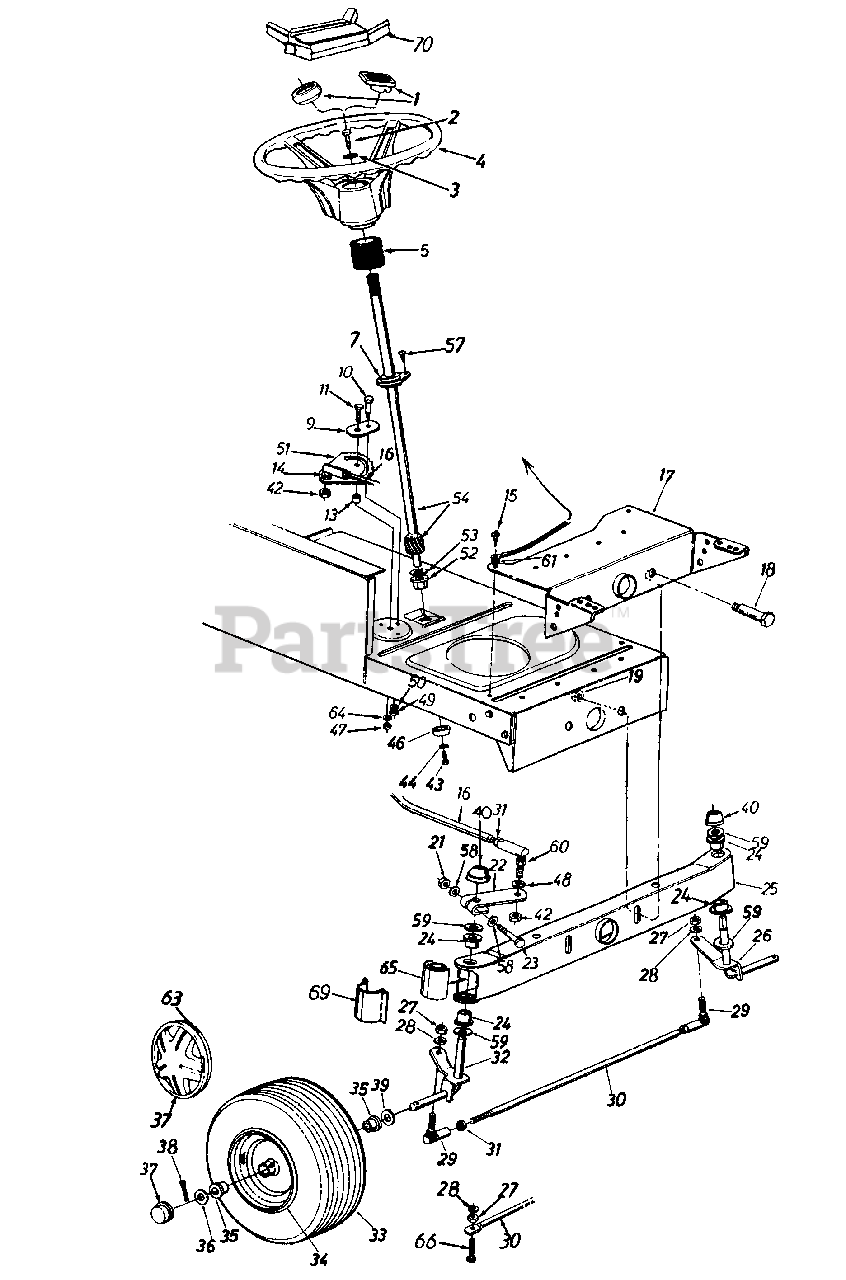

06-474878 (136M675G372) - Hechinger Lawn Tractor (1996) Steering Assembly, Axle, Front Wheels Parts Diagram

Lawn Tractor

Steering Assembly, Axle, Front Wheels Parts Diagram

  • Title

1

MTD 931-0220

Steering Wheel Cap

$9.49

$

In Stock, only 2 left!

0

1

MTD 731-1459A

Steering Wheel Cap (Sq.- MTD)

$8.49

$

Usually ships in 3-6 days

0

1

MTD 731-1460

Steering Wheel Cap (Square - No Logo)

Note: NLA

$

$

Not available

2

MTD 710-0643

Hex Bolt 5/16-18 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

3

MTD 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 931-1693

Steering Wheel (3 Spoke)
(Superseded to 931-0027A)

Note: Uses Round Steering Wheel Cap

$97.99

$

Usually ships in 3-6 days

0

4

MTD 931-1687

Steering Wheel (3 Spoke)

Note: Uses Square Steering Wheel Cap

$53.99

$

Usually ships in 3-6 days

0

4

MTD 931-0027

Steering Wheel (4 Spoke)
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

5

MTD 731-0559B

Steering Bellow - 4.5"

$

$

Not available

5

MTD 931-0954

Steering Bellow - 9"

$21.99

$

Usually ships in 3-6 days

0

5

MTD 731-1542

Steering Bellow - 3.25"

Note: NLA

$

$

Not available

7

MTD 741-0587

Flange Bearing .628" I.D. x 1.36 O.D.

$4.49

$

In Stock, Qty 10

0

9

MTD 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, only 3 left!

0

9

MTD 783-04644P

Retainer Plate
(Superseded to 783P08577A)

Note: replaces 17198A

$7.49

$

In Stock, only 3 left!

0

10

MTD 938-0141

Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd.

$7.49

$

In Stock, Qty 7

0

11

MTD 710-1039

Hex Bolt 3/8-24 x 1.0" Lg. (Gr. 5)

$4.49

$

In Stock, only 3 left!

0

13

MTD 950-0535

Spacer .380" I.D. x .625" O.D. x .227

$4.49

$

In Stock, only 4 left!

0

14

MTD 936-0217

L-Wash. 3/8" I.D. (H.D.)
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

15

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

MTD 753-0654

Drag Link Kit

Note: 9/15/95-3/4/96 Manufacture Date

$85.99

$

In Stock, only 2 left!

0

16

MTD 911-1107

Steering Drag Link

Note: 3/4/96-2/4/02 Manufacture Date

$39.99

$

In Stock, only 1 left!

0

16

MTD 747-1268B

Steering Drag Link 7/16-20

Note: 2/4/02 & After

$

$

Not available

17

MTD 783-0041C

Front Pivot Brkt.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0041C-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

MTD 783-0041C-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0041C-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0041C-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0041C-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0041C-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

18

MTD 938-0527

Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd.
(Superseded to 738-0527)

$8.49

$

In Stock, Qty 6

0

19

MTD 912-0431

Flanged L- Nut 3/8-16 Thd.

$4.99

$

In Stock, Qty 20+

0

21

MTD 912-0411

Hex L-Nut 5/16-24 Thd.
(Superseded to 712-0411)

$

$

Not available

22

MTD 983-0055-0637

Steering Arm Front Axle

$47.99

$

In Stock, only 1 left!

0

23

MTD 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Gr.5)

$4.49

$

Usually ships in 3-6 days

0

24

MTD 941-0659

Hex Flg. Brg. .632 I.D.

$5.49

$

In Stock, Qty 5

0

25

MTD 683-0128B-0637

Pivot Bar Ass'y.

$97.99

$

In Stock, only 2 left!

0

26

MTD 983-0127

Front Axle Ass'y - L.H. 15" x 6" (Round Shoulder)

$101.99

$

In Stock, only 1 left!

0

26

MTD 983-0124

Front Axle Ass'y - L.H. 15" x 6" (Round Shoulder) (46" Deck)

Variations

MTD 983-0124-0637

AXLE ASM-RH W/SQUA - POWDER BLACK (0637)

$160.99

$

Usually ships in 3-6 days

0

$160.99

$

Usually ships in 3-6 days

0

27

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

29

MTD 923-3018

Ball Joint 3/8-24 Thd.

$16.99

$

In Stock, Qty 20+

0

30

MTD 747-0753

Tie Rod (Adjustable)

$34.99

$

In Stock, only 1 left!

0

30

MTD 747-0861-0637

Tie Rod (Non-Adjustable)

$30.99

$

In Stock, Qty 5

0

31

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

MTD 983-0126

Front Axle Ass'y - R.H. 15" x 6" (Round Shoulder)

$101.99

$

In Stock, only 1 left!

0

32

MTD 983-0125

Front Axle Ass'y - R.H. 15" x 6" (Round Shoulder) (46" Deck)

Variations

MTD 983-0125-0637

AXLE ASM-LH - POWDER BLACK (0637)

$160.99

$

Usually ships in 3-6 days

0

$160.99

$

Usually ships in 3-6 days

0

33

MTD 634-0056B-0911

Wheel Ass'y Comp., 15" x 6" (Round Shoulder)

$249.99

$

In Stock, only 3 left!

0

33

MTD 634-0105B

Tire Only, 15" x 6" (Round Shoulder)

Note: Not shown

Variations

MTD 634-0105B-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105B-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105B-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105B-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105B-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105B-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-0105B-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0105B-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

33

MTD 634-0105

Wheel Ass'y Comp., 15" x 6" (Round Shoulder)
(Superseded to 634-0105B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 634-0105-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0105-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

33

MTD 734-1731

Tire Only, 15" x 6" (Round Shoulder)

Note: Not shown

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

33

MTD 934-0255

Air Valve, 15" x 6" (Round Shoulder)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

33

MTD 737-0211A

Grease Fltting, 15" x 6" (Round Shoulder)

Note: Not shown

$10.99

$

Usually ships in 3-6 days

0

33

MTD 737-0212A

Grease Plug, 15" x 6" (Round Shoulder)

Note: Not shown

$

$

Not available

34

MTD 753-0838-0662

Rim Only, 15" x 6" (Round Shoulder)

$

$

Not available

35

MTD 741-0487C

Bearing, 15" x 6" (Round Shoulder)

$7.49

$

Usually ships in 3-6 days

0

36

MTD 736-0285

Fl-Wash .635 I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 9

0

37

MTD 931-0484A

Front Wheel Hub Cap

$6.49

$

In Stock, Qty 20+

0

37

MTD 731-1787

Spoked Hub Cap (Yellow)

Note: NLA

$

$

Not available

37

MTD 734-1613

Spoked Hub Cap (Gray)

Note: NLA

$

$

Not available

37

MTD 734-1612

Spoked Hub Cap (Beige)

Note: NLA

$

$

Not available

38

MTD 914-0470

Cotter Pin 1/8" Dia. x 1.25"
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

39

MTD 936-04088

Fl-Wash .640" I.D. x 1 24" O.D.
(Superseded to 736-04088)

$4.49

$

In Stock, only 2 left!

0

40

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, only 3 left!

0

42

MTD 712-0262

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-1309

Hex Patch Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

44

MTD 936-0119

L-Wash. 5/16" I D.

$4.99

$

In Stock, Qty 20+

0

45

MTD 736-0343

Fl-Wash. .33" I.D. x 1.25" 0 D

$4.49

$

In Stock, Qty 7

0

46

MTD 948-0389

Cap

$5.49

$

In Stock, Qty 20+

0

47

MTD 912-0214

Hex Cent L-Nut 3/8-24 Thd.
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

48

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

49

MTD 912-0158

Hex Cent L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 13

0

50

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

51

MTD 717-0622C

Steering Gear Segment

$53.99

$

In Stock, only 2 left!

0

52

MTD 941-0656A

Hex Flg. Brg. .634 I.D.

$5.49

$

In Stock, Qty 20+

0

53

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

MTD 738-0919A

Steering Shaft
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

57

MTD 710-0837

Oval Hd. Cr - Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 5

0

58

MTD 936-0271

Wave-Wash .32" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 10

0

59

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

60

MTD 923-0448A

Drag Link Ball Joint 7/16-20

$24.99

$

In Stock, Qty 20+

0

60

MTD 723-3018

Ball Joint Assembly
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

61

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

63

MTD 927-0425A

Spring Clip

$

$

Not available

64

MTD 936-0356

Bell-Wash. .39" I.D. x 1.38" O.D.

$

$

Not available

65

MTD 931-1291A

Pivot Bar End Cap

$15.99

$

In Stock, Qty 11

0

66

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 5)

$6.99

$

In Stock, Qty 8

0

69

MTD 731-1649

Axle Cap

$

$

Not available

70

MTD 931-0955

Steering Wheel Insert

$

$

Not available
